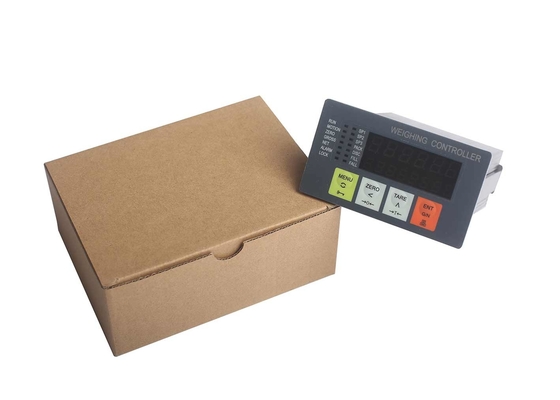

4 Key English Keypad Weighing Indicator Controller For Packing / Bagging Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | SUPMETER |
| Certification: | CE |
| Model Number: | BST106-B66[A] |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 1pcs/box |
| Delivery Time: | 2000pcs per month |
| Payment Terms: | T/T, Western Union |
|
Detail Information |
|||
| Accuracy Grade: | III | Verification Accuracy: | 0.03% |
|---|---|---|---|
| Static Weighing Accuracy: | 0.2%~0.5% | Packing Accuracy: | 0.2%~0.5% |
| Output Sensitivity Of Loadcell: | 1.0~2.5mV/V | Power Supply: | DC24V±20% |
| Highlight: | digital weighing controller,programmable weighing controller |
||
Product Description
LED Display Weighing Indicator Controller For Packing/Bagging Machine, With RS232 And RS485, Analogue Output 4~20ma
Application:
BST106-B66[A] can be widely used in packing/bagging industry, there are several modes for your option:
1. Single-hopper-weighing Mode [Single-scale Mode]
2. Double-hopper-weighing Mode [Double-scale Mode]
3. Bag-weighing Mode with Auto Bag-releasing or Manual Bag-releasing.
Main Features:
| Display | 6+8 Red LED digital tubes for English character and digit display |
| Keypad | 4-key English keypad |
| Power Supply | DC24V±20% |
| Excitation Voltage/Max. Current | DC9V/120mA [4-350Ω loadcells] |
| Output Sensitivity of Loadcell | 1.0~2.5mV/V |
| Sampling Frequency | 400Hz |
| DI | 6 Normally Open Switch Inputs |
| DO | 8 Normally Open Transistor Switch Outputs [DO]: DC24V, 250mA. |
| AO | 4~20mA, Non-linearity: 0.05%FS |
| Digital Communication | COM1: RS232; COM2: RS485 |
| Connectable | Host IPC/PLC and LED Remote Display |
| IP Grade | IP65 |
Operation Interface:
Terminal:
Demension:
|
Outline Size W×H×D[mm] |
Front Panel Size W×H[mm] |
Box Body Size W×H[mm] |
Panel Cut-out Size W×H[mm] |
| 110×62×150 | 110×62 | 93×46 | 94×47 |
Warranty:
- Warranty Period: 12 months (TWELVE MONTHS)
- If the products is fault due to unartificial reasons, and the problems can not be solved by customers under the technical support of SUPMETER, then please sent back the product, SUPMETER will mend it for you or send a new one to you for replace for free.
