Medicine Bottle Filling Machine Indicator, Liquid Filling Weighing Controller CE Certified
Product Details:
| Place of Origin: | China |
| Brand Name: | Supmeter |
| Certification: | CE |
| Model Number: | BST106-M10(FL) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | 210-330usd/pcs |
| Packaging Details: | 1pcs/box |
| Delivery Time: | 3-10 working days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 5000pcs/month |
|
Detail Information |
|||
| Product Name: | TFT-Touch Screen Filling Controller | Model Number: | BST106-M10(FL) |
|---|---|---|---|
| MOQ: | 1pcs | Material: | Steel |
| Input: | 9DI | Output: | 18DO |
| High Light: | digital weighing controller,programmable weighing controller |
||
Product Description

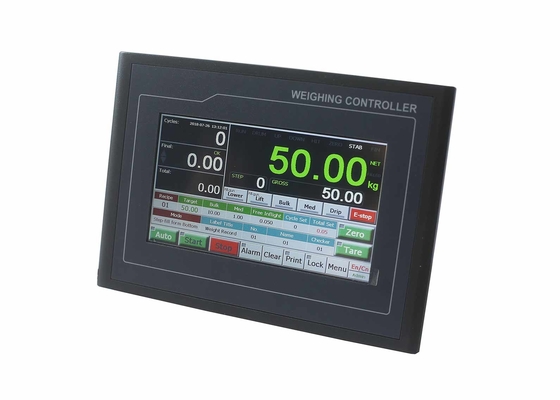

Medicine Bottle Filling Machine Indicator, Liquid Filling Weighing Controller CE Certified

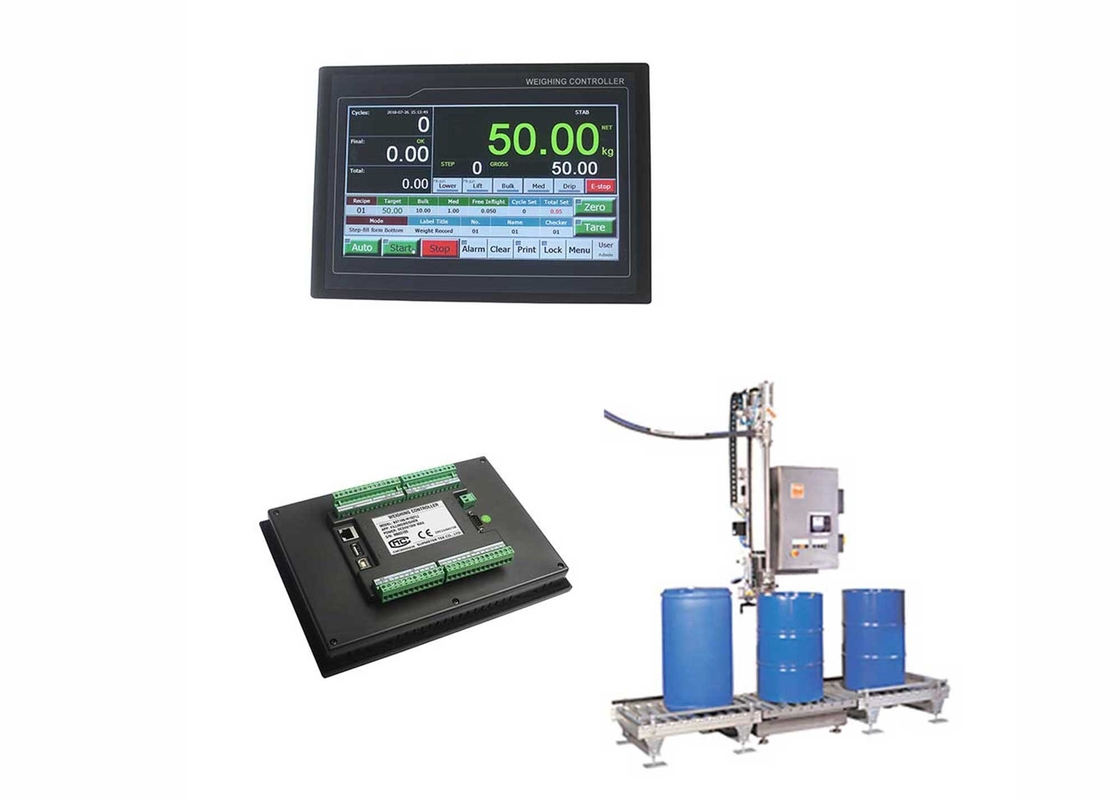

Medicine Bottle Filling Machine Indicator, Liquid Filling Weighing Controller CE Certified
- Suitable for Liquid/Gas/Powder Ration Fillingweigher [1-Scale].
- Optional filling modes: Fill on Drum’s Top / Fill on Drum’s Bottom / Step-fill from Drum’s Bottom.
- EMC design with high anti-jamming capability, suitable for industrial environment.
- Cortex-A8 CPU with 600MHz Clock, 128M RAM and 128M Flash.
- 7”/10.2” Ultralight and ultrathin TFT touch screen with embedded weighing/control module.
- Loadcell Interface
- Max. Connection Quantity: 16 Loadcells (350Ω).
- 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 800Hz.
- Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.
- I/O Interface
- 9 Definable normally open switch inputs [DI] and 12/18 definable normally open transistor switch outputs [DO].
- Optional ‘Bulk/Medium/Dribble Fill’ DOs for filling control. Optional Continuous and Jogging Dribble Fill Methods.
- 2 Optional&definable analog signal AO[0~10V] for weight signal output or ‘Bulk/Medium /Dribble Fill’ control.
- Digital Communication Interface
- COM1[RS232]&COM2[RS485] for connecting Host IPC/PLC and LED Remote Display.
- COM[RS232] for connecting RS232 Serial Printer.
- USB1 for connecting USB mouse, downloading HMI software from U-disk and copying data to U-disk.
- LAN: Optional Ethernet port.
User Login Interface
| Name | Operation | Note |
| 【Login】 |
User Login. Exfactory Passwords:
|
Operation ‘Main Menu / F5 User / Password / PSW Set’ for Modifying Password. |
| 【User Name】 | After password inputted, the matching User Name will be displayed. |
|
| 【Operate】 | Enter ‘Main User Interface’. | Operation ‘Main Menu / F5 User / Password / Login [Logoff]’ for Re-login and Logoff. |
Button Operation
| Name | Operation | State Indicator | Authorization |
| 【Auto】 | Auto / Manual [Emergency Stop] switch. |
Green: Auto state. Grey: Manual state. |
All Users |
| 【Start】 | Start. |
Green: Running state. Grey: Stop state. |
|
| 【Stop】 | Stop [Valid at Auto-running state]. | ||
| 【Re-run】 | Clear Alarm & Recover Running. | ||
| 【E-stop】 | Emergency Stop. | ||
| 【Alarm】 |
Alarm Query / Clear Alarm. ‘Auto/Pause’ state: Recover Running after alarms cleared. |
Red: Alarm state. | |
| 【Print】 | Report Print. | Green: Auto Print is allowed. | |
| 【Lock】 |
Screen-locking: Locking/unlocking the operating buttons of main user interface. Auto Screen-locking: Refer to parameter [901]. |
Flashing Red: Locked. Grey: Unlocked. |
|
| 【Menu】 | Enter Main Menu. | ||
| 【User】 | User Login. Display: Operator / Engineer / Admin. | ||
| 【Lower】 | Manual Lower Filling Gun. | Flashing Green: Filling Gun is moving down. | |
| 【Lift】 | Manual Lift Filling Gun. | Flashing Red: Filling Gun is moving up. | |
| 【Bulk】 | Manual Start/Stop Bulk Fill. | Green: Working state. | |
| 【Med】 | Manual Start/Stop Medium Fill. | ||
| 【Drip】 | Manual Start/Stop Dribble Fill. | ||
| 【Zero】 | Manual Zero [No Power-down Protection]. | Flashing Red. | |
| 【Tare】 | Manual Tare [No Power-down Protection]. | Flashing Red. | |
| 【Clear】 | Clear Screen: Clear the display values of Filling Weight, Totalized Weight and Batch Count. |
Engineer Administrator |
