Red LED Digital Bagging Controller For Loss-in-weight Ration Packing Scale
Product Details:
| Place of Origin: | China |
| Brand Name: | Supmeter |
| Certification: | CE |
| Model Number: | BST106-B66(D) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | 88-128usd/pcs |
| Packaging Details: | 1pcs/box |
| Delivery Time: | 1-3days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2000pcs/day |
|
Detail Information |
|||
| Power Supply: | DC24V | COM1: | RS232 |
|---|---|---|---|
| COM2: | RS485 | Packing Accuracy: | 0.2%-0.5% |
| Product Name: | LED Display Packing Controller | Customization: | Available |
| High Light: | packing controller,electrical weighing system |
||
Product Description

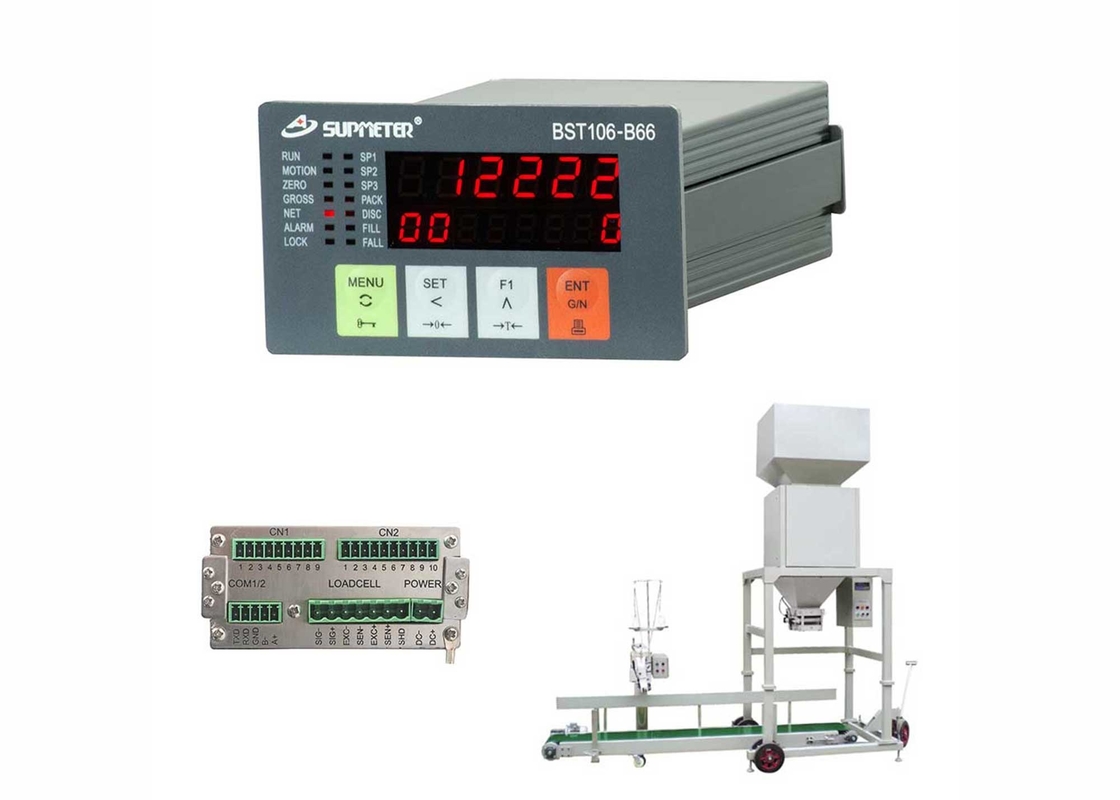

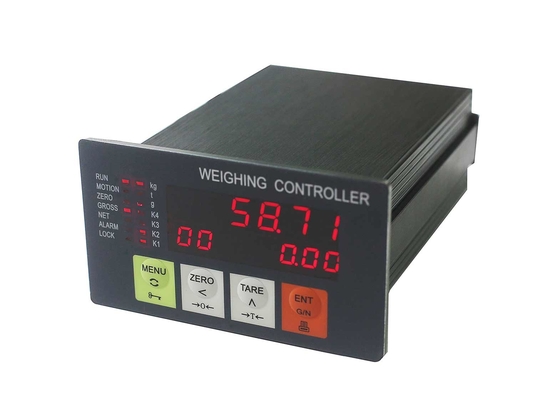

Red LED Digital Bagging Controller For Loss-in-weight Ration Packing Scale
Red LED Digital Bagging Controller For Loss-in-weight Ration Packing Scale
Main Features:
Suitable for Loss-in-weight Ration Packing Scale with Auto Bag-releasing or Manual Bag-releasing and Loss-in-weight Bulk Material Ration Feeding Scale.
Main Features
1.BST106-B66[D] Suitable for Loss-in-weight Ration Packing Scale with Auto Bag-releasing or Manual Bag-releasing and Loss-in-weight Bulk Material Ration Feeding Scale.
2. EMC design with high anti-jamming capability, suitable for industrial environment.
3. 32-bit ARM CPU with 48MHz clock & high arithmetic speed.
4. 6+8 Red LED digital tubes for English character and digit display.
5. English keypad for Menu&Shortcut mode operation with key tone.
6. 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 400Hz.
7. Special anti-vibration digital filtering algorithm for ensuring the weighing stability and occuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.
Technical Specification:
| Display | 6+8 Red LED digital tubes for English character and digit display | |
| Weight Display Range | -99,999~+999,999 | |
| Scale Capacity | Setting Range 1~999,999 | |
| Scale Division | Optional 1, 2, 5, 10, 20, 50, 100, 200, 500 | |
| Display Resolution | 1/100,000 | |
| Weight Unit | Optional kg, t, g, none | |
| Loadcell Interface | Excitation Voltage/Max. Current | DC9V/120mA [4-350Ω loadcells] |
| Signal Input Range | 0~22.5mV | |
| Output Sensitivity of Loadcell | 1.0~2.5mV/V | |
| Sampling Frequency | 400Hz | |
| Non-linearity | 0.005%FS | |
| Switch&Analog Signal Interface | DI | 6 Normally Open Switch Inputs |
| DO | 8 Normally Open Transistor Switch Outputs [DO]: DC24V, 250mA | |
| AO | 1 AO:4~20mA | |
| Digital Communication Interface | COM1 | RS232 |
| COM2 | RS485 | |
| Connectable | Host IPC/PLC and LED Remote Display | |
System Diagram for APP1 Ration Packing Mode
System Diagram for APP2 Bulk Material Ration Feeding Mode
Keypad Operation
| Menu Operation | |
| Key Name | Description |
| 【MENU】 |
Enter Main Menu. Exit. |
| 【ENT】 | Enter / Save / Clear Alarm. |
| 【◄】 |
Cursor shifts left. Display the previous option. |
| 【►】 |
Cursor shifts left. Display the next option. |
| 【▲】 |
Display the next interface or option. Digit input: +1 ( 0~9 loop). |
| 【▼】 |
Display the previous interface or option. Digit input: -1 ( 0~9 loop). |
| Quick Operation | |
|
【MENU】 【Ñ】 * |
|
|
【◄】 (【SET】) |
Recipe parameters setting. |
|
【◄】 【ZERO】 【→0←】 * |
|
|
【▲】 【TARE】 【→T←】 * |
|
|
【ENT】 【G/N】 |
Gross Weight / Net Weight display switch. |
Package
