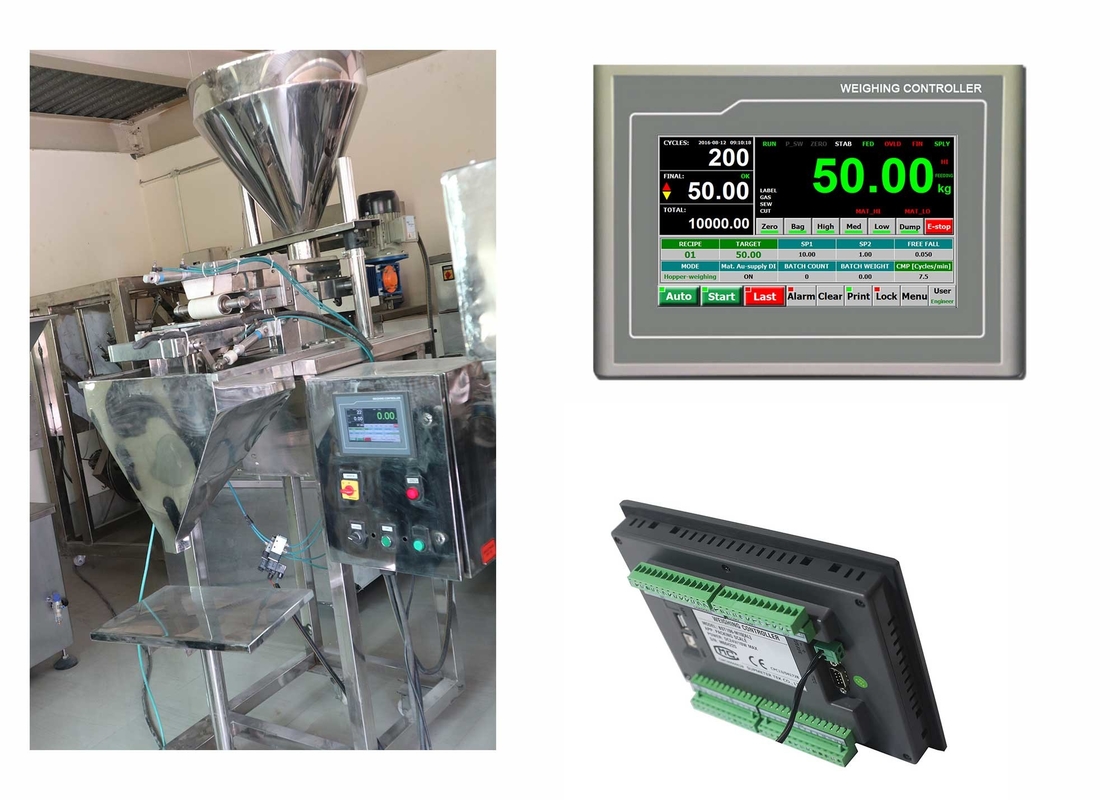

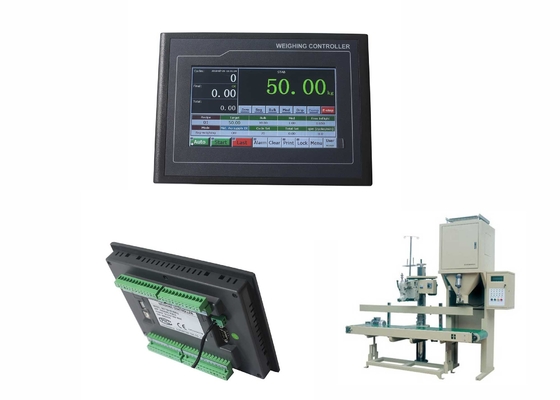

Weighing Hopper Scales, Bag Filling Machiney Digital Weight Indicator For Respective / Combination Bag Packaging
Product Details:
| Place of Origin: | China |
| Brand Name: | Supmeter |
| Certification: | CE |
| Model Number: | BST106-M10(AL) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | 200-288usd/pcs |
| Packaging Details: | 1pcs/box |
| Delivery Time: | 1-3days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 800pcs/day |
|
Detail Information |
|||
| Power Supply: | DC24V | Application: | Single Scale Mode |
|---|---|---|---|
| Input: | 9DIs | Output: | 18DOs |
| Verification Accuracy: | 0.02% | Customization: | Available |
| Packing Accuracy: | 0.2%-0.5% | Product Name: | Touch-screen Bagging Controller |
| High Light: | packing controller,electrical weighing system |
||
Product Description
Weighing Hopper Scales, Bag Filling Machiney Digital Weight Indicator For Respective / Combination Bag Packaging
Single Hopper 10-50kg Organic Fertilizer Packing Scale Indicator, Weighing Hopper Instrument Scale for Grain Packing
Main Features
- EMC design with high anti-jam for industrial environment.
- DC24V power input with reverse polarity protection.
- Cortex-A8 CPU with 600MHz Clock, 128M Flash.
- 7” [800×480] or 10.2” [1024×600] TFT touch panel.
- 24-bit ∑-△ADC with internal resolution 1/1,000,000.
- High sampling frequency 800Hz.
- Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
- Auto Zero Tracking.
- Fall Value Auto Correction.
- Auto Pause for Deviation Alarm.
- Auto Re-feed for Negative Deviation Alarm.
- Target Batch Count & Target Batch Weight Control.
- Definable DI/DO/AO/COM[Communication Port].
- 3-speed[high/medium/low] feeding control by DOs or AOs.
- Recipe Number: 100.
Main Application:
- Single-weighing-hopper Ration Packing Scale.
- Single-weighing-bag Ration Packing Scale.
- Loss-in-weight Ration Packing Scale.
Size:
7 Inch One:
Outline Size [W×H×D]: 226.5 × 163 × 36 mm
Panel Cut-out Size [W×H]: 215 × 152 mm
10 Inch One:
Outline Size [W×H×D]: 274 × 193 × 40 mm
Panel Cut-out Size [W×H]: 261 × 180 mm
Technical Specification:
- Power Supply: DC24V±20%, Max. 10W.
- Loadcell Excitation Voltage/Current: DC5V/250mA.
- 16 Loadcells[350Ω] connectable.
- Weighing Signal Input Range: 0~12.5mV.
- 9 Normally Open Switch Inputs [DI].
- 18 Normally Open Transistor Outputs [DO]: DC24V, 500mA.
- 2 Analog Signal Outputs [AO]: 0~10V, Max.50mA.
- COM&COM1: RS232; COM2: RS485.
- USB1: Connect mouse, software download, data backup.
- LAN: Optional Ethernet.
- Outline Size [W×H×D]
- Operating Temperature: -25℃～+45℃.
- Protection Level of Front Panel: IP65.
- Accuracy Grade: III.
- Verification Accuracy: 0.02%.
- Static Weighing Accuracy: 0.2%~0.5%.
- Packing Accuracy: 0.2%~0.5%.
Button Operation
| Name | Operation | State Indicator | Authorization |
| 【Auto】 | Auto / Manual [Emergency Stop] switch. |
Green: Auto state. Grey: Manual state. |
All Users |
| 【Start】 | Start. |
Green: Running state. Grey: Stop state. |
|
| 【Re-run】 | Clear Alarm & Recover Running. | ||
| 【Stop】 |
Normal Stop [Last Batch]. Stop after the present batch finished. |
Flashing Red. | |
| 【E-Stop】 | Emergency Stop. | ||
| 【Alarm】 |
Alarm Query / Clear Alarm. ‘Auto/Pause’ state: Recover Running after alarms cleared. |
Red: Alarm state. | |
| 【Print】 |
Report Print:
|
||
| 【Lock】 |
Screen-locking: Locking/unlocking the operating buttons of main user interface. Auto Screen-locking: Refer to parameter [901]. |
Flashing Red: Locked. Grey: Unlocked. |
|
| 【Menu】 | Enter Main Menu. | ||
| 【User】 | User Login. Display: Operator / Engineer / Admin. | ||
| 【Zero】 | Manual Zero [No Power-down Protection]. | Flashing green. | |
| 【Bag】 | Bag-clamp/release Request. |
Green: Bag-clamping state. Grey: Bag-releasing state. |
|
| 【Bulk】 | Manual Start/Stop Bulk Feed. | Green: Working state. | |
| 【Med】 | Manual Start/Stop Medium Feed. | ||
| 【Drip】 | Manual Start/Stop Dribble Feed. | ||
| 【Dump】 | Manual Start/Stop Dumping. | ||
| 【Mat.】 | Manual Start/Stop Supplying Materials into Feeding Bin. | Flashing green. | |
| 【Clear】 | Clear Screen: Clear the display values of Feeding Weight, Totalized Weight, Batch Count and Cycle Speed. |
Engineer Administrator |
User Login Interface
1-Bucket Scale & 1-Bag Scale:
System Diagram for APP1 1-Bucket Scale
Package
