Front End Wheel Loader Weigher/Scales With Built In Micro Printer Installed HITACHI
Product Details:
| Place of Origin: | China |
| Brand Name: | Supmeter |
| Certification: | CE |
| Model Number: | BST106-N59(B) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | 700-956usd/pcs |
| Packaging Details: | 1set/carton |
| Delivery Time: | 1-5days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500pcs/day |
|
Detail Information |
|||
| Power Supply: | DC24V±20% | Accuracy Grade: | III |
|---|---|---|---|
| Verification Accuracy Of Weighing Indicator: | 0.02% | Accuracy Of Single-Bucket-Weight: | 0.5%~1.0% |
| Accuracy Of Totalized Loading Weight: | 1.0% | MOQ: | 1pcs |
| Highlight: | truck scale indicator,on board weighing systems for loaders |
||
Product Description
Front End Wheel Loader Weigher/Scales with Built In Printer BST106-N59(B) Installed HITACHI
Operating Principle
- Wheel/Shovel Loader Weighing Controller is a dynamic weighing and auto-totalizing equipment installed on Shovel loader.
- When the lift-arm of Wheel/Shovel loader lifted to a certain height, the position sensor will trigger the weighing process, and the weighing indicator will collect the oil pressure signal from lower and upper oil chambers of arm-lifting oil cylinder. After signal processing and compensating, Single-bucket-loading -weight will be got and totalized to Totalized Loading Weight automatically. The operator can judge if the present Single-bucket-loading-weight is valid according to the alarm messages, and confirm the last bucket’s loading weight according to the negative deviation value.

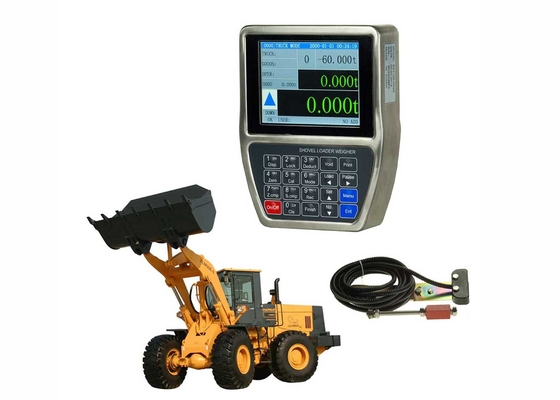

Configuration For 1 Set
- 1 Weighing indicator with Built-in thermal printer.
- 1 Position sensor.
- 2 Oil pressure sensors.
- 2 Plate type three-way joints.
- 1 Mounting fitting.
Pictures:
Technical Specifications:
| Display | 640×480 TFT color display screen for English character display | |
| Weight Display Range | -99,999~+999,999 | |
| System Weighing Range | 100~12,000kg | |
| Scale Division | Optional 1, 2, 5, 10, 20, 50kg | |
| Display Resolution | 1/100,000 | |
| Position Sensor Input Interface | 2 Switch signal Input | |
| Output Voltage | DC12V | |
| Max. Output Current | 100mA | |
| Oil Pressure Sensor Interface | 2 Switch signal Input | |
| Excitation Voltage/Max.Current | DC12V/100mA & DC5V/100mA | |
| Signal Input Range | Optional 0~20mV, 0~5V[Factory Set Value] | |
| ∑-△ADC | 24-bit, 1,000,000 internal code used | |
| Sampling Frequency | 400Hz | |
| Non-linearity | 0.005%FS | |
| Digital Communication Interface | COM1 | RS232 |
| Report Print | 10000 Loading Records can be saved, queried and printed, and each record can contain 50pcs Single-bucket-loading-weight value | |
| IP Grade | IP65 | |
