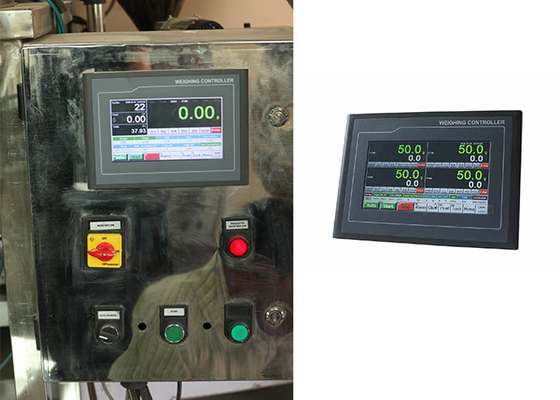

RS485 Modbus Four - Scale Weighing Indicator Controller For Packing Machinery

RS485 Modbus Four - Scale Weighing Indicator Controller For Packing Machinery

Product Details:

Place of Origin: China
Brand Name: Supmeter
Certification: CE
Model Number: BST106-M10[GH]

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: 300-400usd/pcs
Packaging Details: 1pcs/box
Delivery Time: 3-10 working days
Payment Terms: T/T, Western Union
Supply Ability: 10000pcs/month
Get Best Price Contact Now

Detail Information

Product Name: 4-SCALE Packaging Controller Model Number: BST106-M10[GH]
Material: Steel MOQ: 1pcs
High Light:

digital weighing controller

,

programmable weighing controller

Product Description



RS485 Modbus Four-scale Weighging Controller For Packing Machinery

  • Suitable for Ration Packing Scale. Optional Application Modes: 1-Bucket Scale, 2-Bucket Scale, 3-Bucket Scale and 4-Bucket Scale.
  • Power Supply: DC24V±20%, Max. 10W.
  • Loadcell Excitation Voltage/Current: DC5V/250mA.
  • 16 Loadcells[350Ω] connectable.
  • Weighing Signal Input Range: 0~12.5mV.
  • 7 Normally Open Switch Inputs [DI].
  • 18 Normally Open Transistor Outputs [DO]: DC24V, 500mA.
  • 4 Analog Signal Outputs [AO]: 0~10V, Max.50mA.
  • COM&COM1: RS232; COM2: RS485.
  • USB1: Connect mouse, software download, data backup.
  • LAN: Optional Ethernet.
  • Outline Size [W×H×D]
  • Operating Temperature: -25℃~+45℃.
  • Protection Level of Front Panel: IP65.
  • Accuracy Grade: III.
  • Verification Accuracy: 0.02%.
  • Static Weighing Accuracy: 0.2%~0.5%.
  • Packing Accuracy: 0.2%~0.5%.
  • 7”: 215 × 152 mm.
  • 10.2”: 261 × 180 mm.
  • Panel Cut-out Size [W×H]
  • 7”: 226.5 × 163 × 36 mm.
  • 10.2”: 274 × 193 × 40 mm.

RS485 Modbus Four - Scale Weighing Indicator Controller For Packing Machinery 0

Button Operation

Name Operation State Indicator Authorization
【Auto】 Auto / Manual [Emergency Stop] switch.

Green: Auto state.

Grey: Manual state.

All Users
【Start】 Start.

Green: Running state.

Grey: Stop state.


【Re-run】 Clear Alarm & Recover Running.
【Stop】

Normal Stop [Last Batch].

Stop after the present batch finished.

Flashing Red.
【E-stop】 Emergency Stop.
【Alarm】

Alarm Query / Clear Alarm.

‘Auto/Pause’ state: Recover Running after alarms cleared.

Red: Alarm state.
【Bag】 Bag-clamp/release Request.

Green: Bag-clamping state.

Grey: Bag-releasing state.


【Print】

Report Print:

  • [ Auto Print]: Print Batch Records.
  • [Total]: Print Totalizing Report.
  • [Recipe]: Print Working Recipe.

【Lock】

Screen-locking: Locking/unlocking the operating buttons of main user interface.

Auto Screen-locking: Refer to parameter [901].

Flashing Red: Locked.

Grey: Unlocked.


【Menu】 Enter Main Menu.
【User】 User Login. Display: Operator / Engineer / Admin.
【Inhibit】 Inhibit/Allow Switch.

Red: The lane is OFF.

Grey: The lane is ON.


【Zero】 Manual Zero [No Power-down Protection]. Flashing green.
【Bulk】 Manual Start/Stop Bulk Feed. Green: Working state.
【Med】 Manual Start/Stop Medium Feed.
【Drip】 Manual Start/Stop Dribble Feed.
【Dump】 Manual Start/Stop Dumping.
【Clear】 Clear Screen: Clear the display values of Feeding Weight, Totalized Weight, Batch Count and Cycle Speed.

Engineer

Administrator





System Diagram

RS485 Modbus Four - Scale Weighing Indicator Controller For Packing Machinery 1


Delivery

RS485 Modbus Four - Scale Weighing Indicator Controller For Packing Machinery 2
