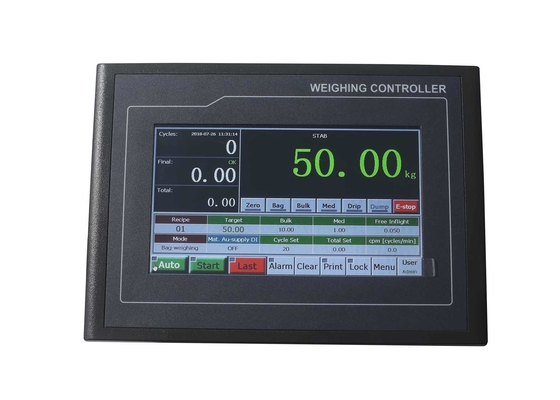

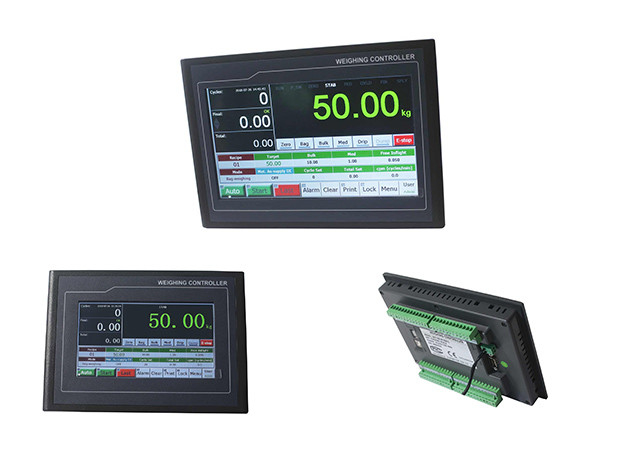

High Accuracy 0.2% Bagging Controller , Weighing Packaging Controller

High Accuracy 0.2% Bagging Controller , Weighing Packaging Controller

Product Details:

Place of Origin: China
Brand Name: Supmeter
Certification: CE
Model Number: BST106-M10[AL]

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: 1pcs/box
Delivery Time: 3-10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000pcs/month
Get Best Price Contact Now

Detail Information

Power Supply: DC24V±20% Max. Connect: 16Loadcells[350Ω]
Input: 9DIs Output: 18DOs
COM@COM1: RS232 COM2: RS485
Packing Accuracy: 0.2%-0.5% Accuracy Grade: III
High Light:

packing controller

,

electrical weighing system

Product Description



High-accuracy 0.2% Bagging Weighing Packaging Controller



Main Features:

  • EMC design with high anti-jam for industrial environment.
  • DC24V power input with reverse polarity protection.
  • Cortex-A8 CPU with 600MHz Clock, 128M Flash.
  • 7” [800×480] or 10.2” [1024×600] TFT touch panel.
  • 24-bit ∑-△ADC with internal resolution 1/1,000,000.
  • High sampling frequency 800Hz.
  • Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
  • Auto Zero Tracking.
  • Fall Value Auto Correction.
  • Auto Pause for Deviation Alarm.
  • Auto Re-feed for Negative Deviation Alarm.
  • Target Batch Count & Target Batch Weight Control.
  • Definable DI/DO/AO/COM[Communication Port].
  • 3-speed[high/medium/low] feeding control by DOs or AOs.
  • Recipe Number: 100.

User Login Interface:

Name Operation Note
【Login】

User Login.

Exfactory Passwords:

  • Operator: None.
  • Engineer: 0.
  • Administrator: 1.
Operation ‘Main Menu / F5 User / Password / PSW Set’ for Modifying Password.
【User Name】 After password inputted, the matching User Name will be displayed.
  • Operator: User with lowest authorization.
  • Engineer: User with higher authorization.
  • Administrator: User with highest authorization.
【Operate】 Enter ‘Main User Interface’. Operation ‘Main Menu / F5 User / Password / Login [Logoff]’ for Re-login and Logoff.



1-Bucket Scale & 1-Bag Scale:

High Accuracy 0.2% Bagging Controller , Weighing Packaging Controller 0



Loss-in-weight Scale:

High Accuracy 0.2% Bagging Controller , Weighing Packaging Controller 1



Button Operation:

Name Operation State Indicator Authorization
【Auto】 Auto / Manual [Emergency Stop] switch.

Green: Auto state.

Grey: Manual state.

All Users
【Start】 Start.

Green: Running state.

Grey: Stop state.

【Re-run】 Clear Alarm & Recover Running.
【Stop】

Normal Stop [Last Batch].

Stop after the present batch finished.

Flashing Red.
【E-Stop】 Emergency Stop.
【Alarm】

Alarm Query / Clear Alarm.

‘Auto/Pause’ state: Recover Running after alarms cleared.

Red: Alarm state.
【Print】

Report Print:

  • [ Auto Print]: Print Batch Records.
  • [Total]: Print Totalizing Report.
  • [Recipe]: Print Working Recipe.

【Lock】

Screen-locking: Locking/unlocking the operating buttons of main user interface.

Auto Screen-locking: Refer to parameter [901].

Flashing Red: Locked.

Grey: Unlocked.

【Menu】 Enter Main Menu.
【User】 User Login. Display: Operator / Engineer / Admin.
【Zero】 Manual Zero [No Power-down Protection]. Flashing green.
【Bag】 Bag-clamp/release Request.

Green: Bag-clamping state.

Grey: Bag-releasing state.

【Bulk】 Manual Start/Stop Bulk Feed. Green: Working state.
【Med】 Manual Start/Stop Medium Feed.
【Drip】 Manual Start/Stop Dribble Feed.
【Dump】 Manual Start/Stop Dumping.
【Mat.】 Manual Start/Stop Supplying Materials into Feeding Bin. Flashing green.
【Clear】 Clear Screen: Clear the display values of Feeding Weight, Totalized Weight, Batch Count and Cycle Speed.

Engineer

Administrator



Feild Installation:

High Accuracy 0.2% Bagging Controller , Weighing Packaging Controller 2High Accuracy 0.2% Bagging Controller , Weighing Packaging Controller 3

High Accuracy 0.2% Bagging Controller , Weighing Packaging Controller 4
