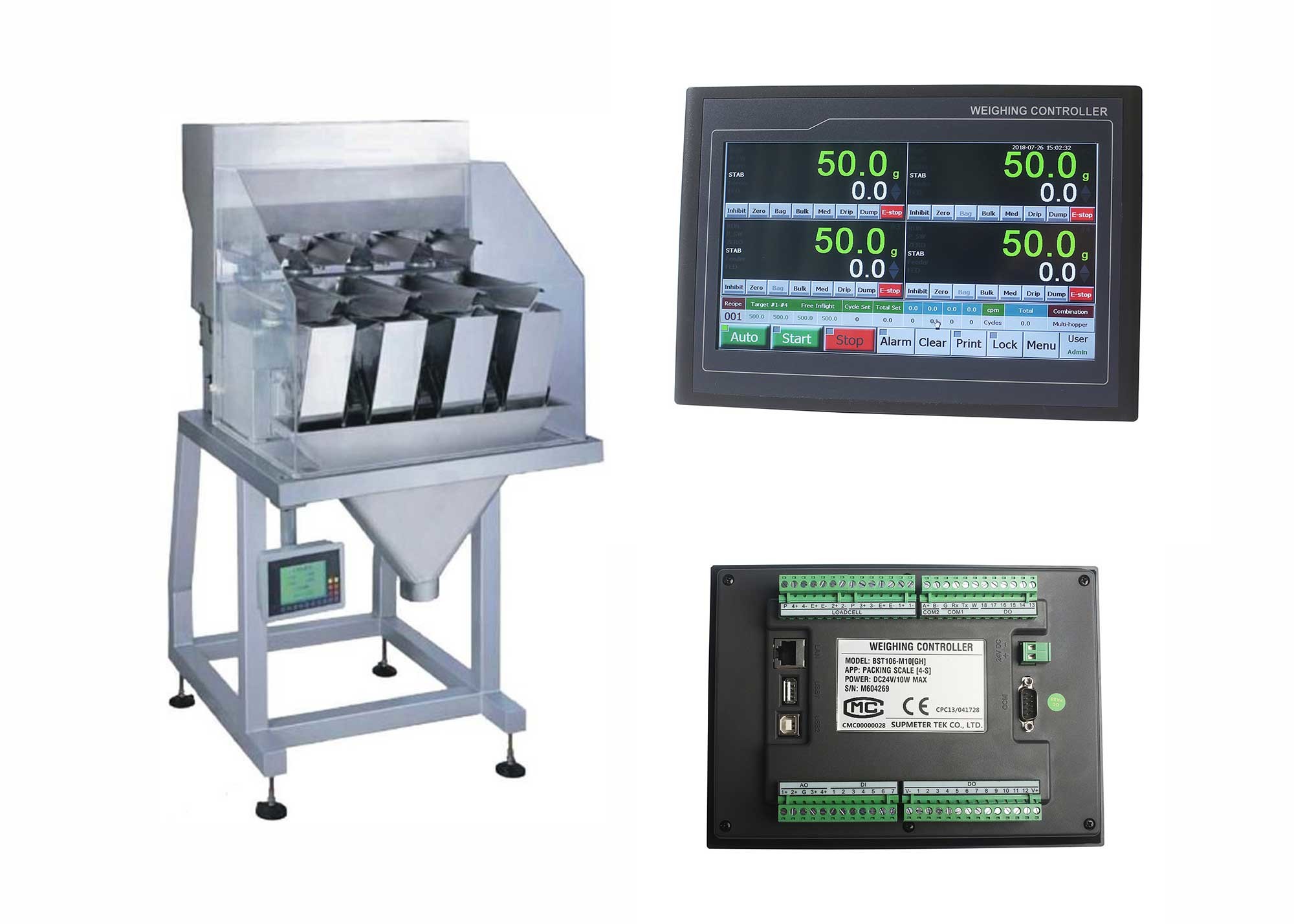

Four Scales Packaging Weight Scale Controller, Weight Indicator For Industrial Weighing Systems
Product Details:
| Place of Origin: | China |
| Brand Name: | Supmeter |
| Certification: | CE |
| Model Number: | BST106-M10[GH] |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | 300-400usd/pcs |
| Packaging Details: | 1pcs/box |
| Delivery Time: | 3-10 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000pcs/month |
|
Detail Information |
|||
| Product Name: | 4-SCALE Packaging Controller | Model Number: | BST106-M10[GH] |
|---|---|---|---|
| Material: | Steel | MOQ: | 1pcs |
| Size Option: | 7 Inch Or 10 Inch | Customizition: | Overlay, Power On Display And Label Marke Can Be Customized |
| High Light: | digital weighing controller,programmable weighing controller |
||
Product Description
Four Scales Packaging Weight Scale Controller, Weight Indicator For Industrial Weighing Systems
- Suitable for Ration Packing Scale. Optional Application Modes: 1-Bucket Scale, 2-Bucket Scale, 3-Bucket Scale and 4-Bucket Scale. Optional Packing Modes: Combination[Multi-bucket Packing], Combination[Single-bucket Packing] and Respective[Single-bucket Packing].
- EMC design with high anti-jamming capability, suitable for industrial environment.
- Cortex-A8 CPU with 600MHz Clock, 128M RAM and 128M Flash.
- 7”/10.2” Ultralight and ultrathin TFT touch screen with embedded weighing/control module.
- Loadcell Interface
- 4 Loadcell ports. Max. Connection Quantity: 4×4 Loadcells (350Ω).
- 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 800Hz.
- Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.
- I/O Interface
- 7 Definable normally open switch inputs [DI] and 12/18 definable normally open transistor switch outputs [DO].
- Optional ‘Bulk/Medium/Dribble Feed’ DOs for feeding control. Optional Continuous and Jogging Dribble Feed Methods.
- 4 Optional&definable analog signal AO[0~10V] for weight signal output or ‘Bulk/Medium/Dribble Feed’ control.
- Digital Communication Interface
- COM1[RS232]&COM2[RS485] for connecting Host IPC/PLC and LED Remote Display.
- COM[RS232] for connecting RS232 Serial Printer.
- USB1 for connecting USB mouse, downloading HMI software from U-disk and copying data to U-disk.
- LAN: Optional Ethernet port.
Button Operation
| Name | Operation | State Indicator | Authorization |
| 【Auto】 | Auto / Manual [Emergency Stop] switch. |
Green: Auto state. Grey: Manual state. |
All Users |
| 【Start】 | Start. |
Green: Running state. Grey: Stop state. |
|
| 【Re-run】 | Clear Alarm & Recover Running. | ||
| 【Stop】 |
Normal Stop [Last Batch]. Stop after the present batch finished. |
Flashing Red. | |
| 【E-stop】 | Emergency Stop. | ||
| 【Alarm】 |
Alarm Query / Clear Alarm. ‘Auto/Pause’ state: Recover Running after alarms cleared. |
Red: Alarm state. | |
| 【Bag】 | Bag-clamp/release Request. |
Green: Bag-clamping state. Grey: Bag-releasing state. |
|
| 【Print】 |
Report Print:
|
||
| 【Lock】 |
Screen-locking: Locking/unlocking the operating buttons of main user interface. Auto Screen-locking: Refer to parameter [901]. |
Flashing Red: Locked. Grey: Unlocked. |
|
| 【Menu】 | Enter Main Menu. | ||
| 【User】 | User Login. Display: Operator / Engineer / Admin. | ||
| 【Inhibit】 | Inhibit/Allow Switch. |
Red: The lane is OFF. Grey: The lane is ON. |
|
| 【Zero】 | Manual Zero [No Power-down Protection]. | Flashing green. | |
| 【Bulk】 | Manual Start/Stop Bulk Feed. | Green: Working state. | |
| 【Med】 | Manual Start/Stop Medium Feed. | ||
| 【Drip】 | Manual Start/Stop Dribble Feed. | ||
| 【Dump】 | Manual Start/Stop Dumping. | ||
| 【Clear】 | Clear Screen: Clear the display values of Feeding Weight, Totalized Weight, Batch Count and Cycle Speed. |
Engineer Administrator |
System Diagram
Delivery
