Instrument Digital Weighing Controller Built In Modbus , Packaging Indicator With Normally Open Switch
Product Details:
| Place of Origin: | China |
| Brand Name: | SUPMETER |
| Certification: | CE |
| Model Number: | BST106-M10[AL] |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 1pcs/box |
| Delivery Time: | 1~10 working days |
| Payment Terms: | T/T, Western Union, L/C, D/A, D/P |
| Supply Ability: | 20000pcs per month |
|
Detail Information |
|||
| Customization: | Available | Application: | Single Scale Mode |
|---|---|---|---|
| Verification Accuracy: | 0.02% | Static Weighing Accuracy: | 0.2%~0.5% |
| Packing Accuracy: | 0.2%~0.5% | IP Grade: | IP65 |
| High Light: | packing controller,electrical weighing system |
||
Product Description

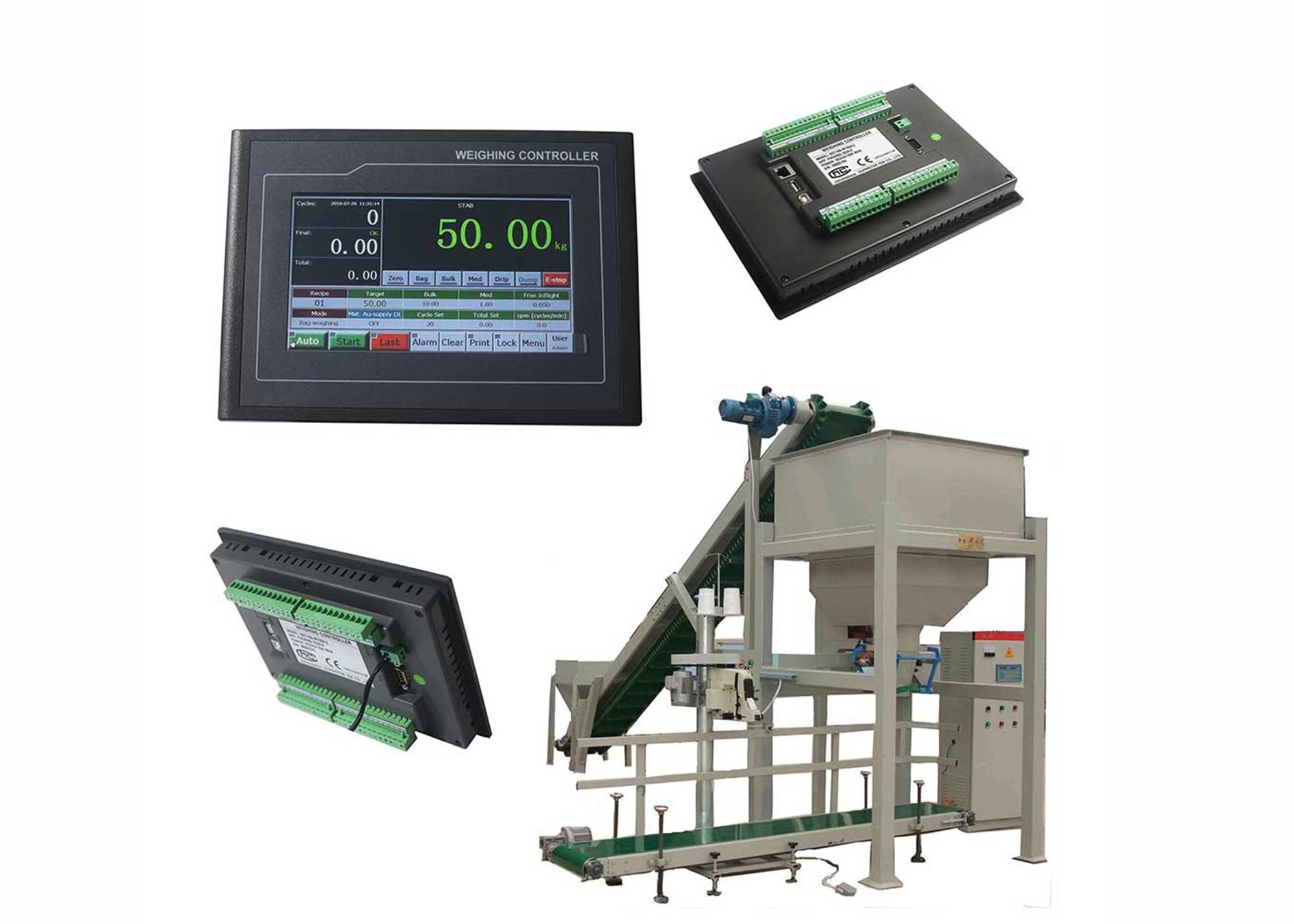

Instrument Digital Weighing Controller Built In Modbus , Packaging Indicator With Normally Open Switch
Main Application:
- Single-weighing-hopper Ration Packing Scale.
- Single-weighing-bag Ration Packing Scale.
- Loss-in-weight Ration Packing Scale.
Main Features
- EMC design with high anti-jam for industrial environment.
- DC24V power input with reverse polarity protection.
- Cortex-A8 CPU with 600MHz Clock, 128M Flash.
- 7” [800×480] or 10.2” [1024×600] TFT touch panel.
- 24-bit ∑-△ADC with internal resolution 1/1,000,000.
- High sampling frequency 800Hz.
- Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
- Auto Zero Tracking.
- Fall Value Auto Correction.
- Auto Pause for Deviation Alarm.
- Auto Re-feed for Negative Deviation Alarm.
- Target Batch Count & Target Batch Weight Control.
- Definable DI/DO/AO/COM[Communication Port].
- 3-speed[high/medium/low] feeding control by DOs or AOs.
- Recipe Number: 100.
Technical Specification:
- Power Supply: DC24V±20%, Max. 10W.
- Loadcell Excitation Voltage/Current: DC5V/250mA.
- 16 Loadcells[350Ω] connectable.
- Weighing Signal Input Range: 0~12.5mV.
- 9 Normally Open Switch Inputs [DI].
- 18 Normally Open Transistor Outputs [DO]: DC24V, 500mA.
- 2 Analog Signal Outputs [AO]: 0~10V, Max.50mA.
- COM&COM1: RS232; COM2: RS485.
- USB1: Connect mouse, software download, data backup.
- LAN: Optional Ethernet.
- Outline Size [W×H×D]
- 7”: 226.5 × 163 × 36 mm.
- 10.2”: 274 × 193 × 40 mm.
- Panel Cut-out Size [W×H]
- 7”: 215 × 152 mm.
- 10.2”: 261 × 180 mm.
- Operating Temperature: -25℃～+45℃.
- Protection Level of Front Panel: IP65.
- Accuracy Grade: III.
- Verification Accuracy: 0.02%.
- Static Weighing Accuracy: 0.2%~0.5%.
- Packing Accuracy: 0.2%~0.5%.
Button Operation
| Name | Operation | State Indicator | Authorization |
| 【Auto】 | Auto / Manual [Emergency Stop] switch. |
Green: Auto state. Grey: Manual state. |
All Users |
| 【Start】 | Start. |
Green: Running state. Grey: Stop state. |
|
| 【Re-run】 | Clear Alarm & Recover Running. | ||
| 【Stop】 |
Normal Stop [Last Batch]. Stop after the present batch finished. |
Flashing Red. | |
| 【E-Stop】 | Emergency Stop. | ||
| 【Alarm】 |
Alarm Query / Clear Alarm. ‘Auto/Pause’ state: Recover Running after alarms cleared. |
Red: Alarm state. | |
| 【Print】 |
Report Print:
|
||
| 【Lock】 |
Screen-locking: Locking/unlocking the operating buttons of main user interface. Auto Screen-locking: Refer to parameter [901]. |
Flashing Red: Locked. Grey: Unlocked. |
|
| 【Menu】 | Enter Main Menu. | ||
| 【User】 | User Login. Display: Operator / Engineer / Admin. | ||
| 【Zero】 | Manual Zero [No Power-down Protection]. | Flashing green. | |
| 【Bag】 | Bag-clamp/release Request. |
Green: Bag-clamping state. Grey: Bag-releasing state. |
|
| 【Bulk】 | Manual Start/Stop Bulk Feed. | Green: Working state. | |
| 【Med】 | Manual Start/Stop Medium Feed. | ||
| 【Drip】 | Manual Start/Stop Dribble Feed. | ||
| 【Dump】 | Manual Start/Stop Dumping. | ||
| 【Mat.】 | Manual Start/Stop Supplying Materials into Feeding Bin. | Flashing green. | |
| 【Clear】 | Clear Screen: Clear the display values of Feeding Weight, Totalized Weight, Batch Count and Cycle Speed. |
Engineer Administrator |
User Login Interface
1-Bucket Scale & 1-Bag Scale:
Loss-in-weight Scale:
System Diagram for APP1 1-Bucket Scale
How long is the warranty period?
The warranty period for our products is 12 (twelve) months.
If the products from SUPMETER are proved to be unable to work normally due to unartificial reasons, and the problems can't be solved by customers under the technical support from SUPMETER, then customers can send the problematic items back to SUPMETER. SUPMETER is RESPONSIBLE to MEND (or REPLACE when necessary) them FREE OF CHARGE.
