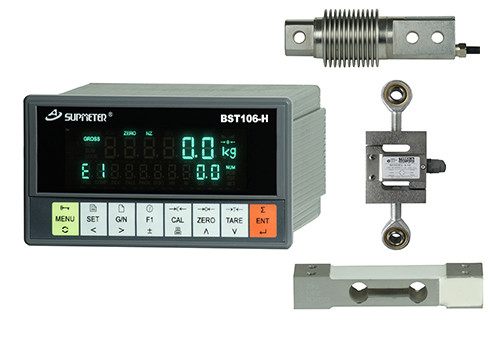

Loss-In-Weight packing Bagging Weighing Indicator Controller With CE

Loss-In-Weight packing Bagging Weighing Indicator Controller With CE

Product Details:

Place of Origin: China
Brand Name: SUPMETER
Certification: CE
Model Number: BST106-H16[D]

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: 1pcs/box
Delivery Time: 3~30 working days
Payment Terms: T/T, Western Union, L/C, D/A, D/P
Supply Ability: 30000pcs per month
Get Best Price Contact Now

Detail Information

Customization: Available Accuracy: III
IP Grade: IP65 Sampling Frequncy: 400Hz
Operating Temperature: -25℃~+45℃ Power Supply: AC220V±15%, 50/60Hz
High Light:

packing controller


electrical weighing system

Product Description

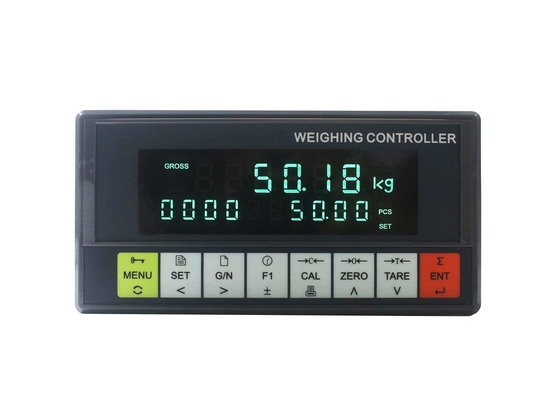

Loss-In-Weight packing Bagging Weighing Indicator Controller With CE

Loss-In-Weight packing Bagging Weighing Indicator Controller With CE


Main Features:

  • Suitable for Loss-in-weight Ration Packing Scale with Auto Bag-releasing or Manual Bag-releasing and Loss-in-weight Bulk Material Ration Feeding Scale.
  • EMC design with high anti-jamming capability, suitable for industrial environment.
  • 32-bit ARM CPU with 72MHz clock & high arithmetic speed.
  • 6+10 green VFD digital tubes for English character and digit display.
  • 8-key English keypad.
  • Menu&Shortcut mode operation with key tone.
  • 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 400Hz.
  • Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.
  • Max. Connection Quantity: 8 Loadcells (350Ω).
  • Zero Upon Power Up, Zero Auto-tracking, Manual/Auto Zero and Zero Calibration available.
  • Load Calibration and Data Calibration available.
  • Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing functions available.
  • 7 Normally open switch inputs [DI] and 12 normally open transistor switch outputs [DO].
  • Optional ‘Bulk/Medium/Dribble Feed’ DOs for feeding control. Optional Continuous and Jogging Dribble Feed Methods.
  • 1 Optional and definable analog signal AO[4~20mA] for weight signal output or ‘Bulk/Medium /Dribble Feed’ control.
  • 10 Recipes for packing/feeding control

Keypad Operation Of BST106-H16[A]:

Menu Operation
Key Name Description
【MENU】 Enter Main Menu / Exit.
【ENT】 Enter / Save / Clear Alarm.
【◄】 Cursor shifts left.
【►】 Cursor shifts right.

Display the previous interface or option.
Digit input: +1.


Display the next interface or option.
Digit input: -1.

Quick Operation


  • Key-locking.
  • Key-unlocking.
【SET】 Recipe parameters setting.
【G/N】 Gross Weight / Net Weight display switch.


Load Calibration.


  • [-ZEro-]: Zero Calibration with Power-down Protection and Clearing Tare Weight.
  • [≡ZEro≡]: Manual Zero without Power-down Protection and without Clearing Tare Weight.
  • The controller will switch to Gross Weight display.


  • [≡tArE≡]: Manual Tare without Power-down Protection.
  • [-PStr-]: Preset Tare Weight with Power-down Protection.
  • [-rStr-]: Clear Tare Weight with Power-down Protection.
  • The controller will switch to Net Weight display.
【,】* Record Query.
【/】* Clear Screen: Clear the display value of Feeding Weight, Totalized Weight and Batch Count.
【‡】* Time display and setting.
【±】 ‘+’/‘-’ switch.

Main Display Interface:

  • [bAt.tAb]: Print Present Batch Record.
  • [tot.tAb]: Print Totalizing Report.
  • [SEt.tAb]: Print Present Recipe.

Record Query state: Print Historical Batch Record.

Model Panel-mounting Installation
Loss-In-Weight packing Bagging Weighing Indicator Controller With CE 0

Outline Size


Front Panel Size


Box Body Size


Panel Cut-out Size


164×82×188 164×82 152×76 153×77


Operating Specification

Optional Operating Voltage

  • Operating Voltage 1: DC24V±20%.
  • Operating Voltage 2: AC85~264V, 50/60Hz.
  • Operating Voltage 3: AC220V±15%, 50/60Hz.
  • Free to configure one of them.Outline Size
