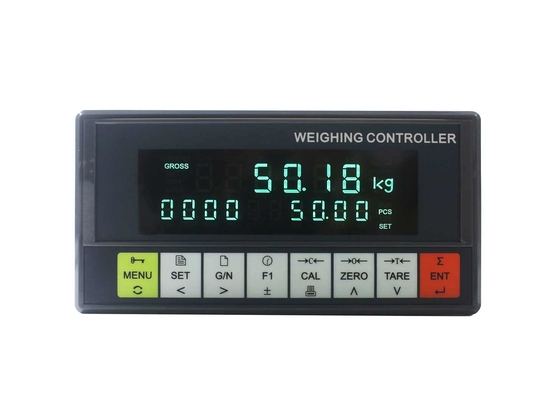

    Anti Vibration Filter Bag Ration Packing Scale Controller With Ce Certification

    Product Details:

    Place of Origin: China
    Brand Name: SUPMETER
    Certification: CE
    Model Number: BST106-H16[A]

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiation
    Packaging Details: 1pcs/box
    Delivery Time: 3~30 working days
    Payment Terms: T/T, Western Union, L/C, D/A, D/P
    Supply Ability: 30000pcs per month
    Get Best Price Contact Now

    Detail Information

    Customization: Available Accuracy: III
    IP Grade: IP65 Sampling Frequncy: 400Hz
    Operating Temperature: -25℃~+45℃ Power Supply: AC220V±15%, 50/60Hz
    High Light:

    packing controller

    ,

    electrical weighing system

    Product Description

    Anti Vibration Filter Bag Ration Packing Scale Controller With Ce Certification

    Anti Vibration Filter Bag Ration Packing Scale Controller With Ce Certification

    What does BST106-H16[A] used for?

    • Single-hopper-weighing Mode [Single-scale Mode]
    • Double-hopper-weighing Mode [Double-scale Mode] and Bag-weighing Mode with Auto Bag-releasing or Manual Bag-releasing


    What Features does BST106-H16[A] have?

    • EMC design with high anti-jamming capability, suitable for industrial environment.
    • 32-bit ARM CPU with 72MHz clock & high arithmetic speed.
    • 6+10 green VFD digital tubes for English character and digit display.
    • 8-key English keypad.
    • Menu&Shortcut mode operation with key tone.
    • 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 400Hz.
    • Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.
    • Max. Connection Quantity: 8 Loadcells (350Ω).
    • Zero Upon Power Up, Zero Auto-tracking, Manual/Auto Zero and Zero Calibration available.
    • Load Calibration and Data Calibration available.
    • Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing functions available.
    • 7 Normally open switch inputs [DI] and 12 normally open transistor switch outputs [DO].
    • Optional ‘Bulk/Medium/Dribble Feed’ DOs for feeding control. Optional Continuous and Jogging Dribble Feed Methods.
    • 1 Optional and definable analog signal AO[4~20mA] for weight signal output or ‘Bulk/Medium /Dribble Feed’ control.
    • 10 Recipes for packing control.

    Keypad Operation Of BST106-H16[A]:

    Menu Operation
    Key NameDescription
    【MENU】Enter Main Menu / Exit.
    【ENT】Enter / Save / Clear Alarm.
    【◄】Cursor shifts left.
    【►】Cursor shifts right.
    【▲】

    Display the previous interface or option.
    Digit input: +1.

    【▼】

    Display the next interface or option.
    Digit input: -1.

    Quick Operation

    【Ñ】
    *

    • Key-locking.
    • Key-unlocking.
    【SET】Recipe parameters setting.
    【G/N】Gross Weight / Net Weight display switch.

    【→C←】
    【CAL】
    *

    Load Calibration.

    【→0←】
    【ZERO】
    *

    • [-ZEro-]: Zero Calibration with Power-down Protection and Clearing Tare Weight.
    • [≡ZEro≡]: Manual Zero without Power-down Protection and without Clearing Tare Weight.
    • The controller will switch to Gross Weight display.

    【→T←】
    【TARE】
    *

    • [≡tArE≡]: Manual Tare without Power-down Protection.
    • [-PStr-]: Preset Tare Weight with Power-down Protection.
    • [-rStr-]: Clear Tare Weight with Power-down Protection.
    • The controller will switch to Net Weight display.
    【,】*Record Query.
    【/】*Clear Screen: Clear the display value of Feeding Weight, Totalized Weight and Batch Count.
    【‡】*Time display and setting.
    【±】‘+’/‘-’ switch.
    【6】

    Main Display Interface:

    • [bAt.tAb]: Print Present Batch Record.
    • [tot.tAb]: Print Totalizing Report.
    • [SEt.tAb]: Print Present Recipe.

    Record Query state: Print Historical Batch Record.

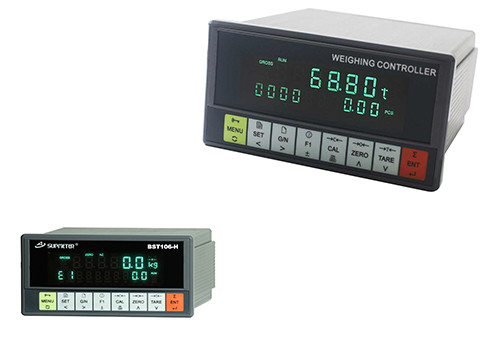

    Model Panel-mounting Installation
    Anti Vibration Filter Bag Ration Packing Scale Controller With Ce Certification 0


    Outline Size

    W×H×D[mm]

    Front Panel Size

    W×H[mm]

    Box Body Size

    W×H[mm]

    Panel Cut-out Size

    W×H[mm]

    164×82×188164×82152×76153×77


    Product Details:
    Anti Vibration Filter Bag Ration Packing Scale Controller With Ce Certification 1
