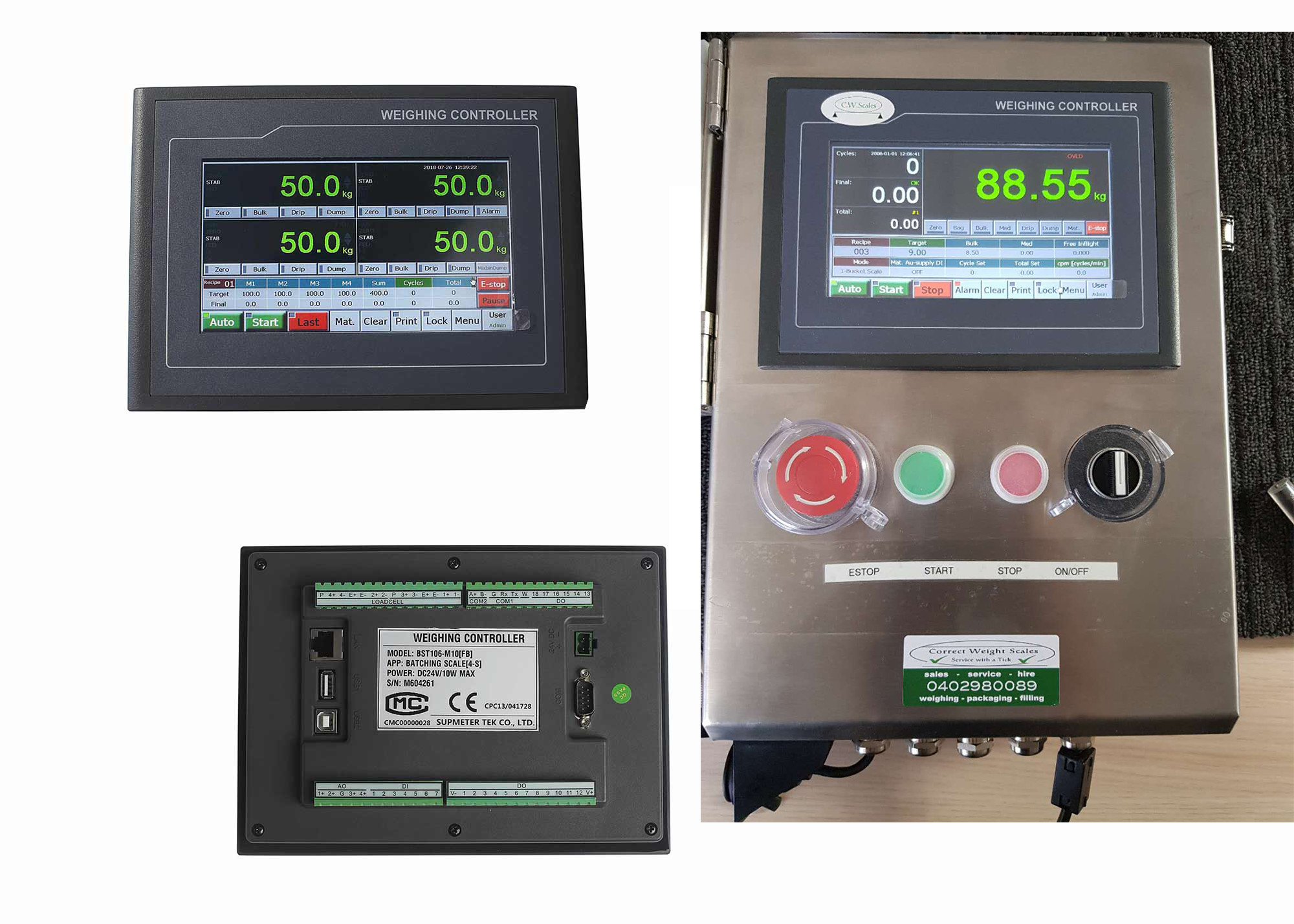

4 Chanel Sugar/Rice/Wheat Bagging Controller Pneumatic Packing Weighing Controller With Ethernet & USB Port
Product Details:
| Place of Origin: | China |
| Brand Name: | Supmeter |
| Certification: | CE |
| Model Number: | BST106-M10[GH] |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 1pcs/box |
| Delivery Time: | 3-10 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000pcs per month |
|
Detail Information |
|||
| Power Supply: | DC24V | Display: | Lcd |
|---|---|---|---|
| Operation: | Touch Screen | COM@COM1: | RS232 |
| COM2: | RS485 | ||
| Highlight: | packing controller,electrical weighing system |
||
Product Description
4 Chanel Sugar/Rice/Wheat Bagging Controller Pneumatic Packing Weighing Controller With Ethernet & USB Port
Software Function
1. Manual Screen-locking/Screen-unlocking, Auto Screen-locking, Digital Setting&Calibration and I/O Testing functions available.
2. Initial Zero Adjustment after Power-on, Auto Zero Tracking, Zero Fine Adjustment and Zero Calibration functions available.
3. Load Calibration and Loss Calibration functions available.
4. 10 Recipes for packing control.
5. Optional ‘Fall Value Auto Correction’ function.
6. Optional ‘Auto Pause for Deviation Alarm’ and ‘Auto Re-feed’ functions.
7. With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations.
Button Operation
| Name | Operation | State Indicator | Authorization |
| 【Auto】 | Auto / Manual [Emergency Stop] switch. |
Green: Auto state. Grey: Manual state. |
All Users |
| 【Start】 | Start. |
Green: Running state. Grey: Stop state. |
|
| 【Re-run】 | Clear Alarm & Recover Running. | ||
| 【Stop】 |
Normal Stop [Last Batch]. Stop after the present batch finished. |
Flashing Red. | |
| 【E-stop】 | Emergency Stop. | ||
| 【Alarm】 |
Alarm Query / Clear Alarm. ‘Auto/Pause’ state: Recover Running after alarms cleared. |
Red: Alarm state. | |
| 【Bag】 | Bag-clamp/release Request. |
Green: Bag-clamping state. Grey: Bag-releasing state. |
|
| 【Print】 |
Report Print:
|
||
| 【Lock】 |
Screen-locking: Locking/unlocking the operating buttons of main user interface. Auto Screen-locking: Refer to parameter [901]. |
Flashing Red: Locked. Grey: Unlocked. |
|
| 【Menu】 | Enter Main Menu. | ||
| 【User】 | User Login. Display: Operator / Engineer / Admin. | ||
| 【Inhibit】 | Inhibit/Allow Switch. |
Red: The lane is OFF. Grey: The lane is ON. |
|
| 【Zero】 | Manual Zero [No Power-down Protection]. | Flashing green. | |
| 【Bulk】 | Manual Start/Stop Bulk Feed. | Green: Working state. | |
| 【Med】 | Manual Start/Stop Medium Feed. | ||
| 【Drip】 | Manual Start/Stop Dribble Feed. | ||
| 【Dump】 | Manual Start/Stop Dumping. | ||
| 【Clear】 | Clear Screen: Clear the display values of Feeding Weight, Totalized Weight, Batch Count and Cycle Speed. |
Engineer Administrator |
System Diagram
Main Features:
1. EMC design with high anti-jam for industrial environment.
2. DC24V power input with reverse polarity protection.
3. Cortex-A8 CPU with 600MHz Clock, 128M Flash.
4. 7” [800×480] or 10.2” [1024×600] TFT touch panel.
5. 24-bit ∑-△ADC with internal resolution 1/1,000,000.
6. High sampling frequency 800Hz.
7. Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
8. Target Batch Count & Target Batch Weight Control.
9. 3-speed[high/medium/low] feeding control by DOs or AOs.
10. Definable DI/DO/AO/COM[Communication Port].
Outline Size:
Installation Mode
Terminal Diagram
Technical Specification:
| Power Supply | DC24V±20%,Max.10w. |
| Display | HMI |
| Sampling Frequency | 800Hz |
| A/D Convert | 24-bit |
| LAN | Optional Ethernet |
| USB1 | Connect mouse, software download, data backup |
| Max. Connection number of Loadcell | 8 Loadcells (350Ω) |
| DI | 7 Normally Open Switch Inputs |
| DO | 18 Normally Open Transistor Switch Outputs |
| AO4 | Analog Signal Output: 4~20mA. |
| Operating Temperature | -25℃~+45℃ |
| Verification Accuracy | 0.02% |
| Packing Accuracy | 0.2%~0.5% |
