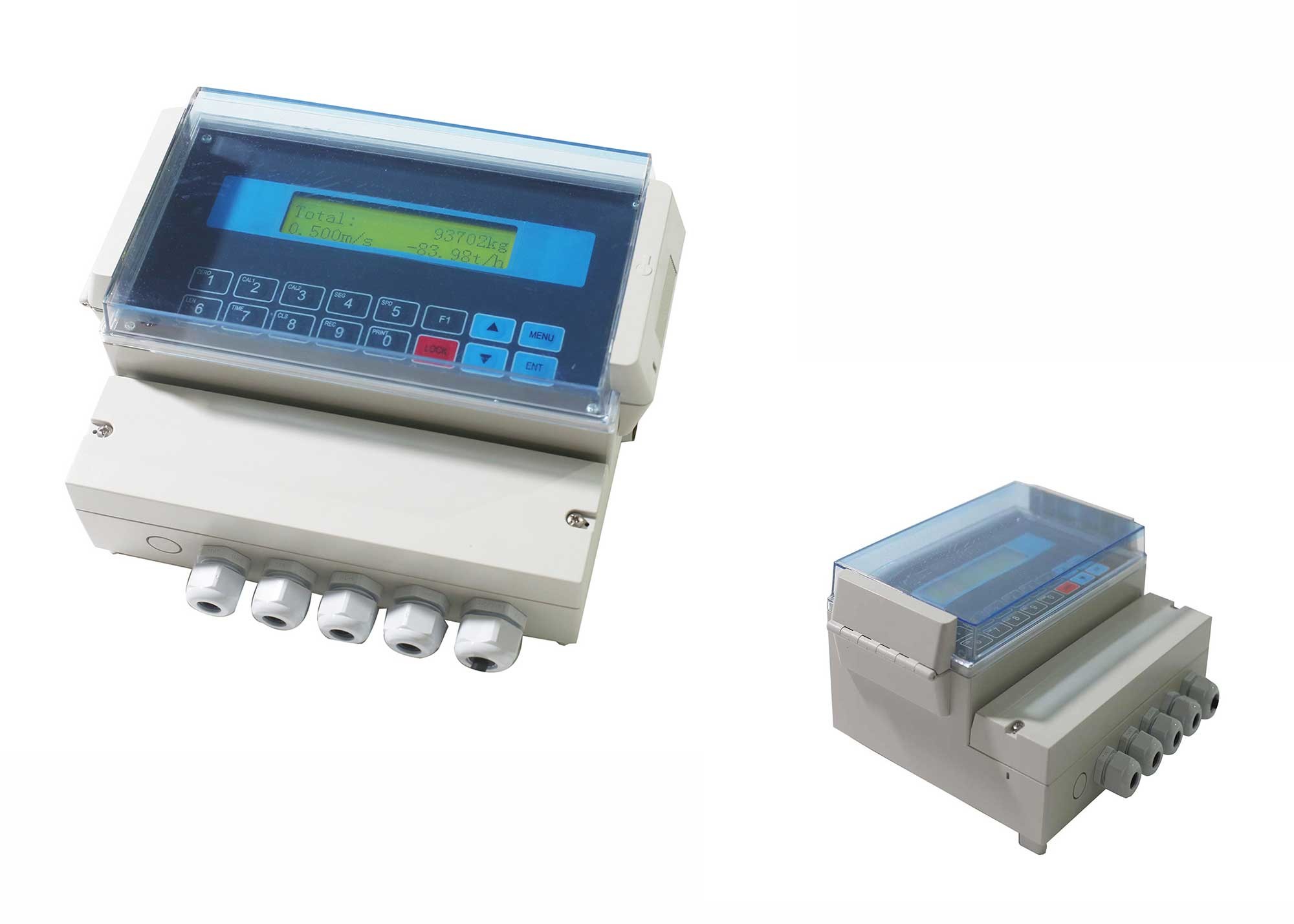

Intelligent Weighing Instrument Weigh Feeder Controller With Signal Junction Box

Intelligent Weighing Instrument Weigh Feeder Controller With Signal Junction Box

Product Details:

Place of Origin: China
Brand Name: Supmeter
Certification: CE
Model Number: BST100-D52

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: one pc per carton
Delivery Time: 3workdays
Payment Terms: Western Union, T/T
Supply Ability: 10000pcs/month
Get Best Price Contact Now

Detail Information

Power Supply: AC220V Protection Level: IP65
Accuracy Grade: 0.5 Max. Connection Number Of Loadcell: 8 Loadcells (350Ω)
Communication Port: COM1:Optional RS232/RS485/RS422/ Profibu-DP/Ethernet; COM2:RS485
High Light:

digital weighing controller

,

crane weight indicator

Product Description

Intelligent Weighing Instrument Weigh Feeder Controller With Signal Junction Box



Technical Specification

  • Power Supply: AC220V±15%, 50/60Hz, Max. 10W.
  • Loadcell Excitation Voltage/Current: DC10V/250mA.
  • 8 Loadcells[350Ω] connectable.
  • Weighing Signal Input Range: 0~25mV.
  • Speed Sensor Excitation Voltage/Current: DC12V/100mA.
  • Speed Signal Input Range: 0.5~3000Hz.
  • COM1: Optional RS232/RS485/RS422/Profibus-DP/Ethernet.
  • COM2: RS232.
  • Connect Host IPC, Remote Display, Printer&Wireless Module.
  • Optional 4~20mA Analog Output [AO] Module by COM1.
  • Outline Size [W×H×D]: 235.5 × 227.5 × 119.5 mm.
  • Operating Temperature: -25℃~+45℃.
  • Protection Level: IP65.
  • Accuracy Grade: 0.5





Model Panel-mounting / Wall-mounting Keypad Operation

     If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 Calibration’ & ‘F6 Factory Adj.’, the Indicator will return to ‘Main Display Interface’ automatically.



                                    Menu Operation
Key Name Description
【MENU】 Enter Main Menu / Exit.
【ENT】

Enter/Save.

Return to the initial display interface.

【▲】

Cursor shifts up or left.

Display the previous interface or option.

【▼】

Cursor shifts down or right.

Display the next interface or option.

【0~9】 Digit Input.
                         Quick Operation
【LOCK】

Key-locking.

Key-unlocking.

【F1】 Static Span Calibration with Hanging Weight.
【ZERO】 Zero Calibration.
【CAL1】 Dynamic Span Calibration.
【CAL2】 Static Span Calibration with Chain Weight.
【SEG】 Segmenting Span Correction.
【SPD】 Speed Calibration.
【LEN】 Belt Length Calibration.
【TIME】 Date/Time Setting.
【CLS】 Clear Screen.
【REC】 Query and Print Weight Record.
【PRINT】

Print.





Intelligent Weighing Instrument With Signal Junction Box Suitable For Corrosive Gas Environment

Intelligent Weighing Instrument Weigh Feeder Controller With Signal Junction Box 0



Installation:

Intelligent Weighing Instrument Weigh Feeder Controller With Signal Junction Box 1

Model Wall-mounting / Model Explosion-proof Terminal:

Intelligent Weighing Instrument Weigh Feeder Controller With Signal Junction Box 2



FAQ:



1. What detailed information do I need to provide if I want to place an order?

We need to know the following information: the model number of the loader you want to install, the shape and size of cylinder joint of your loader, the weight of single bucket, accuracy etc.



2. Do you have any discount?

Yes, if you buy large QTY, please send us a email, we will give you a big discount.



3. What terms of payment are available?

We accept T/T, L/C, Trade assurance, Secure payment, Western Union,etc.



4.When will you arrange the production?

We will arrange the production immediately after receiving your payment.



5. How do you ensure good product quality?

We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.



6. How long is the warranty period?

The warranty period for our products is 12 (twelve) months.

If the products from SUPMETER are proved to be unable to work normally due to unartificial reasons, and the problems can't be solved by customers under the technical support from SUPMETER, then customers can send the problematic items back to SUPMETER. SUPMETER is RESPONSIBLE to MEND (or REPLACE when necessary) them FREE OF CHARGE.

(Note: if after checking, the returned goods are proved to be in good condition, the trouble is resulted to be caused by improper operation by customers, SUPMETER is IRRESPONSIBLE to bear the shipping & other charges related to the returning.)



7. How can you help us in installation?

We have installation vedio. And we have been working on this more than 5 years. We will help you solve the problem in installation with our expirience.
