Dust Proof Shovel Loader Indicator Scales With 640×480 TFT Color Display Screen

Dust Proof Shovel Loader Indicator Scales With 640×480 TFT Color Display Screen



Suitable for the wheel loader series with loading capacity 1~12t.



Main Features:

  • EMC design with high anti-jamming capability, suitable for industrial environment.
  • DC24V power input circuit with reverse polarity protection function.
  • 32-bit ARM CPU with 72MHz & higher arithmetic speed.
  • Dust-proof stainless steel shell with protection level IP65.
  • 640×480 TFT color display screen for English character display.
  • The display informations of Bucket Lifting/Declining state, Single-bucket-loading-weight, Totalized Loading Weight, Positive/Negative Deviation Value, Alarm state, Date/Time and other auxiliary data are used for judging if Single-bucket-loading-weight is valid and the loading process should be stopped.
  • 20-key English keypad with controllable backlight.
  • Number and English Alphabet can be inputted.
  • The informations of User Name, Truck No., Goods No. and Operator No. can be inputted.
  • Upper/Lower Limit of Single-bucket-loading-weight, Setpoint of Totalized Loading Weight and Date/Time can be set.
  • Operating Time, Single-bucket-loading-weight, Totalized Loading Weight and Alarm Information can be recorded automatically.
  • Using two oil pressure sensors for higher weighing accuracy than using one.
  • 24-bit ∑-△ADC with internal resolution 1/1,000,000 and sampling frequency 400Hz.
  • High sampling frequency, anti-vibration digital filter and acceleration compensation algorithm for ensuring high weighing accuracy in the lifting process of the bucket.
  • 10000 Loading Records can be saved, queried and printed, and each record can contain 50 Single-bucket-loading-weight value.







Package:



Dust Proof Shovel Loader Indicator Scales With 640×480 TFT Color Display Screen 0



Dust Proof Shovel Loader Indicator Scales With 640×480 TFT Color Display Screen 1

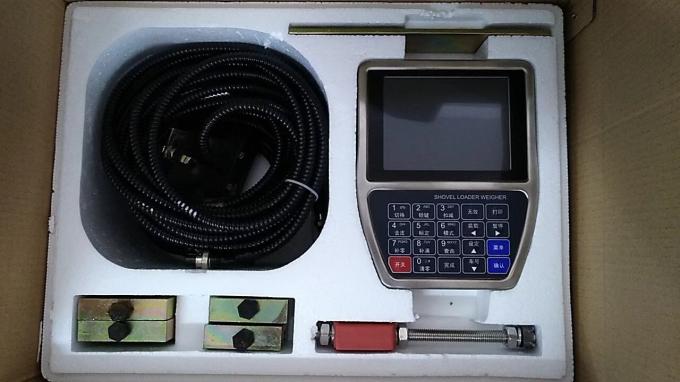

System Configuration

  • 1 Weighing Indicator with Thermal Printer.
  • 1 Position Sensor.
  • 2 Oil Pressure Sensors.
  • 2 Plate Type Three-way Joints.
  • 1 Mounting Fitting.

Technical Specification:



Display 640×480 TFT color display screen for English character display
Weight Display Range of Indicator -99,999~99,999
System Weighing Range 100~12,000kg
Display Resolution 1/100,000
Keypad 20-key English keypad with controllable backlight
Position Sensor Input Interface: 2 Switch signal Input
Output Voltage DC12V
Max. Output Current 100mA
Oil Pressure Sensor Interface
Excitation Voltage/Max.Current DC12V/100mA & DC5V/100mA
Signal Input Range Optional 0~20mV, 0~5V[Factory Set Value]
Sampling Frequency 400Hz
Non-linearity 0.005%FS
Digital Communication Interface
COM1 RS232
Report Print
10000 Loading Records can be saved, queried and printed, and each record can contain 50pcs Single-bucket-loading-weight value
IP Grade: IP65

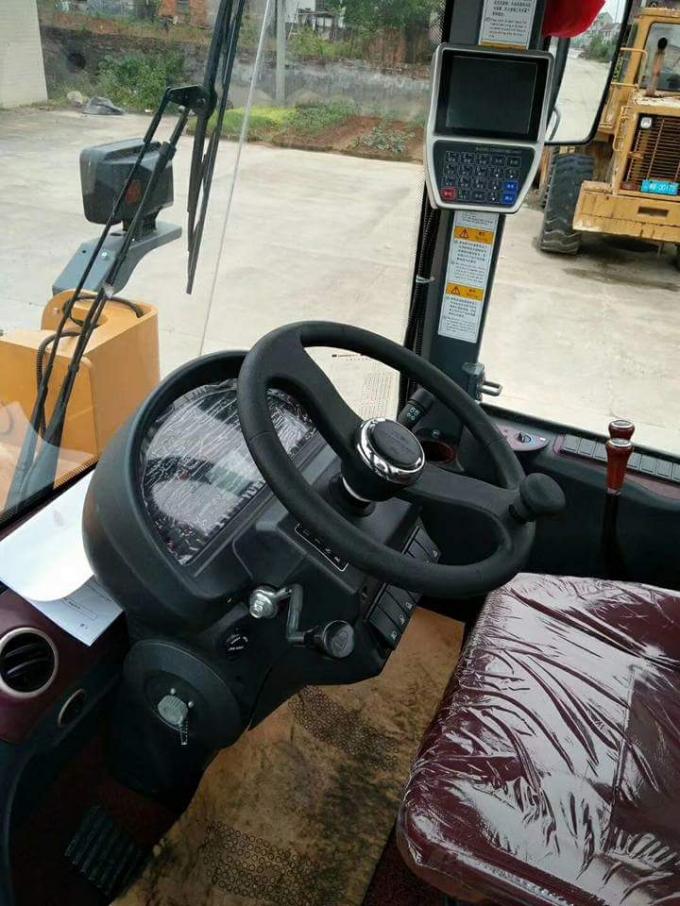

On-site Installation:

Dust Proof Shovel Loader Indicator Scales With 640×480 TFT Color Display Screen 2Dust Proof Shovel Loader Indicator Scales With 640×480 TFT Color Display Screen 3Dust Proof Shovel Loader Indicator Scales With 640×480 TFT Color Display Screen 4



If the three-way joint on your loader scale is special, please tell us the size.
