    High Anti Jam Hopper Scale / Platform Scale Controller Auto Zero Tracking

    Product Details:

    Place of Origin: CHNIA
    Brand Name: supmeter
    Certification: CE

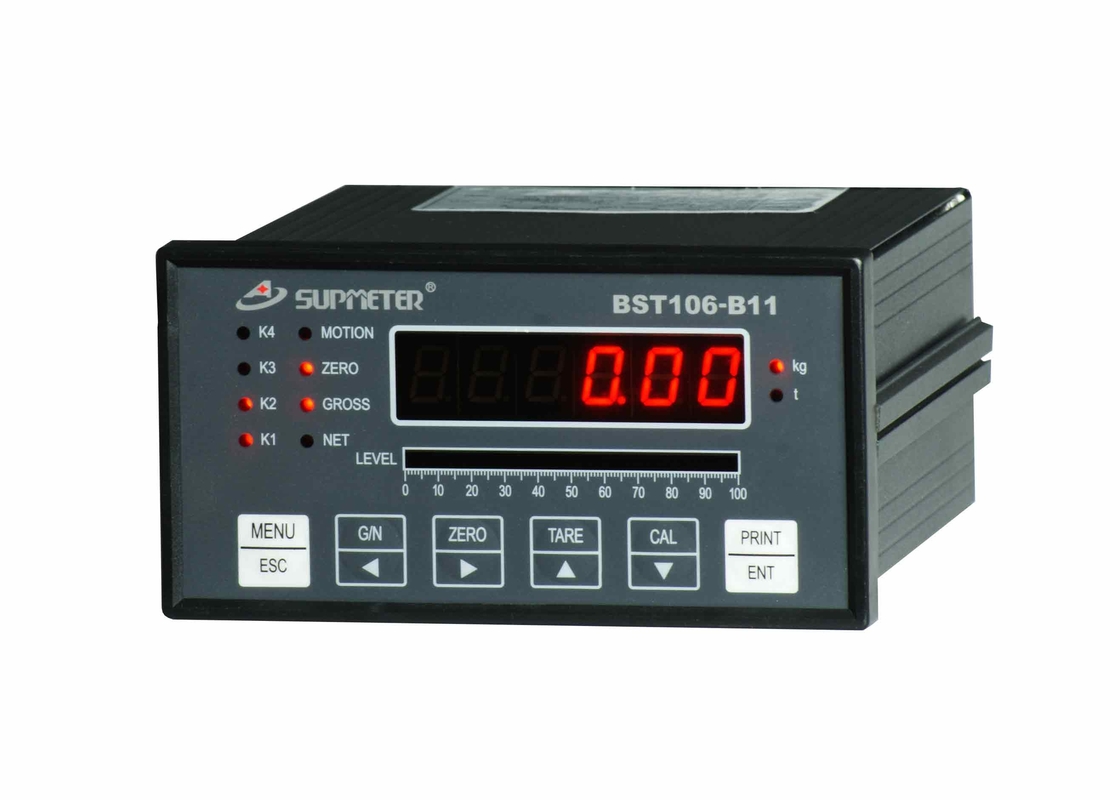

    Model Number: BST106-B11

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 UNIT
    Price: 300 USD PER UNIT
    Packaging Details: Carton Packing
    Delivery Time: 3 WORKING DAYS
    Payment Terms: T/T
    Supply Ability: 1000 UNIT PER MONTH
    Get Best Price Contact Now

    Detail Information

    Material: Steel Display: VFD
    Level Scale: Available Hopper Scale: Avaiable
    Weighing Signal Input Range: 0~25mV Accuracy Grade: III
    High Light:

    digital weighing controller

    ,

    programmable weighing controller

    Product Description

    High Anti Jam Hopper Scale / Platform Scale Controller Auto Zero Tracking

    Weighing Controller For Level Scale And Hopper Scale And Platform Scale with LED Display







    Main Applications

    1.  Material Level Scale, Hopper Scale & Platform Scale.
    2.  Weight Limit DO Alarm Mode.
    3.  Weight Increment DO Output Mode.
    4.  Weight Decrement DO Output Mode.
    5. High Anti Jam Hopper Scale / Platform Scale Controller Auto Zero Tracking 0Main Features
    6. 1 EMC design with high anti-jam for industrial environment.
      2 6 LED/VFD digital tubes for English&digit display.
      3 64-segment LED for percent display.
      4 24-bit ∑-△ADC with internal resolution 1/1,000,000.
      5 High sampling frequency 200Hz.
      6 Special Anti-vibration Digital Filtering Algorithm for precise
      weighing, stable display and rapid response.
      7 Auto Zero Tracking.
      8 Load Calibration &, Data Calibration.
      9 The Weighing Record can be printed.
      10 Definable AO/COM[Communication Port].
      High Anti Jam Hopper Scale / Platform Scale Controller Auto Zero Tracking 1Technical Specifications
    7. Power Supply: AC220V±15%, 50/60Hz, Max. 10W.
    8.  Loadcell Excitation Voltage/Current: DC10V/250mA.
    9.  8 Loadcells[350Ω] connectable.
    10.  Weighing Signal Input Range: 0~25mV.
    11.  3 Normally Open Switch Inputs [DI].
    12.  4 Normally Open Relay Outputs [DO]: AC250V/DC24V, 1A.
    13.  1 Analog Signal Output [AO]: 4~20mA, 0.05%FS.
    14.  COM1: Fixed RS232&RS485. Free to use one of them.
    15.  COM2: Optional RS232/RS485/RS422/Profibus-DP/Ethernet.
    16.  Connect Host IPC, Remote Display, Printer&Wireless Module.
    17.  Outline Size [W×H×D]: 160 × 84 × 188 mm.
    18.  Panel Cut-out Size [W×H]: 151 × 76 mm.
    19.  Operating Temperature: -25℃~+45℃.
    20.  Protection Level of Front Panel: IP65.
    21.  Accuracy Grade: III.
    22.  Verification Accuracy: 0.02%.
    23.  Static Weighing Accuracy: 0.2%~0.5%.
    24. High Anti Jam Hopper Scale / Platform Scale Controller Auto Zero Tracking 2ABOUT OUR COMPANY
    25. High Anti Jam Hopper Scale / Platform Scale Controller Auto Zero Tracking 3
