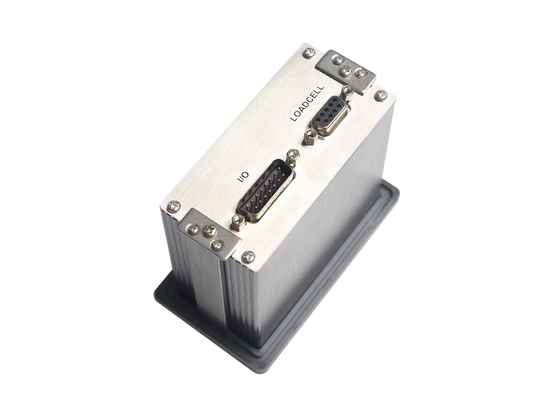

Mini 3-D 3-CH Weighing Indicator Controller , 1280Hz Force Measuring Controller

Mini 3-D 3-CH Weighing Indicator Controller , 1280Hz Force Measuring Controller

Product Details:

Place of Origin: CHINA
Brand Name: Supmeter
Certification: CE
Model Number: BST106-B60R[F]

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: 80USD PER UNIT
Packaging Details: Carton Packing
Delivery Time: 3 WORKING DAYS
Payment Terms: T/T
Supply Ability: 1000 UNITS PER MONTH
Get Best Price Contact Now

Detail Information

Peak Value: Display Holding Material: Steel
Sampling Frequency: 1280Hz Commnication: RS232 Or Rs485
Weight: 0.5kg
High Light:

crane weight indicator

,

programmable weighing controller

Product Description

Mini 3-D 3-CH Weighing Indicator Controller , 1280Hz Force Measuring Controller

mini 3-D AND 3-CH Force Measuring Controller With LED Display And Setpoints And AO[4-20]mA





Main Applications

  1.      1-3 Channels Force Measuring System.
  2.  3-Channel Real-time Force Values & Resultant Force Display.
  3.  3-Channel Peak Values & Resultant Force Peak Value Display.
  4.  Resultant Force/Peak Upper/Lower Limit DO Alarm.
  5.  RS232/RS485 Digit Transmission.
  6.  3-D Resultant Force Algorithm [F2=X 2 +Y 2 +Z 2 ].
  7.  Cumulative Sum Resultant Force Algorithm [F=X+Y+Z].​Mini 3-D 3-CH Weighing Indicator Controller , 1280Hz Force Measuring Controller 0Main Features



1 EMC design with high anti-jam for industrial environment.
2 DC24V power input with reverse polarity protection.
3 32-bit ARM CPU with 48MHz clock & high arithmetic speed
4 5 Red LED digital tubes for English&digit display.
5 24-bit ∑-△ADC with internal resolution 1/1,000,000.
6 High sampling frequency 1280Hz.
7 Optional Special Anti-vibration Digital Filtering Algorithm for
precise weighing, stable display and rapid response.
8 Auto Zero Tracking.
9 Load Calibration, Data Calibration & Segmenting Correction.Definable AO/COM[Communication Port].

Mini 3-D 3-CH Weighing Indicator Controller , 1280Hz Force Measuring Controller 1​Technical Specifications

  1.  Power Supply: DC24V±20%, Max. 5W.
  2.  Loadcell Excitation Voltage/Current: DC5V/120mA.
  3.  8 Loadcells[350Ω] connectable.
  4.  Transmitter Excitation Voltage/Current: DC12V/100mA.
  5.  Optional weighing/force input signal mV, V and mA.
  6.  【mV】Signal Input Range: 0~19.5mV.
  7.  【V】Signal Input Range: 0~2.5V, 0~5V, 0~10V.
  8.  【mA】Signal Input Range: 0~20mA.
  9.  2 Normally open/closed Relays [DO]: AC250V/DC24V, 1A.
  10.  1 Analog Signal Output [AO]: 0~20mA, 0.05%FS.
  11.  COM1: RS232.
  12.  COM2: RS485.
  13.  Connect Host IPC[Modbus] & Remote Display.
  14.  Outline Size [W×H×D]: 107 × 60 × 100 mm.
  15.  Panel Cut-out Size [W×H]: 94 × 47 mm.
  16.  Operating Temperature: -25℃~+45℃.
  17.  Protection Level of Front Panel: IP65.
  18.  Accuracy Grade: III.
  19.  Verification Accuracy: 0.03%.
  20.  Static Weighing / Force Measuring Accuracy: 0.2%~0.5%.
  21. Mini 3-D 3-CH Weighing Indicator Controller , 1280Hz Force Measuring Controller 2
