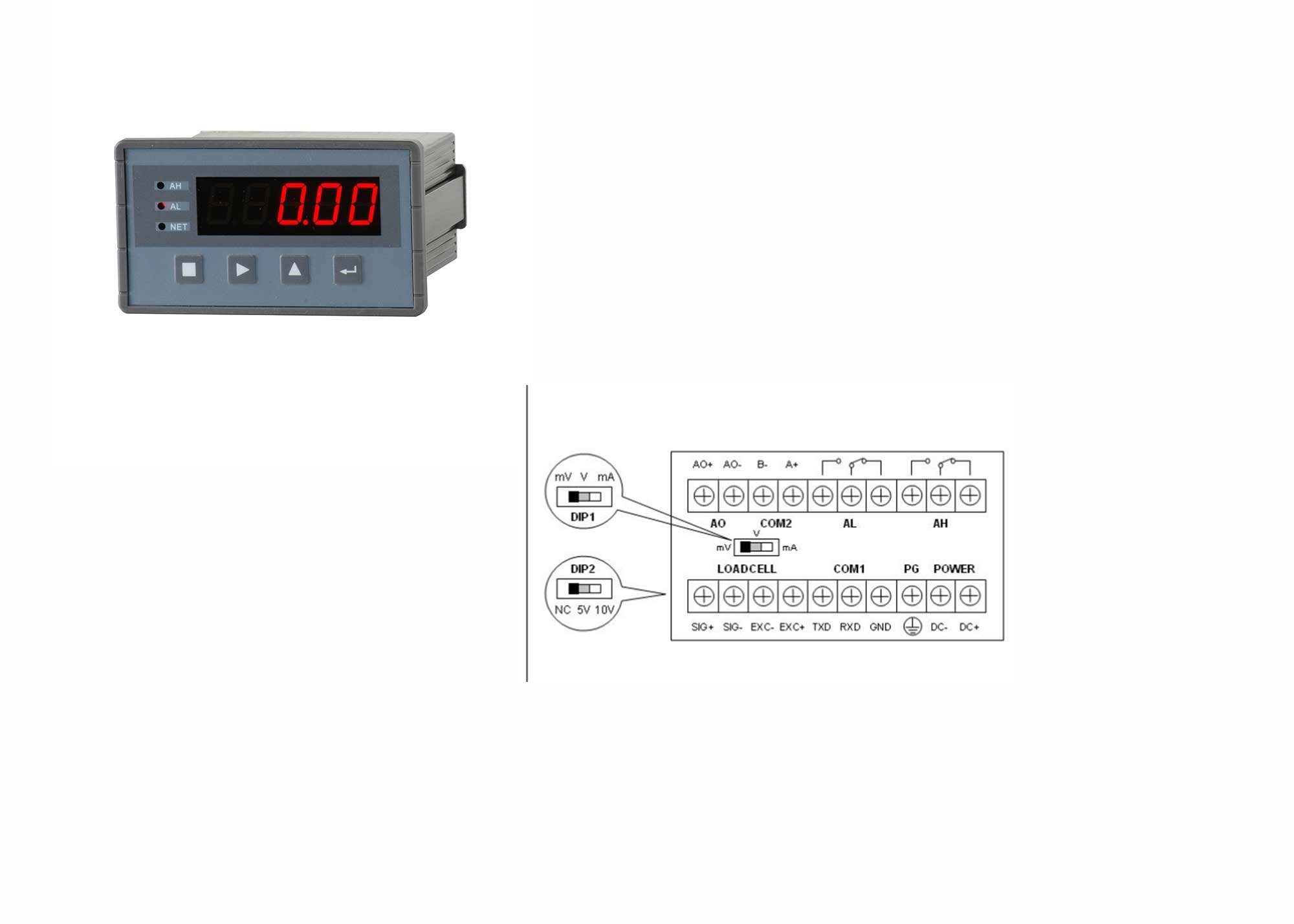

Steel Weighing Measuring Controller , Digital Weight Indicator RS232 Rs485 Communication
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Supmeter |
| Certification: | CE |
| Model Number: | BST106-B60S[L] |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | 80USD PER UNIT |
| Packaging Details: | Carton Packing |
| Delivery Time: | 3 WORKING DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 1000 UNITS PER MONTH |
|
Detail Information |
|||
| Peak Value: | Display Holding | Material: | Steel |
|---|---|---|---|
| Sampling Frequency: | 1280Hz | Commnication: | RS232 Or Rs485 |
| Weight: | 0.5kg | Outline Size [W×H×D: | 1 |
| High Light: | digital weighing controller,crane weight indicator |
||
Product Description
Display Weighing Measuring Controller For Force with LED Display And Setpoints And AO[4-20]mA
Main Applications
- Weight/Force Display.
- Peak Value Detection / Display Holding.
- Weight/Force Signal AO/Digit Transmission.
- Setpoint DO Output.
- Weight/Force Limit DO Alarm Mode.
- Weight/Force Increment DO Output Mode.
- Weight/Force Decrement DO Output Mode.
- Weight/Force Section DO Output Mode.
Main Features:
| 1 | EMC design with high anti-jam for industrial environment. |
| 2 | DC24V power input with reverse polarity protection. |
| 3 | 32-bit ARM CPU with 48MHz clock & high arithmetic speed |
| 4 | 5 Red LED digital tubes for English&digit display. |
| 5 | 24-bit ∑-△ADC with internal resolution 1/1,000,000. |
| 6 | High sampling frequency 1280Hz. |
| 7 | Optional Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response. |
| 8 | Auto Zero Tracking. |
| 9 | Load Calibration, Data Calibration & Segmenting Correction.Definable AO/COM[Communication Port]. |
Technical Specifications
- Power Supply: DC24V±20%, Max. 5W.
- Loadcell Excitation Voltage/Current: DC5V/120mA.
- 8 Loadcells[350Ω] connectable.
- Transmitter Excitation Voltage/Current: DC12V/100mA.
- Optional weighing/force input signal mV, V and mA.
- 【mV】Signal Input Range: 0~19.5mV.
- 【V】Signal Input Range: 0~2.5V, 0~5V, 0~10V.
- 【mA】Signal Input Range: 0~20mA.
- 2 Normally open/closed Relays [DO]: AC250V/DC24V, 1A.
- 1 Analog Signal Output [AO]: 0~20mA, 0.05%FS.
- COM1: RS232.
- COM2: RS485.
- Connect Host IPC[Modbus] & Remote Display.
- Outline Size [W×H×D]: 107 × 60 × 100 mm.
- Panel Cut-out Size [W×H]: 94 × 47 mm.
- Operating Temperature: -25℃～+45℃.
- Protection Level of Front Panel: IP65.
- Accuracy Grade: III.
- Verification Accuracy: 0.03%.
- Static Weighing / Force Measuring Accuracy: 0.2%~0.5%.
