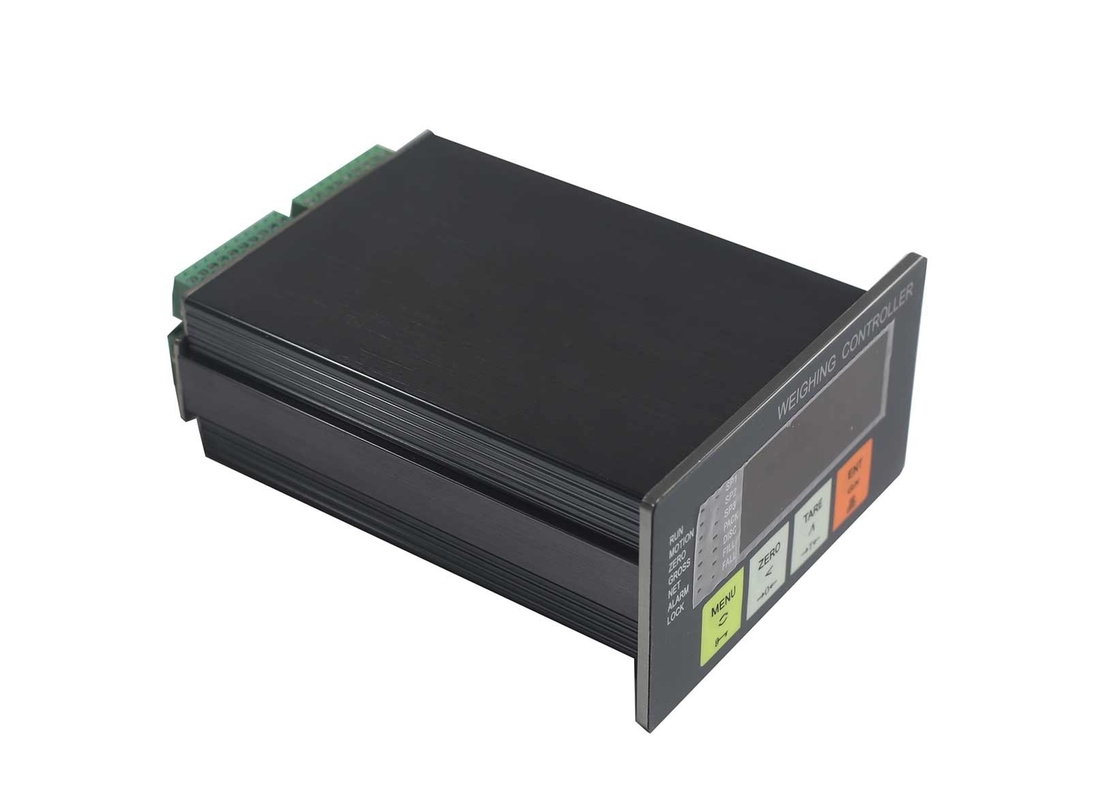

LED Force Measuring Weighing Indicator Controller Peak Value Detection / Display Holding
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | SUPMETER |
| Certification: | CE |
| Model Number: | BST106-B60[F] |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 UNIT |
|---|---|
| Price: | 150USD PER UNIT |

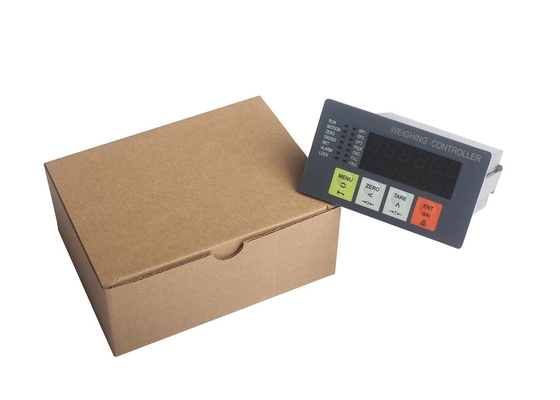

| Packaging Details: | CARTON PACKING |
| Delivery Time: | 5 WORKING DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 1000 UNIT PER MONTH |
|
Detail Information |
|||
| Material: | Steel | Display: | LED |
|---|---|---|---|
| Communication: | RS485 | Weight: | 0.5kg |
| Explosion Proof: | Available | ||
| High Light: | digital weighing controller,crane weight indicator |
||
Product Description
LED Force Measuring Weigh Controller Material : steel Power:DC24V Commnication Port :RS232 AO[4-20mA]
Main Applications
- Positive&Negative Direction Real-time Force Value Display.
- Peak Value Detection / Display Holding.
- DO Alarm Output.
- Force Signal AO/Digit Transmission.
- Positive/Negative/Double Direction Modes.
- Threshold / DI Pulse / DI Switch / DI Jump Start&Stop Modes
- Technical Specification
| 1 | Power Supply: DC24V±20%, Max. 5W. |
| 2 | Loadcell Excitation Voltage/Current: DC9V/120mA. |
| 3 | 4 Loadcells[350Ω] connectable. |
| 4 | Force Signal Input Range: 0~22.5mV. |
| 5 | 6 Normally Open Switch Inputs [DI]. |
| 6 | 5 Normally Open Relay Outputs [DO]: AC250V/DC24V, 1A. |
| 7 | 1 Analog Signal Output [AO]: 4~20mA, 0.05%FS. |
| 8 | COM1: RS232. |
| 9 | COM2: RS485. |
| 10 | Connect Host IPC[Modbus] & Remote Display. |
| 11 | Outline Size [W×H×D]: 110 × 62 × 150 mm. |
| 12 | Panel Cut-out Size [W×H]: 94 × 47 mm. |
| 13 | Operating Temperature: -25℃～+45℃ |
| 14 | Protection Level of Front Panel: IP65. |
| 15 | Accuracy Grade: III. |
| 16 | Verification Accuracy: 0.03%. |
| 17 | Static Force Measuring Accuracy: 0.2%~0.5%. |
Main Specification:
- EMC design with high anti-jam for industrial environment.
- DC24V power input with reverse polarity protection.
- 32-bit ARM CPU with 48MHz clock & high arithmetic speed.

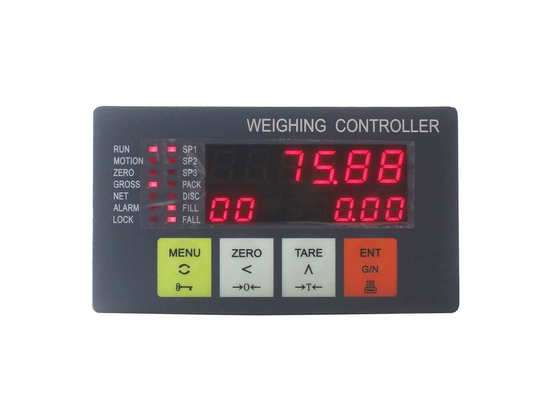

- 6+8 Red LED digital tubes for English&digit display.
- 24-bit ∑-△ADC with internal resolution 1/1,000,000.
- High sampling frequency 3200Hz.
- Optional Special Anti-vibration Digital Filtering Algorithm for precise force measuring, stable display and rapid response
- Auto Zero Tracking.
- Load Calibration, Data Calibration & Segmenting Correction.
- Definable AO/COM[Communication Port].
Optional:
1 definable AO(4-20mA)
- Main Applications: Positive&Negative Direction Real-time Force Value Display, Peak Value Detection / Display Holding, DO Alarm Output and AO/Digit Transmission.
- Optional Peak Detection Modes: Positive Direction Mode / Negative Direction Mode / Double Direction Mode.
- Optional Peak Detection Start&Stop Modes: Threshold Mode / DI Pulse Mode / DI Switch Mode / DI Jump Mode.
- EMC design with high anti-jamming capability, suitable for industrial environment.
- 32-bit ARM CPU with 48MHz clock & high arithmetic speed.
- 6+8 Red LED digital tubes for English character and digit display.
- English keypad for Menu&Shortcut mode operation with key tone.
- 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 3200Hz.
- Special anti-vibration digital filtering algorithm for ensuring the force measuring stability and accuracy when there is strong vibration on the the force measuring equipment, and the rapid response capability when the force signal changes.
- Max. Connection Quantity: 4 Loadcells (350Ω).
- Zero Upon Power Up, Zero Auto-tracking, Manual/Auto Zero and Zero Calibration available.
- Load Calibration, Data Calibration and Segmenting Span Correction available.
- Optional Data Calibration and Segmenting Span Correction functions.
- Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing functions available.
- 6 Normally open switch inputs [DI] and 5 normally open relay switch outputs [DO].
- 1 Optional and definable analog signal output [AO: 4~20mA].

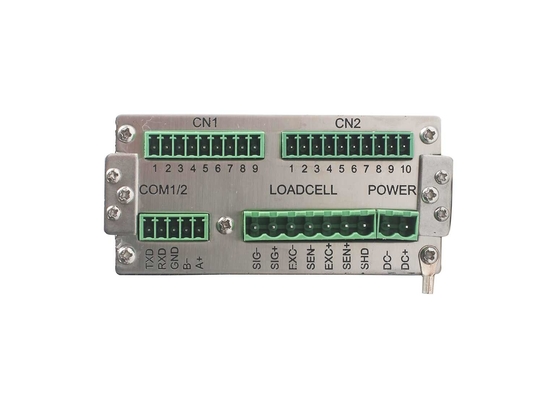

- 2 Communication ports [RS232&RS485] for connecting Host IPC/PLC and LED Remote Display.
- With the multitasking mode, the measuring&control process will not be interrupted by parameter setting and the other operations.
