Mini Force Sensor Measurement Indicator

Product Description

Mini Force Sensor Measurement Indicator

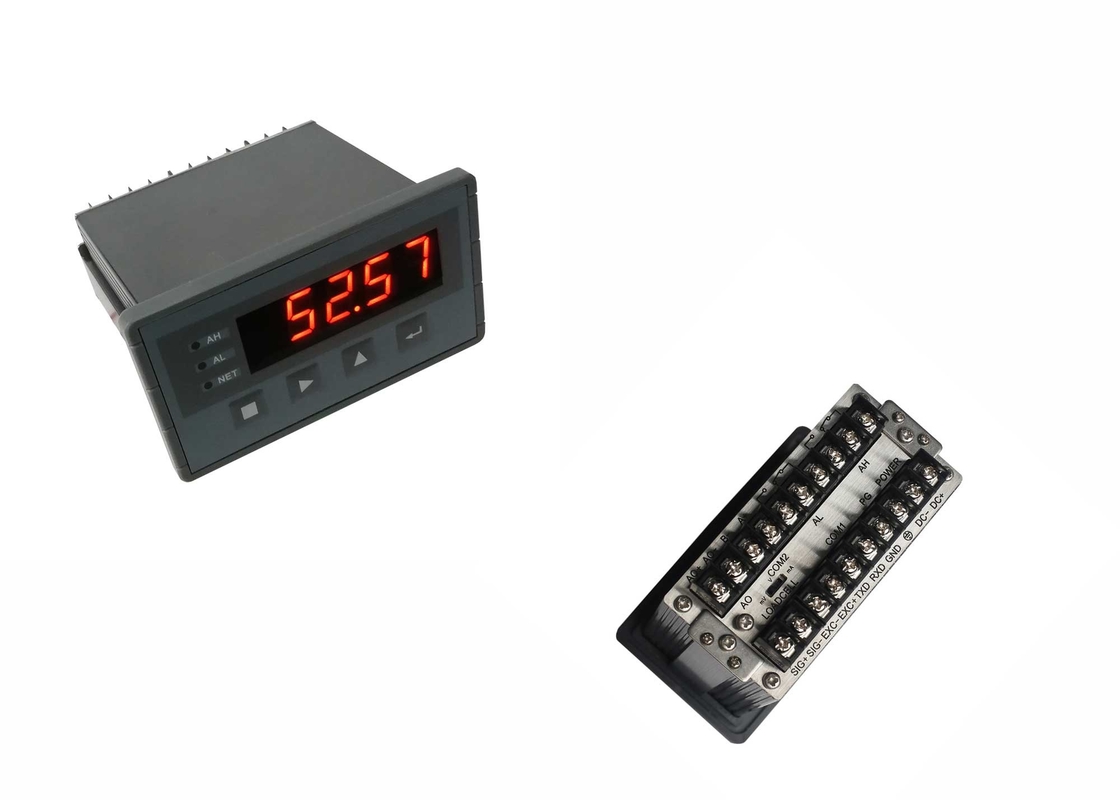

Weight / Force Display Digital Scale Indicator With Red Led Digital Tubes , Mini Digital Scale Indicator



Main Application:

H16[A]: Single-weighing-hopper/bag Ration Packing Scale

H16[D]: Loss-in-weighing Ration Packing Scale





Main Features:

1:32-bit ARM CPU with 72MHz clock and high arithmetic speed.

2: Auto Zero Tracking

3: Fall Value Auto Correction

4: Target Batch Count & Target Batch Weight Control

5: Auto Pause for Deviation Alarm

6: Auto Re-feed for Negative Deviation Alarm

7: 3-speed[high/medium/low]feeding control by DOs or AOs

8: Definable AO/COM[Communication Port]





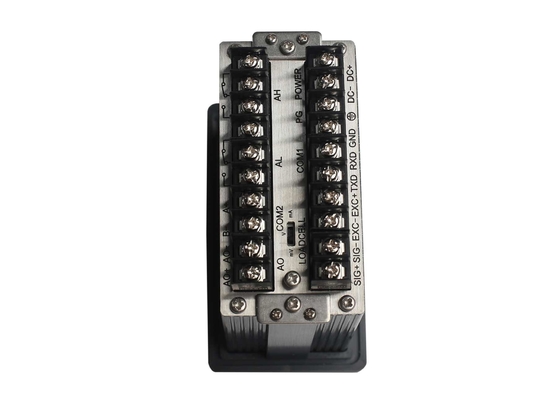

Technical Specifications:

Power Supply	AC24V±20%
Display	5 Red Led Digital Tubes for English&Digit Display
Sampling Frequency	1280Hz
A/D Convert	24-bit
Keypad	4 keys for Shortcut mode operation with key tone
Excitation Voltage Output of Loadcell	DC5V
Max. Connection number of Loadcell	8 Loadcells (350Ω)
[mV]Signal Input Range	0-19.5mV
DO	2 Normally Open Transistor Switch Outputs
AO	1Analog Signal Output: 4~20mA.

Communication Port	COM1:RS232;COM2:RS485
Outline Dimension	107 × 60 × 100 mm (W×H×D)
Net Weight	Approx. 1.2kg
IP Grade	IP65



Keypad Operation

   If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 System Calibration’ & ‘F6 Factory Adjustment’, the controller will return to ‘Main Display Interface’ automatically.



Menu Operation
Key Name	Description
【■】	Enter Main Menu / Exit.
【8】	Enter / Save / Alarm Acknowledge.
【►】	Cursor shifts right. Display the previous option.
【▲】	Display the next interface or option. Digit input: +1 ( 0~9 loop).



Quick Operation Mode A Parameter [904]= ‘0. dE’ [Default Set]
Key Name	Description
【■】*	Key-locking. Key-unlocking.
【►】 (【SET】)	Setpoint parameters setting.
【►】* (【ZERO】) (【→0←】)	[-ZEro]: Zero Calibration with Power-down Protection and Clearing Tare Weight. [≡ZEro]: Zero Fine Adjustment without Power-down Protection and without Clearing Tare Weight. The controller will switch to Gross Weight display.
【▲】* (【TARE】) (【→T←】)	[≡tArE]: Manual Tare without Power-down Protection. [-PStr]: Preset Tare Weight with Power-down Protection. [-rStr]: Clear Tare Weight with Power-down Protection. The controller will switch to Net Weight display.
【8】 (【G/N】)	Gross Weight / Net Weight / Net Weight Peak Value display switch.
【8】* (【CLS】)	[-CLS] : Clear Screen [Clear the display value of Peak Value].





Weight / Force Display Digital scale indicator with Red Led Digital Tubes , Mini Digital Scale Indicator



Operation Interface Diagram:





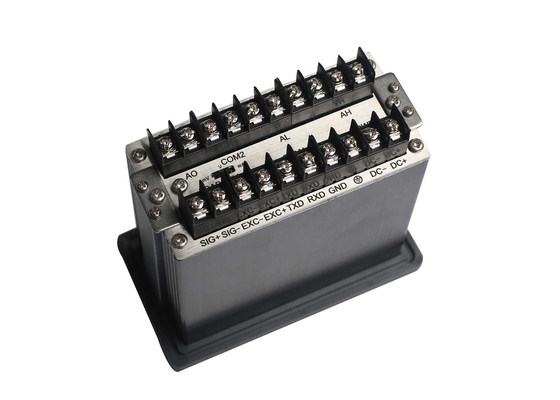

Installation:

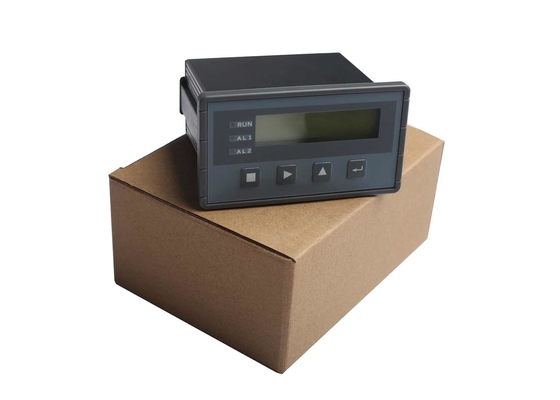

Package:
