Checkweigher Indicator Controller , Touch Screen Weight Indicator Controller
Product Details:
| Place of Origin: | China |
| Brand Name: | Supmeter |
| Certification: | CE |
| Model Number: | BST106-M10[CK] |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 1pcs/box |
| Delivery Time: | 3-30 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 3000pcs/month |
|
Detail Information |
|||
| Power Supply: | DC24V±20% | Max. Power Consumption: | 10W |
|---|---|---|---|
| Operating Temperature: | -25℃ To +45℃ | Storage Temperature: | -30℃ To +60℃ |
| Relative Humidity: | Max. 85%RH | IP Grade: | IP65 |
| High Light: | belt speed sensor,checkweigher load cell indicator |
||
Product Description
TFT Touch Screen Weighing Indicator Controller for Auto Checkweigher, With High Speed
Main Application: Suitable for Auto Checkweigher. Optional Application Modes: Rejecting Mode [Low/Normal/High] and Weight Sorting Mode with 3-12 Sorting Areas. Optional Control Modes for Feeding /Checking/Sorting Conveyors: DO Switch Control Mode, PWM Speed Regulation Mode and AO[0-10V] Speed Regulation Mode.
Technical Specifications:
| Size Option | 7 inch 800×480 | 10 inch 1024×600 |
| Display | Weight Display Range | -99,999~+999,999 |
| Setting Range 1~999,999. | Setting Range 1~999,999. | |
| Scale Division | Optional 1, 2, 5, 10, 20, 50 | |
| Display Resolution | 1/100,000 | |
| Loadcell Interface | Max. Connection Quantity | 16 Loadcells (350Ω) |
| Excitation Voltage/Max. Current | DC5V, 250mA | |
| Signal Input Range | 0~12.5mV | |
| Output Sensitivity of Loadcell | 1.0~2.5mV/V | |
| Sampling Frequency | 800Hz | |
| Non-linearity | 0.005%FS | |
| Switch&Analog Signal Interface | DI | 7 Normally Open Switch Inputs |
| DO | 18 Normally Open Transistor Switch Outputs [DO]: DC24V, 500mA | |
| AO | 4 Analog Signal Output [AO]: 0~10V/Max.50mA | |
| Digital Communication Interface | COM1[RS232]&COM2[RS485] | For connecting Host IPC/PLC and LED Remote Display |
| COM[RS232] | For connecting RS232 Serial Printer with Baud Rate ‘9600bps’, Parity Check ‘None’, 8 Data Bits and 1 Stop Bit. | |
| USB1 | For connecting USB mouse, downloading HMI software from U-disk and copying data to U-disk |

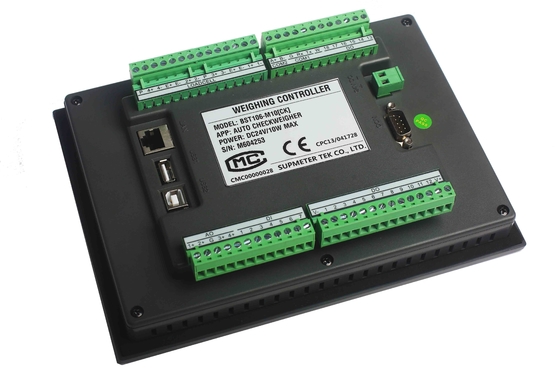

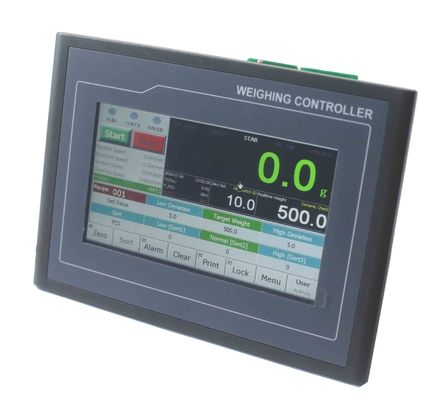

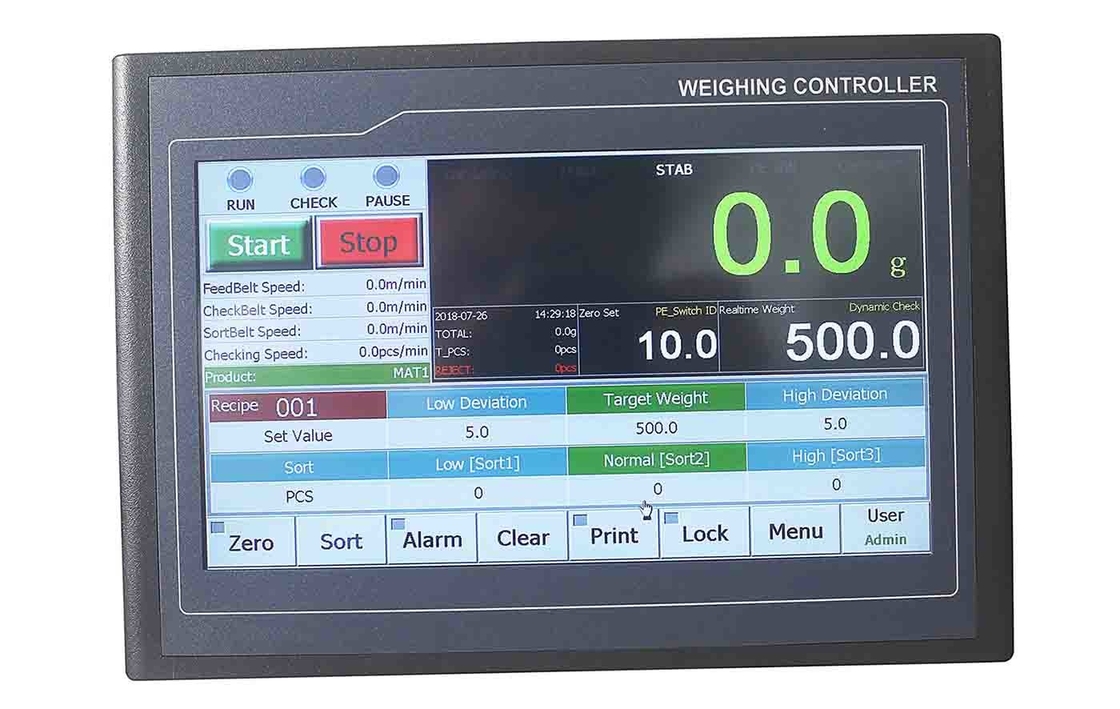

Photo:

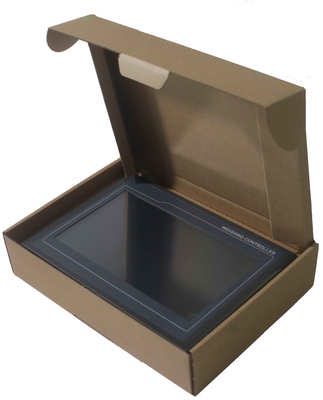

Package:
Mode Of Delivery:
FAQ:
1. What detailed information do I need to provide if I want to place an order?
We need to know the following information: Capacity, Usage and other related parameters you need.
2. Do you have any discount?
Yes, if you buy large QTY, please send us a email, we will give you a big discount.
3. What terms of payment are available?
We accept T/T, L/C, Trade assurance, Secure payment, Western Union,etc.
4.When will you arrange the production?
We will arrange the production immediately after receiving your payment.
5. How do you ensure good product quality?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.
6. How long is the warranty period?
The warranty period for our products is 12 (twelve) months.
If the products from SUPMETER are proved to be unable to work normally due to unartificial reasons, and the problems can't be solved by customers under the technical support from SUPMETER, then customers can send the problematic items back to SUPMETER. SUPMETER is RESPONSIBLE to MEND (or REPLACE when necessary) them FREE OF CHARGE.
(Note: if after checking, the returned goods are proved to be in good condition, the trouble is resulted to be caused by improper operation by customers, SUPMETER is IRRESPONSIBLE to bear the shipping & other charges related to the returning.)
