CE Electronic Weighing Indicator With MODBUS RTU / Overlay Customization

CE Electronic Weighing Indicator With MODBUS RTU / Overlay Customization

Product Details:

Place of Origin: China
Brand Name: Supmeter
Certification: CE
Model Number: BST106-B60(F)

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: 1pcs/box
Delivery Time: 3-30 working days
Payment Terms: T/T, Western Union
Supply Ability: 500pcs per month
Get Best Price Contact Now

Detail Information

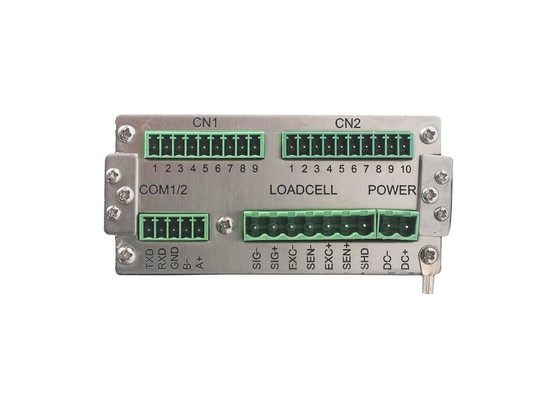

Power Supplier: DC24V Loadcell: 4 Loadcell Connectable(350ohm)
DI: 6 DO: 5
Communication: RS232 And RS485
High Light:

measurement control systems

,

force sensor measurement indicator

Product Description

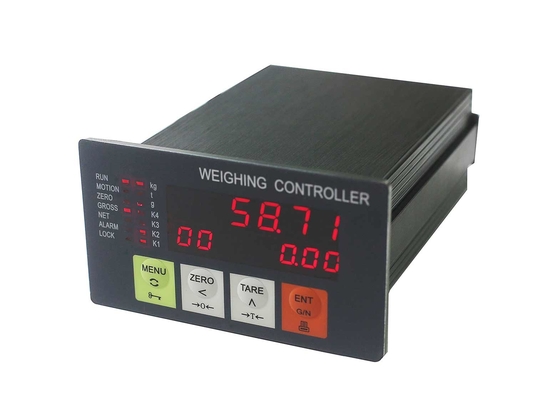

CE Electronic Weighing Indicator With MODBUS RTU / Overlay Customization

Force Measuring Controller With LED Display, RS232, RS485, MODBUS RTU, Overlay Customization



Main Features:

  • Main Applications: Positive&Negative Direction Real-time Force Value Display, Peak Value Detection / Display Holding, DO Alarm Output and AO/Digit Transmission.
  • Optional Peak Detection Modes: Positive Direction Mode / Negative Direction Mode / Double Direction Mode.
  • Optional Peak Detection Start&Stop Modes: Threshold Mode / DI Pulse Mode / DI Switch Mode / DI Jump Mode.
  • EMC design with high anti-jamming capability, suitable for industrial environment.
  • 32-bit ARM CPU with 48MHz clock & higher arithmetic speed.
  • 6+8 Red LED digital tubes for English character and digit display.
  • 4-key English keypad.
  • Menu&Shortcut mode operation with key tone.
  • 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 3200Hz.
  • Max. Connection Quantity: 4 Loadcells (350Ω).
  • Auto Zero Initial Calibration after Power-on, Auto Zero Tracking, Zero Fine Adjustment, Zero Calibration and Load Calibration functions available.
  • Optional Data Calibration and Segmenting Span Correction functions.
  • Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing functions available.
  • 6 Normally open switch inputs [DI] and 5 normally open relay switch outputs [DO].
  • 1 Optional and definable analog signal output [AO: 4~20mA].
  • 2 Communication ports [RS232&RS485] for connecting Host IPC/PLC and LED Remote Display.
  • With the multitasking mode, the measuring&control process will not be interrupted by parameter setting and the other operations.



Optional Mode:

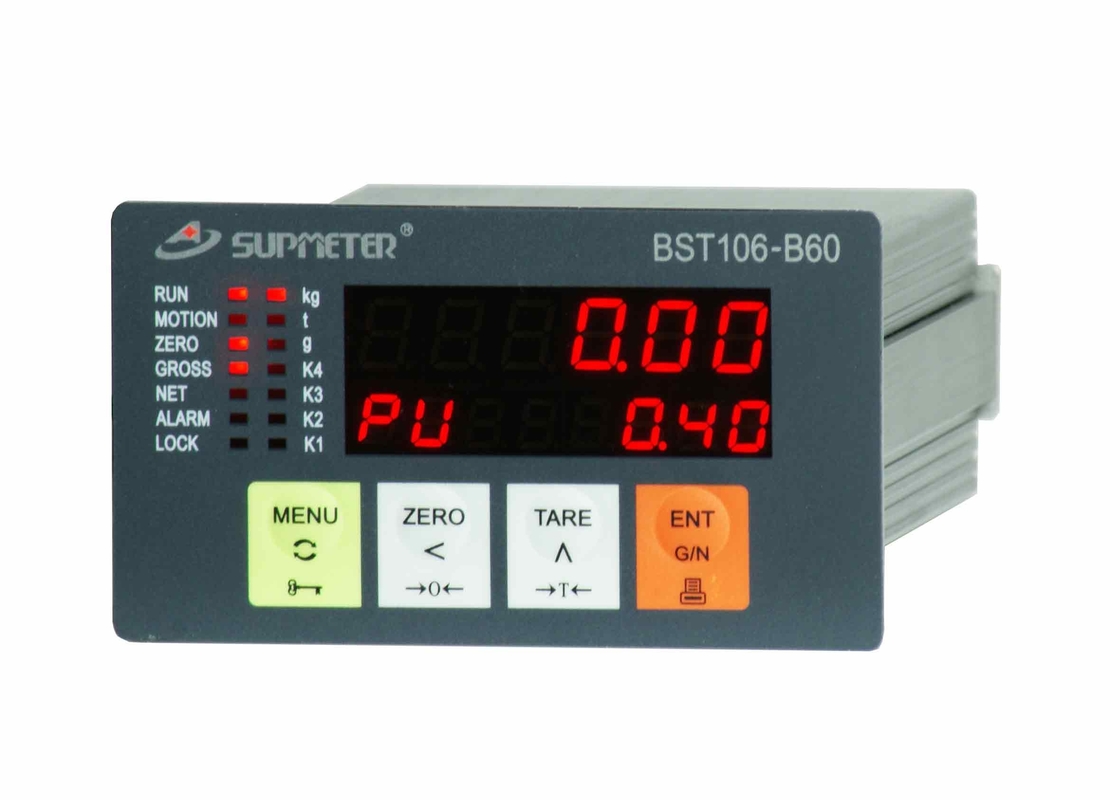

BST106-B60[F]

CE Electronic Weighing Indicator With MODBUS RTU / Overlay Customization 0

Demension:



Outline Size

W×H×D[mm]

Front Panel Size

W×H[mm]

Box Body Size

W×H[mm]

Panel Cut-out Size

W×H[mm]

110×62×150 110×62 93×46 94×47



Explosion-proof one: dCX106-B60[F]



CE Electronic Weighing Indicator With MODBUS RTU / Overlay Customization 1

Demension:

Outline Size

W×H×D[mm]

Mounting Size

W×H[mm]

Mounting Hole Size

[mm]

Cable Joint

Thread Size

[inch]

Cable Diameter

[mm]

256×290×166 150×225 Ф9 G1/2 Ф8~13
