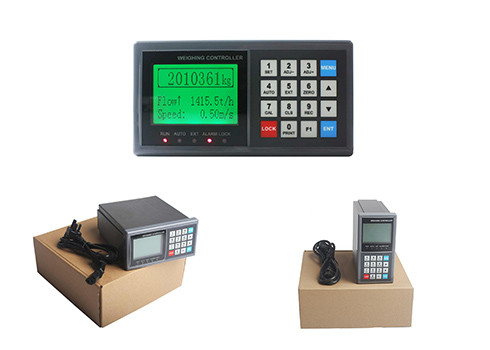

Panel Mounting 32bit ARM CPU Belt Scales Controller With Modbus RTU

Panel Mounting 32bit ARM CPU Belt Scales Controller With Modbus RTU

Product Details:

Place of Origin: China
Brand Name: Supmeter
Certification: CE
Model Number: BST100-E11

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: 238-430usd/pcs
Packaging Details: 1pcs/box
Delivery Time: 3-10 working days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/month
Get Best Price Contact Now

Detail Information

Model Number: BST100-E11 Product Name: Belt Weighfeeder Controller
Packing: 1pcs/box MOQ: 1pcs
Open Switch Inputs: 3DI Open Relay Output: 4DO
High Light:

32bit ARM CPU Belt Scale Controller

,

CE LCD Display Belt Scale Controller

,

EMC design belt weigher indicator

Product Description

Panel Mounting 32bit ARM CPU Belt Scales Controller With Modbus RTU

Panel Mounting Belt Scale Conveyor Weighing Controller With Modbus For Coal Mine



Main Features:

  • Suitable for Ration Belt Weighfeeder with Ration Flow Feeding & Ration Weight Batch Control.
  • EMC design with high anti-jam for industrial environment.
  • 32-bit ARM CPU with 72MHz clock & high arithmetic speed.
  • 128×64 LCD display screen with 7 background colors.
  • 24-bit ∑-△ADC with internal resolution 1/1,000,000.
  • High sampling frequency 400Hz.
  • Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
  • Zero Calibration & Auto Zero Tracking.
  • Span Calibration & Segmenting Correction.
  • Speed Calibration & Belt Length Calibration.
  • The feeder and belt weigher can be controlled by DI&DO.
  • Quick and steady PID ration feeding control.
  • Queryable Records per shift/day/month of a year.
  • Definable DI/DOAO/COM[Communication Port].

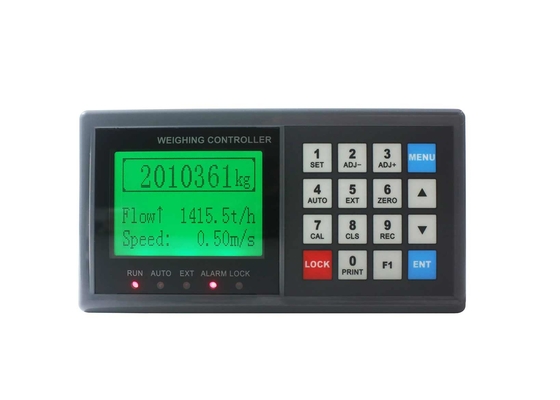

Model Horizontal Panel-mounting User Interface



Panel Mounting 32bit ARM CPU Belt Scales Controller With Modbus RTU 0





Keypad Operation

Menu Operation
Key Name Description

【MENU】

(【ESC】)

Enter Main Menu.

Exit.

【ENT】 Enter/Save.
【▲】

Cursor shifts up or left.

Display the previous interface or option.

【▼】

Cursor shifts down or right.

Display the next interface or option.

【0~9】 Digit Input.
Quick Operation
【LOCK】
  • Key-locking.
  • Key-unlocking.
【F1】 Return to the initial display interface.
【SET】 Flow Set Value Setting.
【ADJ-】 Control Current -1mA.
【ADJ+】 Control Current +1mA.
【AUTO】 ‘Manual/Auto’ Control Mode Selection.
【EXT】 ‘Internal/External’ Flow Set Mode Selection.
【ZERO】 Zero Calibration.
【CAL】 Dynamic Span Calibration.
【CLS】 Clear Screen: Clear display value of Totalized Weight.
【REC】 Query and print Weight Record.
【PRINT】 Print.



Ration Flow Auto-Feeding System

Panel Mounting 32bit ARM CPU Belt Scales Controller With Modbus RTU 1
