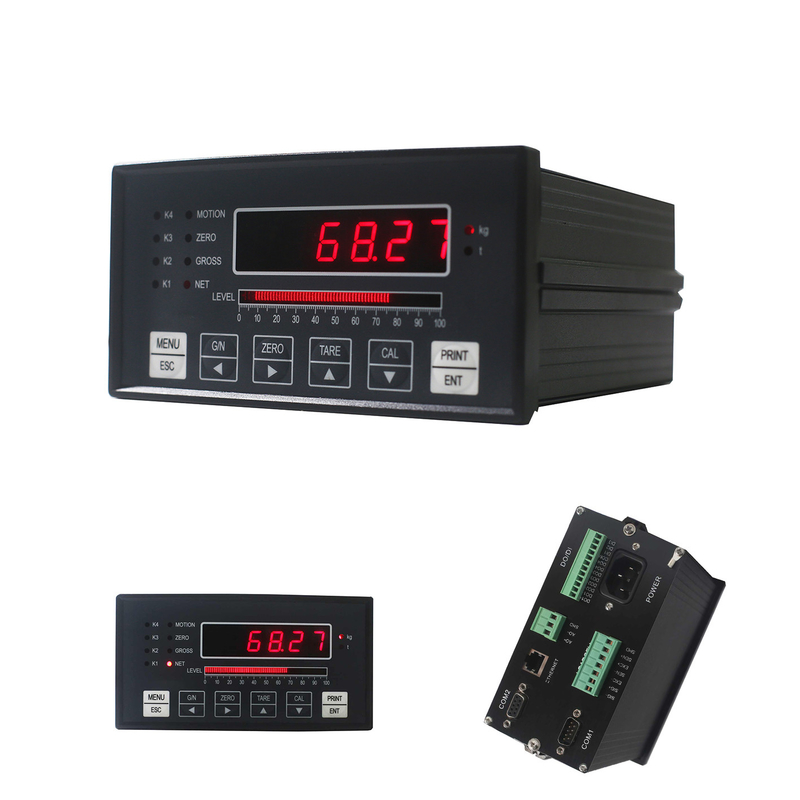

350Ohm Weighing Indicator
Product Details:
Place of Origin: | China |
Brand Name: | Supmeter |
Certification: | CE |
Model Number: | BST106-B11 |
Payment & Shipping Terms:
Minimum Order Quantity: | 10 |
---|---|
Price: | Negociation |
Packaging Details: | carton box |
Delivery Time: | 5-8 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 1000pcs/month |
Detail Information |
|||
Power Supply: | AC220V | Display Type: | LED Display |
---|---|---|---|
Loadcell Connect Number: | 8*loadcells (350Ohm) | Analogue Output: | 1 (4~20mA) |
DI: | 3 | DO: | 4 |
High Light: | digital weighing controller,programmable weighing controller |
Product Description
350Ohm Weighing Indicator
Multi-function weighing indicator for hopper weighing, platform weighing, batching weighing
Application:
For: Hopper Scale / Platform Scale
Hopper Ration Feeding Scale with Single-Material&Single-speed Feeding
Hopper Ration Batching Scale with 3-Material&Double-speed Feeding
Axle Weighing Scale
Specification:
Power Supply | AC220V±15%, 50Hz±2% |
Display | 6-bit red LED digit display screen |
Kaypad | 6 keys for Menu&Shortcut mode operation with key tone |
Excitation Voltage Output | DC10V |
Max. Connect No. of Loadcell | 8 Loadcells (350Ω) |
A/D Convert | 24-bit |
Sampling Frequency | 800Hz |
Zero Drift | ±0.1μV/°C RTI (Relative to Input) |
Gain Drift | ±5ppm/°C |
Non-linearity | ±0.01%FS |
AO | 1 AO for additional option |
DI | 3 Normally Open Switch Inputs |
DO | 4 Normally Open Relay or Transistor Switch Outputs |
Communication Port | COM1: Fixed configuration RS232&RS485. Free to use one of them; COM2 Optional: RS232/RS485/RS422/Profibus-DP/CANBUS/Ethernet modules |
Connectable | IPC/PLC, Remote Display&Operation Terminal, Serial Printer and Wireless Module |
Report Print | Hopper Weighing Report, Ration Feeding&Batching Report and Axle Weighing Report can be printed |
Outline Dimension | 160 × 84 × 188 mm (W×H×D) |
Weight | Approx. 1.5kg |
Service Temperature | -20°C to +40°C |
IP Grade | IP50 |
Package & Shipping:
1pcs per box
1 carton can put 10pcs BST106-B11
Delivery:
