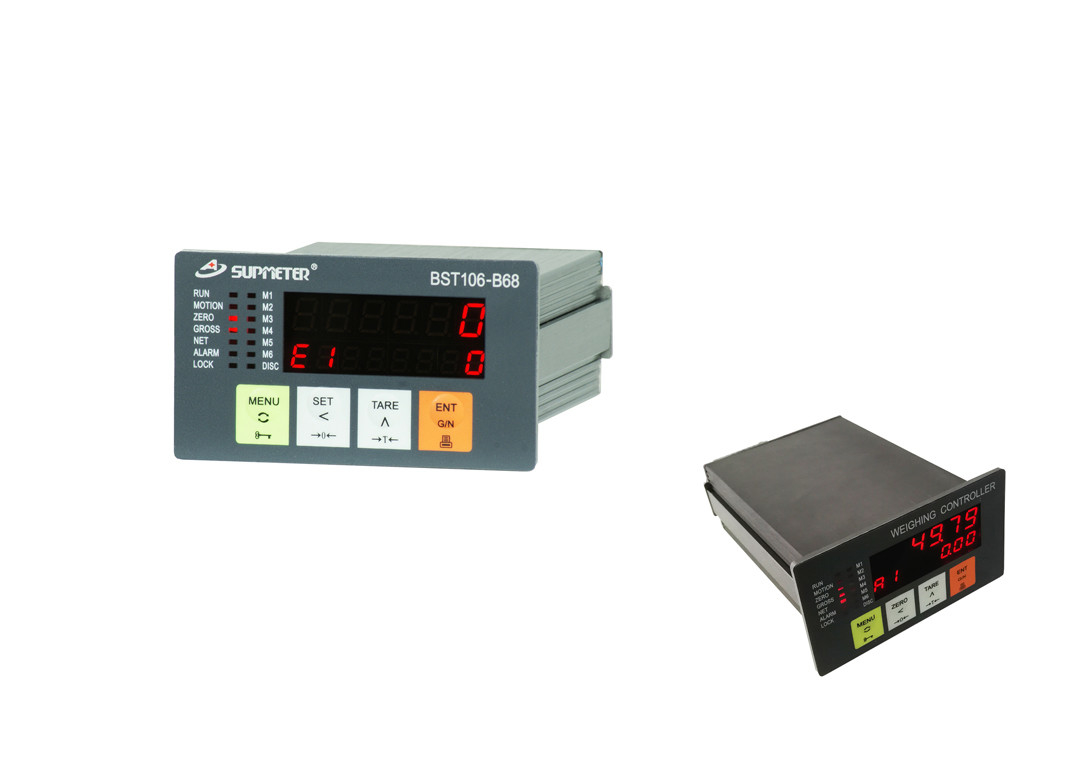

Modbus RTU Communication Bagging Controller
Product Details:
| Place of Origin: | China |
| Brand Name: | SUPMETER |
| Certification: | CE |
| Model Number: | BST106-B68[U] |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Negociation |
| Packaging Details: | packed in carton box |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500pcs/month |
|
Detail Information |
|||
| Power Supply: | DC24V | Display: | Red LED DISPLAY |
|---|---|---|---|
| Sampling Frequency: | 400Hz | Max. Connection Quantity: | 4 Loadcells (350Ω) |
| Communication: | RS232 & RS485 | Connectable: | Host IPC/PLC And LED Remote Display |
| Highlight: | packing controller,electrical weighing system |
||
Product Description
Product Description:
Suitable for Hopper Ration Batching Scale with 4-material, Single-speed or Double-speed Feeding.
| Power Supply | DC24V±20% |
| Display | 14-bit red LED digit display |
| Kaypad | 4 keys for Menu&Shortcut mode operation with key tone |
| Excitation Voltage Output of Loadcell | DC9V |
| Max. Connection number of Loadcell | 4 Loadcells (350Ω) |
| A/D Convert | 24-bit |
| Sampling Frequency | 200Hz |
| DI | 6 Normally Open Switch Inputs |
| DO | 8 Normally Open Transistor Switch Outputs |
| AO | 1 Optional and Definable Analog Signal Output: 4~20mA. |
| Communication Port | COM1: RS232/RS485 |
| Outline Dimension | 110 × 62 × 150 mm (W×H×D) |
Outline Size:
|
Outline Size W×H×D[mm] |
Front Panel Size W×H[mm] |
Box Body Size W×H[mm] |
Panel Cut-out Size W×H[mm] |
| 110×62×150 | 110×62 | 93×46 | 94×47 |
