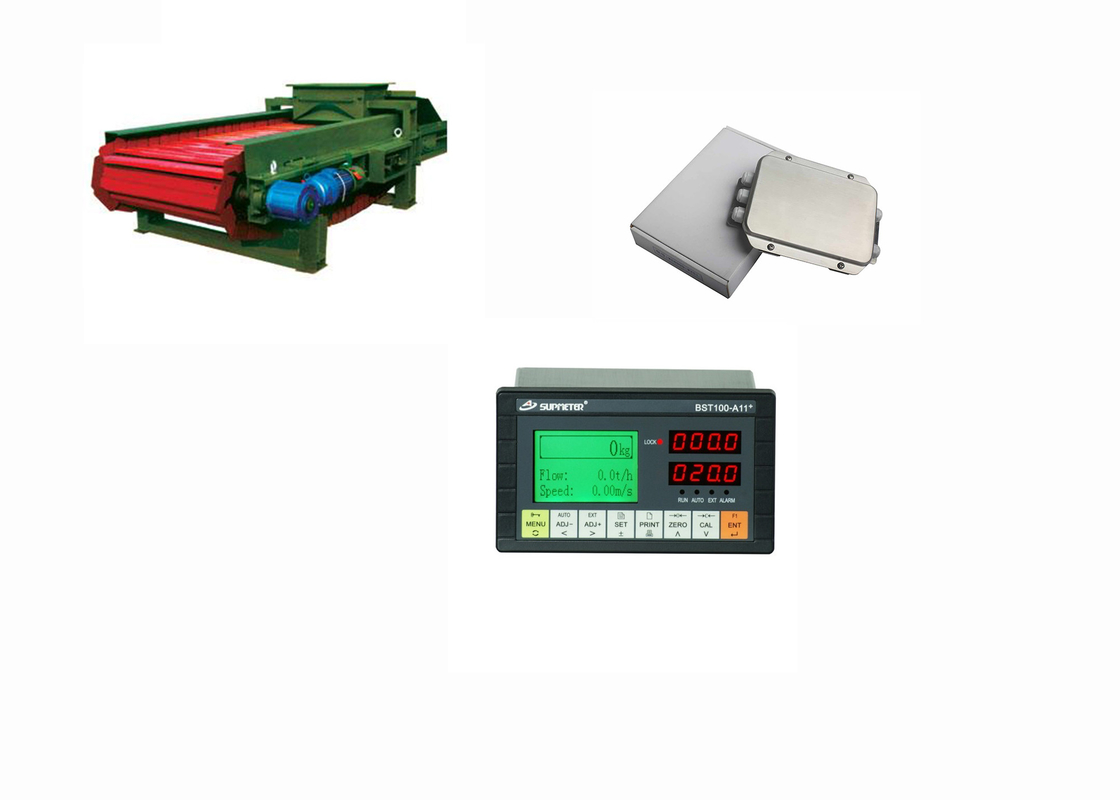

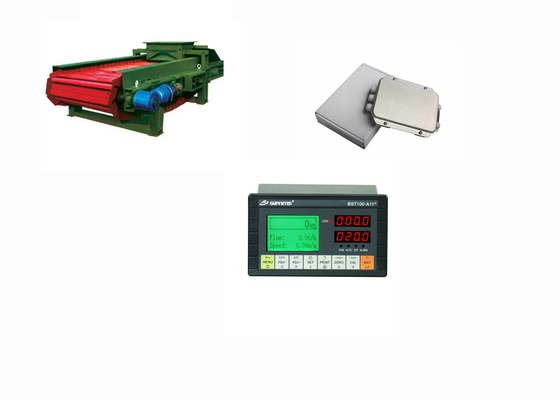

    Weigh Feeder Belt Scale Controller With Remote Disaplay , Long Life Time

    Product Details:

    Place of Origin: China
    Brand Name: Supmeter
    Certification: CE
    Model Number: BST100-A11

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: negotiation
    Packaging Details: one pc per carton
    Delivery Time: 3workdays
    Payment Terms: Western Union, T/T
    Supply Ability: 10000pcs/month
    Get Best Price Contact Now

    Detail Information

    Power Supply: AC220V Accuracy Grade: 0.5
    DI: 3 Communication Port: COM1:Optional RS232/RS485/RS422/ Profibu-DP/Ethernet; COM2:RS485
    High Light:

    belt weigher indicator

    ,

    digital indicator with remote display

    Product Description

    Weigh Feeder Belt Scale Controller With Remote Disaplay , Long Life Time



    Quick And Steady PID Belt Scale Weigh Feeder ControllerWith Remote Disaplay



    Display Interfaces

    The Numeric Display 1 displays Totalized Weight value and the Numeric Display 2-3 displays the following data:

    NO. Display iterms Sign Range
    6 Totalized Weight of Current Batch P= 0~999999
    7 AD Value Ad= 0~65535
    8 Zero Value Zr= 0~60000
    9~11 DI State dI1-/dI2-/dI3- -oFF/-on-
    12~15 DO State do1-/do2-/do3-/do4- -oFF/-on-
    16 AI Signal AI1= 4.00~20.00mA
    17~19 AO Signal Ao1=/Ao2=/Ao3= 4.00~20.00mA
    20 Totalized Weight High Speed Pulse HP 0~999999 Pulse
    21 Totalized Weight Low Speed Pulse LP 0~999999 Pulse
    22 Date 20YY.MM.DD Year. Month. Day
    23 Time HH.MM.SS-W Hour. Minute. Second-Week
    24 Totalized Weight of Current Shift t= 0~99999.9t


    Technical Specification

    • Power Supply: AC220V±15%, 50/60Hz, Max. 15W.
    • Loadcell Excitation Voltage/Current: DC10V/250mA.
    • 8 Loadcells[350Ω] connectable.
    • Weighing Signal Input Range: 0~25mV.
    • Speed Sensor Excitation Voltage/Current: DC12V/100mA.
    • Speed Signal Input Range: 0.5~3000Hz.
    • 3 Normally Open Switch Inputs [DI].
    • 4 Normally Open Relay Outputs [DO]: AC250V/DC24V, 1A.
    • 1 ‘Totalized Weight’ Pulse Output [PO]: DC5~24V, 100mA.
    • 2 ‘PID Control’ Analog Output [AO]: 4~20mA, 0.05%FS.
    • 1 ‘Flow Set’ Analog Input [AI]: 4~20mA, 0.05%FS.
    • COM1: Optional RS232/RS485/RS422/Profibus-DP/Ethernet.
    • COM2: RS232.
    • Connect Host IPC, Remote Display, Printer&Wireless Module.
    • Outline Size [W×H×D]: 164 × 82 × 188 mm.
    • Panel Cut-out Size [W×H]: 153 × 77 mm.
    • Operating Temperature: -25℃~+45℃.
    • Protection Level of Front Panel: IP65.
    • Accuracy Grade: 0.5.
    • Accuracy of Flow Control: 0.5%~1.0%.



    Appendix A. Print Formats

    Weigh Feeder Belt Scale Controller With Remote Disaplay , Long Life Time 0









    Weigh Feeder Belt Scale Controller With Remote Disaplay , Long Life Time 1





    Model Panel-mounting Installation

    Weigh Feeder Belt Scale Controller With Remote Disaplay , Long Life Time 2







    Model Panel-mounting Terminal

    Weigh Feeder Belt Scale Controller With Remote Disaplay , Long Life Time 3





    Ration Flow Auto-Feeding System:

    Weigh Feeder Belt Scale Controller With Remote Disaplay , Long Life Time 4
