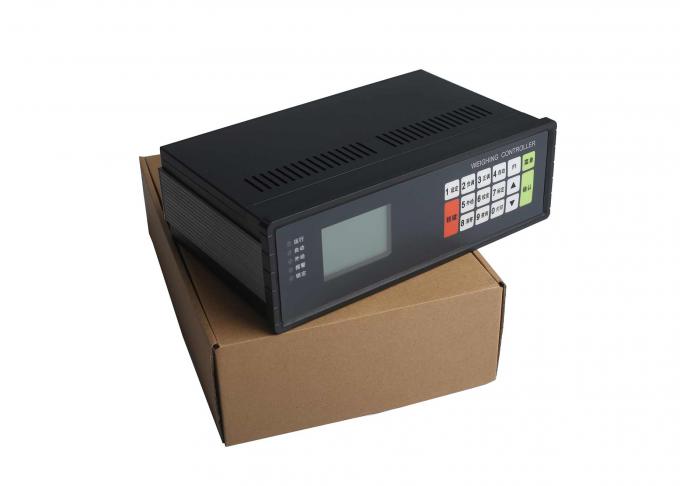

    8 Loadcell Connected Ration Belt Weigh Feeder Controller DC24V With Ao

    Ration Belt Weighfeeder Controller Belt Scale Controller With Weight Totalizing



    • Operating Specification
    • Operating Voltage: DC24±20%.
    • Max. Power Consumption: 10W.
    • Outline Size: 288×95×189mm [W×H×D].
    • Panel Cut-out Size: 281×88mm [W×H].
    • Operating Temperature: -25℃ to +45℃.
    • Storage Temperature: -30℃ to +60℃.
    • Relative Humidity: Max. 85%RH.
    • Protection Level of Front Panel: IP65.
    • Weight: Approx. 1.4kg.

    8 Loadcell Connected Ration Belt Weigh Feeder Controller DC24V With Ao 0

    Technical Specification

    • Executing Standard
    • CMC GB/T 7724-2008PRC National Standard.

    ² OMIL R50:1997International Recommendation.

    ² Accuracy Grade: 0.5.

    ² Accuracy of Flow Control: 0.5%~1.0%.

    • Display
    • 128×64 LCD display screen with 7 background colors for English display.
    • Display Refreshing Time: Setting Range 0.1~2.0s.
    • Kaypad
    • 16-key English keypad.
    • Menu&Shortcut operation with key tone.
    • Loadcell Interface
    • Excitation Voltage/Max. Current: DC10V/250mA [8-350Ω loadcells].
    • Signal Input Range: 0~25mV.
    • ∑-△ADC: 24-bit, 100,000 internal code used.
    • Sampling Frequency: 200Hz.
    • Zero Drift: ±0.1μV/℃ RTI (Relative to Input).
    • Gain Drift: ±5ppm/℃.
    • Non-linearity: 0.005%FS.
    • Speed Sensor Interface
    • Output Voltage/Max. Current: DC12V/100mA.
    • Speed Pulse Input Range: 0.5~3000Hz.
    • Switch Signal Interface
    • 3 Normally Open Switch Inputs [DI].
    • 4 Normally Open Relay Switch Outputs [DO]: AC250V/DC24V, 1A.
    • 1 ‘Totalized Weight High-speed Pulse’ Output [PO]: 100mA, DC5~24V; Weight per Pulse and Pulse Width can be preset.
    • Analog Signal Interface
    • Max.3 Definable ‘Flow/Control Current /…’ Analog Signal Outputs [AO]: 4~20mA, Non-linearity: 0.05%FS; AO3 is optional.
    • 1 Optional ‘Flow Setpoint’ Analog Signal Input [AI]: 4~20mA, Non-linearity: 0.05%FS.
    • Digital Communication Interface
    • COM1: Optional RS232/RS485/RS422/Profibus-DP/Ethernet modules.
    • COM2: RS232.
    • Connectable: IPC/PLC, LED Remote Display, Serial Printer and Wireless Module.
    • Report Print
    • Weight Records per shift/day/month of a year can be queried and printed.
    •


          Pictures
    8 Loadcell Connected Ration Belt Weigh Feeder Controller DC24V With Ao 1


         Operation Interface Diagram
    8 Loadcell Connected Ration Belt Weigh Feeder Controller DC24V With Ao 2



           Keypad Operation

    If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 Calibration’ & ‘F6 Factory Adj.’, the controller will return to ‘Main Display Interface’ automatically.


    Menu Operation
    Key Name Description

    【MENU】
    (【ESC】)

    Enter Main Menu.

    Exit.

    【ENT】 Enter/Save.
    【▲】

    Cursor shifts up or left.

    Display the previous interface or option.

    【▼】

    Cursor shifts down or right.

    Display the next interface or option.

    【0~9】 Digit Input.
    Quick Operation
    【LOCK】
    • Key-locking.
    • Key-unlocking.
    【F1】 Return to the initial display interface.
    【SET】 Flow Set Value Setting.
    【ADJ-】 Control Current -1mA.
    【ADJ+】 Control Current +1mA.
    【AUTO】 ‘Manual/Auto’ Control Mode Selection.
    【EXT】 ‘Internal/External’ Flow Set Mode Selection.
    【ZERO】 Zero Calibration.
    【CAL】 Dynamic Span Calibration.
    【CLS】 Clear Screen: Clear display value of Totalized Weight.
    【REC】 Query and print Weight Record.
    【PRINT】 Print.



           State Indication

    LED Lamp Description
    [RUN]

    ON: Weighing state.
    OFF: Stopping state.

    [AUTO]

    Feeding control mode:
    ON: Auto [PID].
    OFF: Manual.

    [EXT]

    Flow Set Mode:
    ON: External [AI: 4~20mA].
    OFF: Internal.

    [ALARM] Alarm.
    [LOCK]

    ON: Key-locked.
    OFF: Key-unlocked.


           Installation
    8 Loadcell Connected Ration Belt Weigh Feeder Controller DC24V With Ao 3
            Operation Procedure
    8 Loadcell Connected Ration Belt Weigh Feeder Controller DC24V With Ao 4

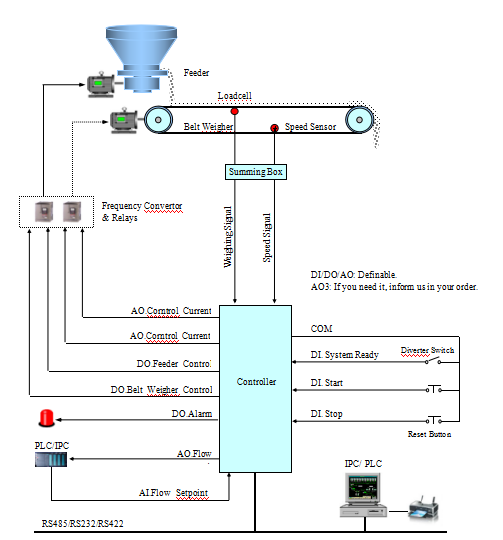

            Ration Flow Auto-Feeding System
