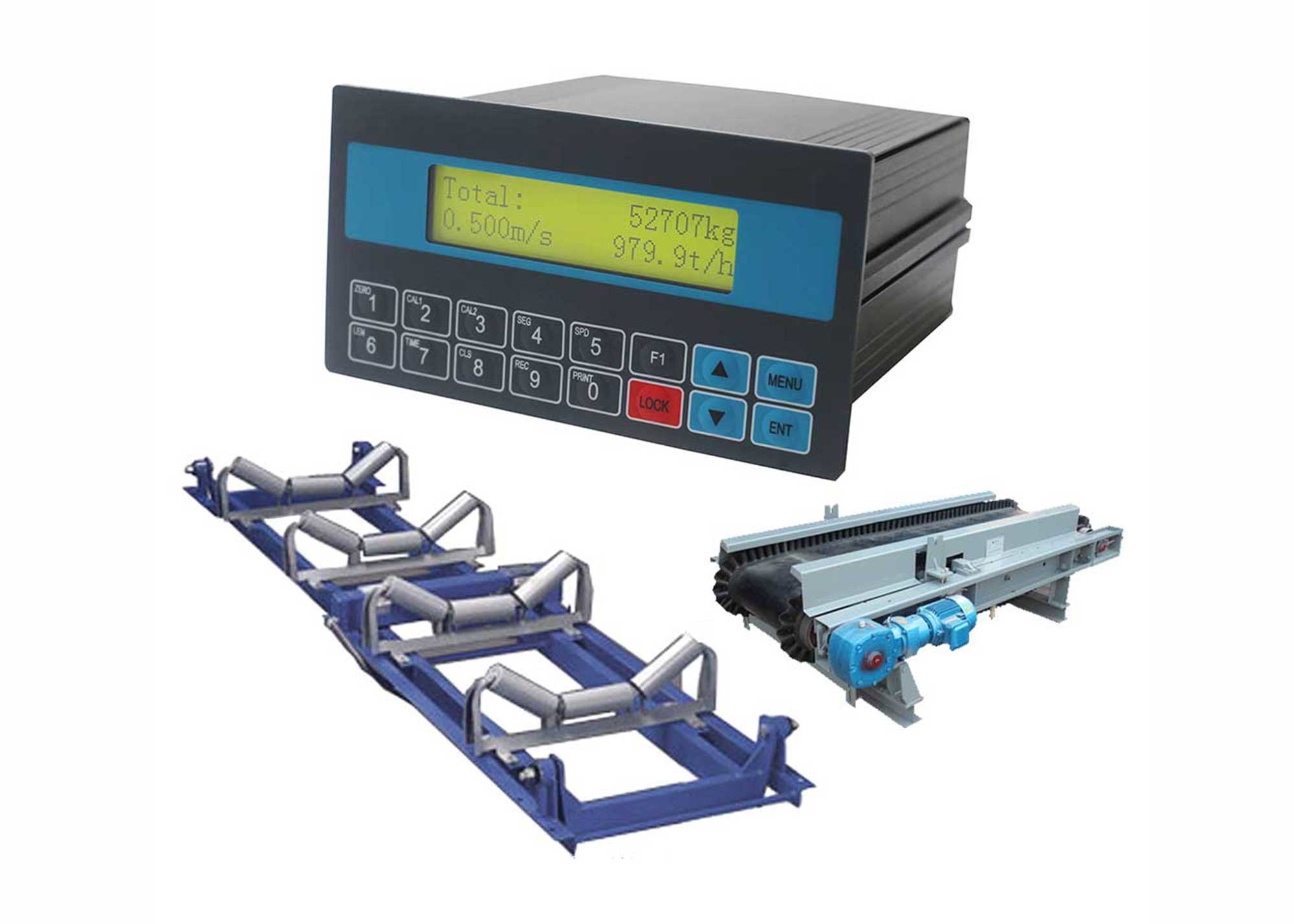

    High Frequency Sampling Belt Scale Controller Belt Weigher With Weight Totalizing

    Product Details:

    Place of Origin: China
    Brand Name: Supmeter
    Certification: CE
    Model Number: BST100-D12

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: 187-340usd/pcs
    Packaging Details: 1pcs/box
    Delivery Time: 3-10 working days
    Payment Terms: T/T, Western Union
    Supply Ability: 1000pcs/month
    Get Best Price Contact Now

    Detail Information

    Model Number: BST100-D12 Power Supply: AC220V
    COM1: Optional RS232/RS485/Ethernet COM2: RS232
    Accuracy Grade: 0.5
    High Light:

    belt weigher indicator

    ,

    digital indicator with remote display

    Product Description

    High Frequency Sampling Belt Scale Controller Belt Weigher With Weight Totalizing



    High Frequency Sampling Belt Scale Controller With Anti Vibration Filter, Belt Weigher With Weight Totalizing



    Main Features:

    • Suitable for belt weigher.
    • EMC design with high anti-jamming capability, suitable for industrial environment.
    • 32-bit ARM CPU with 72MHz & higher arithmetic speed.
    • 160×32 dots LCD display screen with yellow-green background for English display.
    • Menu&Shortcut mode operation with key tone.
    • High-precision ∑-A/D conversion technology and broad-range speed pulse input circuit.
    • Max. Connection Quantity: 8 Loadcells (350Ω).
    • Auto-locking, Key-locking, Key-unlocking and Digital Setting&Calibration functions available.
    • Auto Zero Tracking, Speed Calibration and Belt Length Calibration functions available.
    • Optional AO [4~20mA] module for Flow signal output (COM1 port will be occupied).
    • 2 Optional communication ports for connecting IPC/PLC, LED Remote Display, Serial Printer and Wireless Module.
    • Corrosion-proof, water-proof, dust-proof and shock-proof shell for model wall-mounting.
    • Weight Records per shift/day/month of a year can be queried and printed.
    • With the multitasking mode, the weighing process will not be interrupted by parameter setting and the other operations.



    High Frequency Sampling Belt Scale Controller Belt Weigher With Weight Totalizing 0

    High Frequency Sampling Belt Scale Controller Belt Weigher With Weight Totalizing 1

    High Frequency Sampling Belt Scale Controller Belt Weigher With Weight Totalizing 2









    Technical Specification

    • Executing Standard
    • CMC GB/T 7724-2008PRC National Standard.

    ² OMIL R50:1997International Recommendation.

    • Accuracy Grade: 0.5.
    • Display
    • 160×32 dots LCD display screen with yellow-green background for English display.
    • Display Refreshing Time: Setting Range 0.1~2.0s.
    • Kaypad
    • 16-key English keypad.
    • Menu&Shortcut operation with key tone.
    • Loadcell Interface
    • Excitation Voltage/Max. Current: DC10V/250mA [8-350Ω loadcells].
    • Signal Input Range: 0~25mV.
    • Sampling Frequency: 200Hz.
    • ∑-ADC: 24-bit, 100,000 internal code used.
    • Zero Drift: ±0.1μV/℃ RTI (Relative to Input).
    • Gain Drift: ±5ppm/℃.
    • Non-linearity: 0.005%FS.
    • Speed Sensor Interface
    • Output Voltage/Max. Current: DC12V/100mA.
    • Speed Pulse Input Range: 0.5~3000Hz.
    • Analog Signal Interface
    • Optional AO [4~20mA] module for Flow signal output.
    • COM1 port will be occupied.
    • Non-linearity: 0.05%FS.
    • Digital Communication Interface
    • COM1: Optional RS232/RS485/RS422/Profibus-DP/Ethernet modules.
    • COM2: RS232.
    • Connectable: IPC/PLC, LED Remote Display, Serial Printer and Wireless Module.
    • Report Print
    • Weight Records per shift/day/month of a year can be queried and printed.

    • Operating Specification
    • Operating Voltage: AC220V±15%, 50/60Hz.
    • Max. Power Consumption: 10W.
    • Outline Size
    • Model Panel-mounting: 170×91×184 mm [W×H×D].
    • Model Wall-mounting: 235.5×227.5×119.5mm [W×H×D].
    • Model Explosion-proof: 340×390×205mm [W×H×D].
    • Panel Cut-out Size
    • Model Panel-mounting: 151×76mm [W×H].
    • Operating Temperature: -25℃ to +45℃.
    • Storage Temperature: -30℃ to +60℃.
    • Relative Humidity: Max. 85%RH.
    • Application Environment of Model Explosion-proof
    • Explosion gas environment: Zone 1&2.
    • Classes of explosion gas mixture: IIA, IIB.
    • Temperature grades of explosion gas mixture: T1~T6.
    • Ex-mark: Ex d IIB T6 Gb.
    • Protection Level
    • Front Panel of Model Panel-mounting: IP65.
    • Model Wall-mounting: IP65.
    • Model Explosion-proof: IP65.
    • Weight
    • Model Panel-mounting: Approx. 1.3kg.
    • Model Wall-mounting: Approx. 1.8kg.
    • Model Explosion-proof: Approx. 19.2kg.

    Operation Interface





    Model Panel-mounting Installation







    Belt Weighing System



    Delivery
