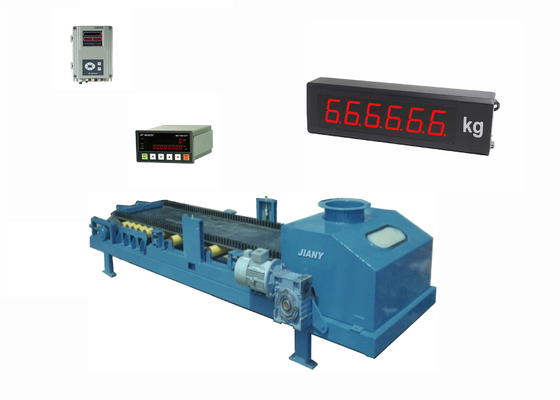

    Build In Flow Set Analog Output Belt Scale Controller Weighing Indicator

    Product Details:

    Place of Origin: China
    Brand Name: Supmeter
    Certification: CE
    Model Number: BST100-B11

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: negotiation
    Packaging Details: one pc per carton
    Delivery Time: 3workdays
    Payment Terms: Western Union, T/T
    Supply Ability: 10000pcs/month
    Get Best Price Contact Now

    Detail Information

    Power Supply: AC220V Protection Level: IP65
    Accuracy Grade: 0.5 Max. Connection Number Of Loadcell: 8 Loadcells (350Ω)
    Communication Port: COM1:Optional RS232/RS485/RS422/ Profibu-DP/Ethernet; COM2:RS485
    High Light:

    belt weigher indicator

    ,

    digital indicator with remote display

    Product Description

    Build In Flow Set Analog Output Belt Scale Controller Weighing Indicator



    Build In Flow Set Analog Output Weighing Indicator With Rs232 Or Rs485 Communication



    Technical Specification

    • Power Supply: AC220V±15%, 50/60Hz, Max. 15W.
    • Loadcell Excitation Voltage/Current: DC10V/250mA.
    • 8 Loadcells[350Ω] connectable.
    • Weighing Signal Input Range: 0~25mV.
    • Speed Sensor Excitation Voltage/Current: DC12V/100mA.
    • Speed Signal Input Range: 0.5~3000Hz.
    • 3 Normally Open Switch Inputs [DI].
    • 4 Normally Open Relay Outputs [DO]: AC250V/DC24V, 1A.
    • 1 ‘Totalized Weight’ Pulse Output [PO]: DC5~24V, 100mA.
    • 2 ‘PID Control’ Analog Output [AO]: 4~20mA, 0.05%FS.
    • 1 ‘Flow Set’ Analog Input [AI]: 4~20mA, 0.05%FS.
    • COM1: Optional RS232/RS485/RS422/Profibus-DP/Ethernet.
    • COM2: RS232.
    • Connect Host IPC, Remote Display, Printer&Wireless Module.
    • Outline Size [W×H×D]: 164 × 82 × 188 mm.
    • Panel Cut-out Size [W×H]: 153 × 77 mm.
    • Operating Temperature: -25℃~+45℃.
    • Protection Level of Front Panel: IP65.
    • Accuracy Grade: 0.5.
    • Accuracy of Flow Control: 0.5%~1.0%.

    Build In Flow Set Analog Output Belt Scale Controller Weighing Indicator 0



    Model Panel-mounting / Wall-mounting Keypad Operation

         If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 Calibration’ & ‘F6 Factory Adj.’, the controller will return to ‘Main Display Interface’ automatically.

                                                  Menu Operation
    Key Name Description

    【MENU】

    【ESC】

    Enter Main Menu.

    Exit.

    【ENT】

    Enter.

    Save.

    【◄】 Cursor shifts left.
    【►】 Cursor shifts right.
    【▲】

    Cursor shifts up.

    Display the previous interface or option.

    Digit input: +1.

    【▼】

    Cursor shifts down.

    Display the next interface or option.

    Digit input: -1.

                                       Quick Operation

    【MENU】*

    (【LOCK】)

    • Key-locking.
    • Key-unlocking.

    【◄】

    (【ADJ+】)

    Control Current +1mA.

    【►】

    (【ADJ-】)

    Control Current -1mA.

    【◄】*

    (【AUTO】)

    ‘Manual/Auto’ Control Mode Selection.

    【►】*

    (【EXT】)

    ‘Internal/External’ Flow Set Mode Selection.

    【PRINT】

    (【ENT】)

    Print

    *: Keep the key pressed for 2 seconds.





    Build In Flow Set Analog Output Belt Scale Controller Weighing Indicator 1







    Model Panel-mounting Terminal

    Build In Flow Set Analog Output Belt Scale Controller Weighing Indicator 2





    Ration Flow Auto-Feeding System:

    Build In Flow Set Analog Output Belt Scale Controller Weighing Indicator 3
