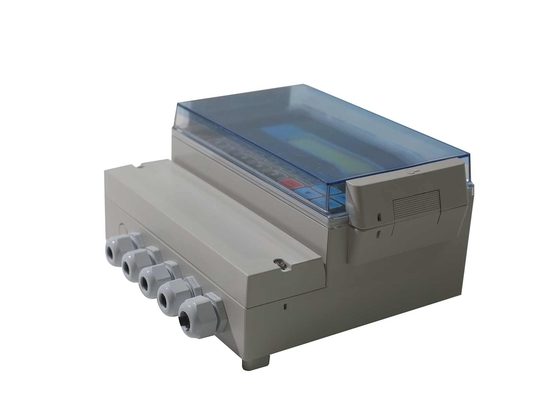

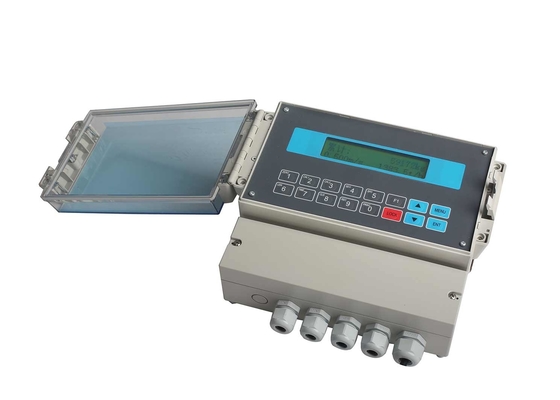

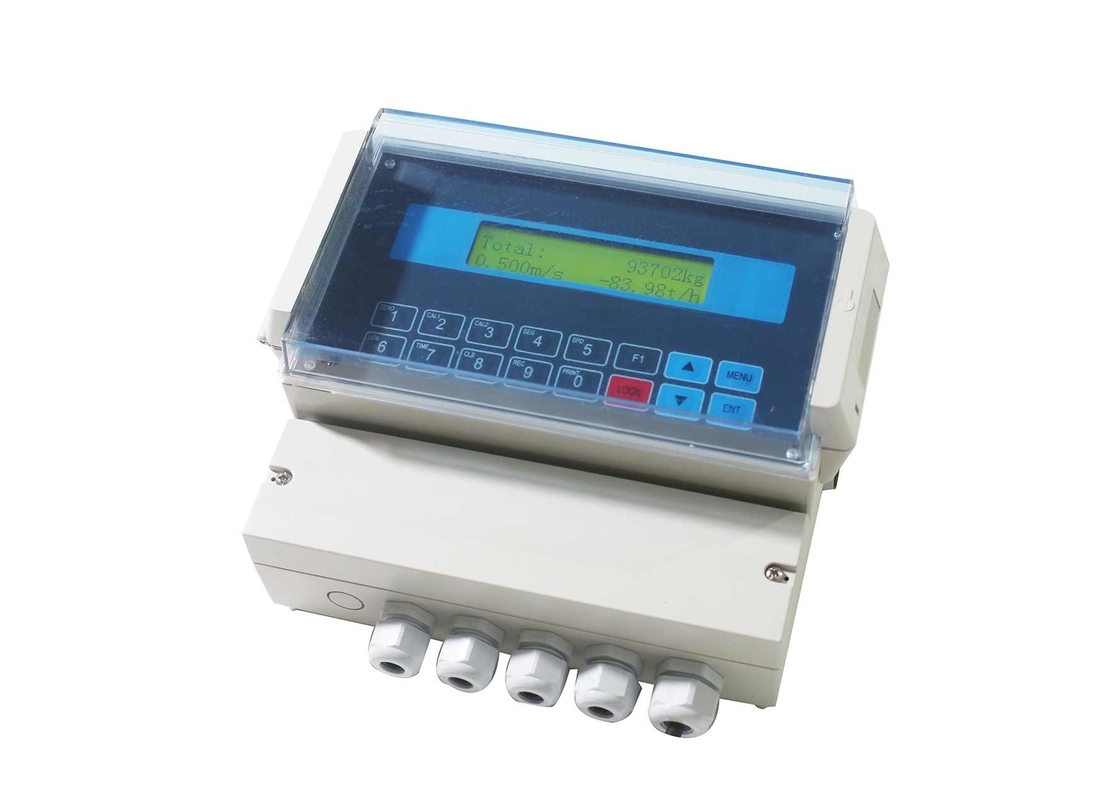

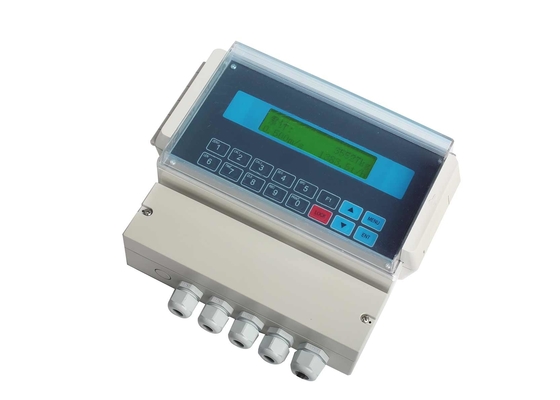

LCD Wall Mounting Belt Scale Controller For Corrosive Gas Environment
Product Details:
| Place of Origin: | China |
| Brand Name: | Supmeter |
| Certification: | CE |
| Model Number: | BST100-D52 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | 1pcs/box |
| Delivery Time: | 3-10 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000pcs/month |
|
Detail Information |
|||
| Power Supply: | AC220V | Outline Size: | 235.5*227.5*119.5mm |
|---|---|---|---|
| Protection Level: | IP65 | Accuracy Grade: | 0.5 |
| High Light: | belt weigher indicator,digital indicator with remote display |
||
Product Description
LCD Wall Mounting Belt Scale Controller For Corrosive Gas Environment
LCD wall- mounting belt conveyer scale indicator for corrosive gas environment
Main Applications
- Belt Weigher with Weight Totalizing.
- Suitable for corrosive gas environment.
Main Features
- EMC design with high anti-jam for industrial environment.
- 32-bit ARM CPU with 72MHz clock & high arithmetic speed.
- 160×32 LCD display screen with yellow-green background.
- 24-bit ∑-△ADC with internal resolution 1/1,000,000.
- High sampling frequency 400Hz.
- Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
- ‘External Speed’ or ‘Inner Speed’ working modes.
- Zero Calibration & Auto Zero Tracking.
- Span Calibration & Segmenting Correction.
- Speed Calibration & Belt Length Calibration.
- Queryable Records per shift/day/month of a year.
- Definable COM[Communication Port].
Technical Specification:
| Display | 160*32 LCD display screen with yellow-green background |
| Force Value Display Range | -60,000~+60,000 |
| Force Capacity | Setting Range 1~60,000 |
| Power Supply | AC220V |
| Loadcell Excitation Voltage/Current | DC10V/250mA |
| Max. Loacell Connectable No. | 8 loadcells (350Ω) |
| Signal Input Range | 0~25mV |
| Sampling Frequency | 400Hz |
| Speed Signal Input Range | 0.5-3000Hz |
| COM1 | Optional RS232/RS485/RS422/Profibus-DP/Ethernet |
| COM2 | RS232 |
| Outline Size(W*H*D) | 235.5*227.5*119.5mm |
| Accuracy Grade | 0.5 |
| IP Grade | IP65 |
Operation Interface
Model Panel-mounting / Wall-mounting Operation Interface
Model Panel-mounting / Wall-mounting Keypad Operation
If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 Calibration’ & ‘F6 Factory Adj.’, the Indicator will return to ‘Main Display Interface’ automatically.
| Menu Operation | |
| Key Name | Description |
| 【MENU】 | Enter Main Menu / Exit. |
| 【ENT】 |
Enter/Save. Return to the initial display interface. |
| 【▲】 |
Cursor shifts up or left. Display the previous interface or option. |
| 【▼】 |
Cursor shifts down or right. Display the next interface or option. |
| 【0~9】 | Digit Input. |
| Quick Operation | |
| 【LOCK】 |
Key-locking. Key-unlocking. |
| 【F1】 | Static Span Calibration with Hanging Weight. |
| 【ZERO】 | Zero Calibration. |
| 【CAL1】 | Dynamic Span Calibration. |
| 【CAL2】 | Static Span Calibration with Chain Weight. |
| 【SEG】 | Segmenting Span Correction. |
| 【SPD】 | Speed Calibration. |
| 【LEN】 | Belt Length Calibration. |
| 【TIME】 | Date/Time Setting. |
| 【CLS】 | Clear Screen. |
| 【REC】 | Query and Print Weight Record. |
| 【PRINT】 | Print. |
Model Explosion-proof Operation Interface
Model Explosion-proof Keypad Operation
If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 Calibration’ & ‘F6 Factory Adj.’, the Indicator will return to ‘Main Display Interface’ automatically.
| Key Name | Description |
|
【MENU】 (【ESC】) (【LOCK】) |
Enter Main Menu. Exit. Keep it pressed for 2 seconds: Key-locking / Key-unlocking. |
|
【ENT】 (【PRINT】) |
Enter/Save. Print. |
| 【◄】 | Cursor shifts left. |
| 【►】 | Cursor shifts right. |
| 【▲】 |
Cursor shifts up. Display the previous interface or option. Digit input: +1. |
| 【▼】 |
Cursor shifts down. Display the next interface or option. Digit input: -1. |
Model Wall-mounting Installation
Belt Weighing System
