Loss In Weight Weigh Feeder Controller

Loss In Weight Weigh Feeder Controller

Product Details:

Place of Origin: China
Brand Name: Supmeter
Certification: CE
Model Number: BST100-E11

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: 1pcs/box
Delivery Time: 3-7 days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/month
Get Best Price Contact Now

Detail Information

Power Supply: AC220V DI: 3
DO: 4 PO: 1
AO: 2 AI: 1
High Light:

weighing scale indicator


digital indicator with remote display

Product Description

Loss In Weight Weigh Feeder Controller

Loss-in-weight Weighfeeder Controller Belt Scale Controller With Ration Flow Feeding
      Main Features:

  • Suitable for Ration Belt Weighfeeder with Ration Flow Feeding & Ration Weight Batch Control.
  • EMC design with high anti-jamming capability, suitable for industrial environment.
  • 32-bit ARM CPU with 72MHz & higher arithmetic speed.
  • 128×64 LCD display screen with 7 background colors for English display.
  • 16-key English keypad.
  • Menu&Shortcut mode operation with key tone.
  • High-precision ∑-△A/D conversion technology and broad-range speed pulse input circuit.
  • Max. Connection Quantity: 8 Loadcells (350Ω).
  • Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing functions available.
  • Auto Zero Tracking, Speed Calibration and Belt Length Calibration functions available.
  • One optional ‘Flow Setpoint’ analog signal input [AI: 4~20mA].
  • Max.3 definable ‘Flow/Control Current /…’ analog signal outputs [AO: 4~20mA].
  • Quick and steady PID ration feeding control.
  • 3 Definable normally open switch inputs [DI] and 4 definable normally open relay switch outputs [DO].
  • The feeder and belt weigher can be started and stopped by DI&DO signal.
  • 1 ‘Totalized Weight High-speed Pulse’ output [PO].
  • 2 Optional communication ports for connecting IPC/PLC, LED Remote Display, Serial Printer and Wireless Module.
  • Weight Records per shift/day/month of a year can be queried and printed.
  • With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations.

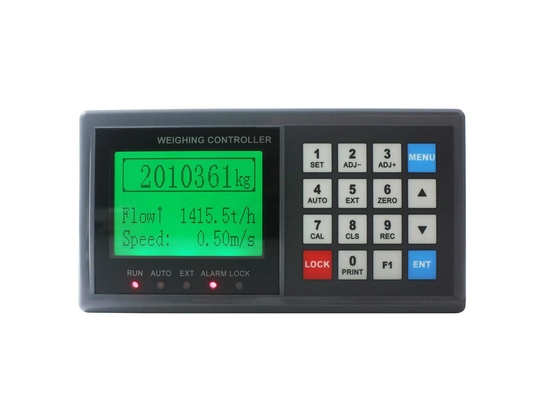

Loss In Weight Weigh Feeder Controller 0

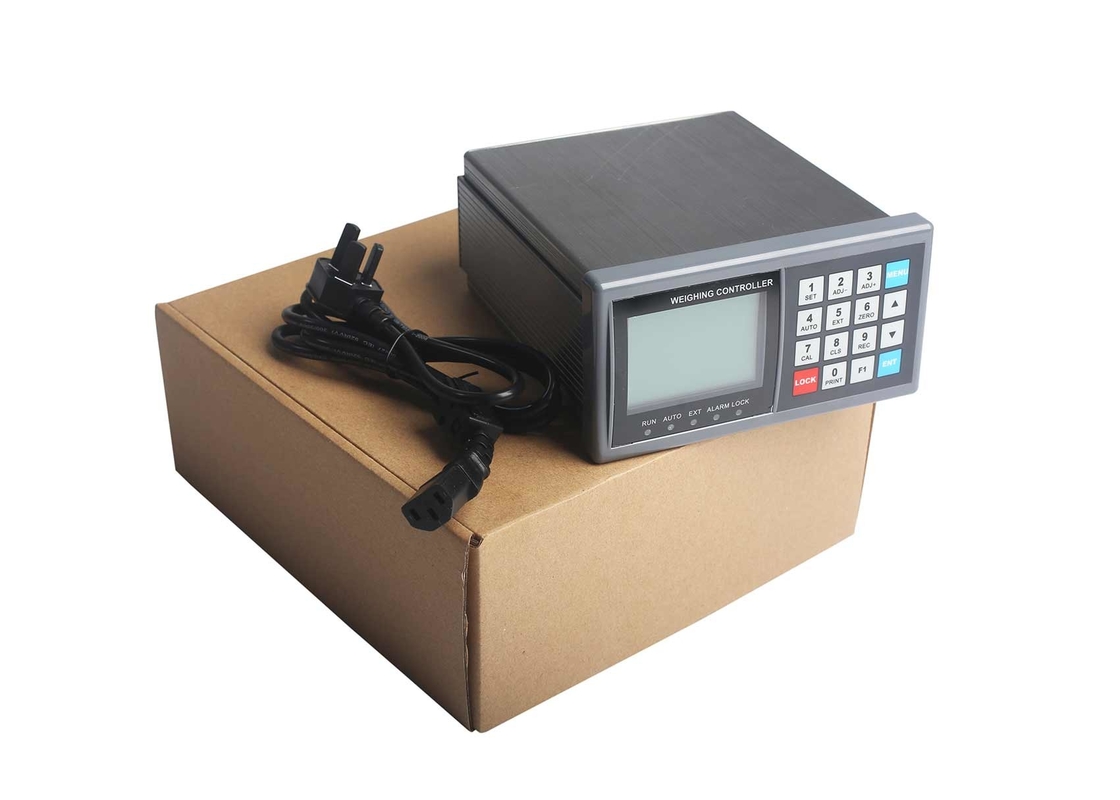

Loss In Weight Weigh Feeder Controller 1

      Technical Specification

  • Executing Standard
  • CMC GB/T 7724-2008PRC National Standard.

² OMIL R50:1997International Recommendation.

² Accuracy Grade: 0.5.

² Accuracy of Flow Control: 0.5%~1.0%.

  • Display
  • 128×64 LCD display screen with 7 background colors for English display.
  • Display Refreshing Time: Setting Range 0.1~2.0s.
  • Kaypad
  • 16-key English keypad.
  • Menu&Shortcut operation with key tone.
  • Loadcell Interface
  • Excitation Voltage/Max. Current: DC10V/250mA [8-350Ω loadcells].
  • Signal Input Range: 0~25mV.
  • ∑-△ADC: 24-bit, 100,000 internal code used.
  • Sampling Frequency: 200Hz.
  • Zero Drift: ±0.1μV/℃ RTI (Relative to Input).
  • Gain Drift: ±5ppm/℃.
  • Non-linearity: 0.005%FS.
  • Speed Sensor Interface
  • Output Voltage/Max. Current: DC12V/100mA.
  • Speed Pulse Input Range: 0.5~3000Hz.
  • Switch Signal Interface
  • 3 Normally Open Switch Inputs [DI].
  • 4 Normally Open Relay Switch Outputs [DO]: AC250V/DC24V, 1A.
  • 1 ‘Totalized Weight High-speed Pulse’ Output [PO]: 100mA, DC5~24V; Weight per Pulse and Pulse Width can be preset.
  • Analog Signal Interface
  • Max.3 Definable ‘Flow/Control Current /…’ Analog Signal Outputs [AO]: 4~20mA, Non-linearity: 0.05%FS; AO3 is optional.
  • 1 Optional ‘Flow Setpoint’ Analog Signal Input [AI]: 4~20mA, Non-linearity: 0.05%FS.
  • Digital Communication Interface
  • COM1: Optional RS232/RS485/RS422/Profibus-DP/Ethernet modules.
  • COM2: RS232.
  • Connectable: IPC/PLC, LED Remote Display, Serial Printer and Wireless Module.
  • Report Print
  • Weight Records per shift/day/month of a year can be queried and printed.
  • Operating Specification
  • Operating Voltage: AC220V±15%, 50/60Hz.
  • Max. Power Consumption: 15W.
  • Outline Size
  • Model Horizontal Panel-mounting: 164×86×193mm [W×H×D].
  • Model Vertical Panel-mounting: 86×164×193mm [W×H×D].
  • Model Wall-mounting: 202×305×90mm [W×H×D].
  • Panel Cut-out Size
  • Model Horizontal Panel-mounting: 153×77mm [W×H].
  • Model Vertical Panel-mounting: 77×153mm [W×H].
  • Operating Temperature: -25℃ to +45℃.
  • Storage Temperature: -30℃ to +60℃.
  • Relative Humidity: Max. 85%RH.
  • Protection Level
  • Front Panel of Model Panel-mounting: IP65.
  • Model Wall-mounting: IP65.
  • Weight
  • Model Panel-mounting: Approx. 1.7kg.
  • Model Wall-mounting: Approx. 3.4kg.

     Keypad Operation

If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 Calibration’ & ‘F6 Factory Adj.’, the controller will return to ‘Main Display Interface’ automatically.

Menu Operation
Key NameDescription


Enter Main Menu.



Cursor shifts up or left.

Display the previous interface or option.


Cursor shifts down or right.

Display the next interface or option.

【0~9】Digit Input.
Quick Operation
  • Key-locking.
  • Key-unlocking.
【F1】Return to the initial display interface.
【SET】Flow Set Value Setting.
【ADJ-】Control Current -1mA.
【ADJ+】Control Current +1mA.
【AUTO】‘Manual/Auto’ Control Mode Selection.
【EXT】‘Internal/External’ Flow Set Mode Selection.
【ZERO】Zero Calibration.
【CAL】Dynamic Span Calibration.
【CLS】Clear Screen: Clear display value of Totalized Weight.
【REC】Query and print Weight Record.



State Indication

LED LampDescription

ON: Weighing state.
OFF: Stopping state.


Feeding control mode:
ON: Auto [PID].
OFF: Manual.


Flow Set Mode:
ON: External [AI: 4~20mA].
OFF: Internal.


ON: Key-locked.
OFF: Key-unlocked.
