Product Details:

Place of Origin: China
Brand Name: Supmeter
Certification: CE
Model Number: BST100-B11

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiation

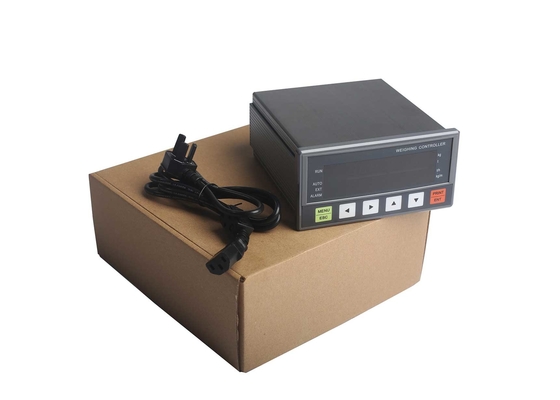

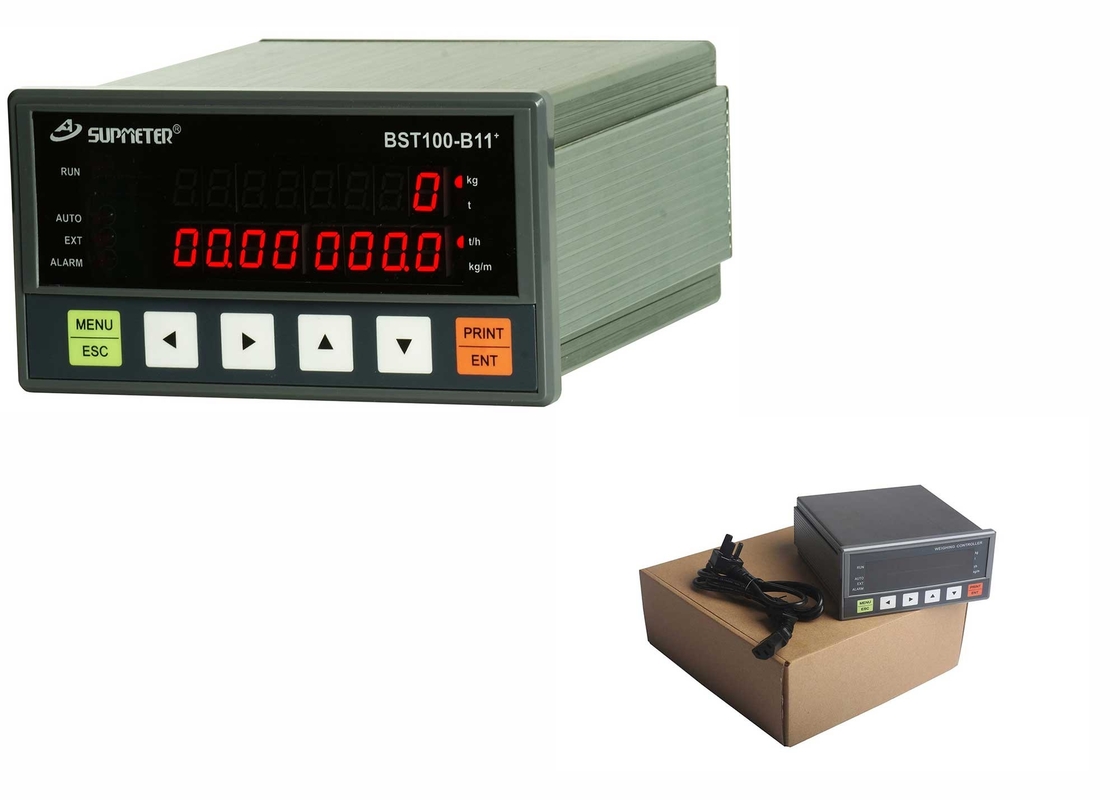

Packaging Details: one pc per carton
Delivery Time: 3workdays
Payment Terms: Western Union, T/T
Supply Ability: 10000pcs/month
Get Best Price Contact Now

Detail Information

Power Supply: AC220V Protection Level: IP65
Accuracy Grade: 0.5 Max. Connection Number Of Loadcell: 8 Loadcells (350Ω)
Communication Port: COM1:Optional RS232/RS485/RS422/ Profibu-DP/Ethernet; COM2:RS485
High Light:

weighing scale indicator

,

digital indicator with remote display

Product Description

IP65 Belt Conveyor Weighing Scales Controller With Weight Totalizing For Coal Weighfeeder

IP65 Belt Conveyor Weighing Scales Controller With Weight Totalizing For Coal Weighfeeder

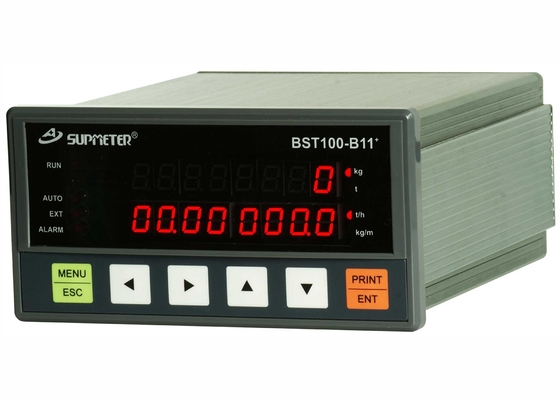

IP65 Belt Conveyor Weighing Scales Controller With Weight Totalizing For Coal Weighfeeder 0



Technical Specification

  • Power Supply: AC220V±15%, 50/60Hz, Max. 15W.
  • Loadcell Excitation Voltage/Current: DC10V/250mA.
  • 8 Loadcells[350Ω] connectable.
  • Weighing Signal Input Range: 0~25mV.
  • Speed Sensor Excitation Voltage/Current: DC12V/100mA.
  • Speed Signal Input Range: 0.5~3000Hz.
  • 3 Normally Open Switch Inputs [DI].
  • 4 Normally Open Relay Outputs [DO]: AC250V/DC24V, 1A.
  • 1 ‘Totalized Weight’ Pulse Output [PO]: DC5~24V, 100mA.
  • 2 ‘PID Control’ Analog Output [AO]: 4~20mA, 0.05%FS.
  • 1 ‘Flow Set’ Analog Input [AI]: 4~20mA, 0.05%FS.
  • COM1: Optional RS232/RS485/RS422/Profibus-DP/Ethernet.
  • COM2: RS232.
  • Connect Host IPC, Remote Display, Printer&Wireless Module.
  • Outline Size [W×H×D]: 164 × 82 × 188 mm.
  • Panel Cut-out Size [W×H]: 153 × 77 mm.
  • Operating Temperature: -25℃~+45℃.
  • Protection Level of Front Panel: IP65.
  • Accuracy Grade: 0.5.
  • Accuracy of Flow Control: 0.5%~1.0%.





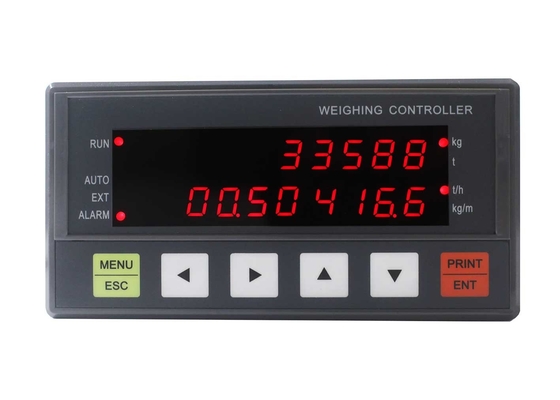

Model Panel-mounting / Wall-mounting Keypad Operation

     If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 Calibration’ & ‘F6 Factory Adj.’, the controller will return to ‘Main Display Interface’ automatically.

                                              Menu Operation
Key Name Description

【MENU】

【ESC】

Enter Main Menu.

Exit.

【ENT】

Enter.

Save.

【◄】 Cursor shifts left.
【►】 Cursor shifts right.
【▲】

Cursor shifts up.

Display the previous interface or option.

Digit input: +1.

【▼】

Cursor shifts down.

Display the next interface or option.

Digit input: -1.

                                   Quick Operation

【MENU】*

(【LOCK】)

  • Key-locking.
  • Key-unlocking.

【◄】

(【ADJ+】)

Control Current +1mA.

【►】

(【ADJ-】)

Control Current -1mA.

【◄】*

(【AUTO】)

‘Manual/Auto’ Control Mode Selection.

【►】*

(【EXT】)

‘Internal/External’ Flow Set Mode Selection.

【PRINT】

(【ENT】)

Print

*: Keep the key pressed for 2 seconds.





Model Panel-mounting Installation

IP65 Belt Conveyor Weighing Scales Controller With Weight Totalizing For Coal Weighfeeder 1







Model Panel-mounting Terminal

IP65 Belt Conveyor Weighing Scales Controller With Weight Totalizing For Coal Weighfeeder 2

Main Applications
 Belt Weigher with Weight Totalizing.
 Ration Belt Weighfeeder with Ration Flow Feeding.
Main Features
 EMC design with high anti-jam for industrial environment.
 32-bit ARM CPU with 72MHz clock & high arithmetic speed.
 8+4+4 Red LED digital tubes for English&digit display.
 24-bit Σ-△ADC with internal resolution 1/1,000,000.
 High sampling frequency 400Hz.
 Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
 Zero Calibration & Auto Zero Tracking.
 Span Calibration & Segmenting Correction.
 Speed Calibration & Belt Length Calibration.
 The feeder and belt weigher can be controlled by DI&DO.
 Quick and steady PID ration feeding control.
 Queryable Records per shift/day/month of a year.
 Definable DI/DOAO/COM[Communication Port].





Ration Flow Auto-Feeding System:

IP65 Belt Conveyor Weighing Scales Controller With Weight Totalizing For Coal Weighfeeder 3
