Product Details:

Place of Origin: China
Brand Name: Supmeter
Certification: CE
Model Number: BST100-E01

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: carton
Delivery Time: 3workdays
Payment Terms: Western Union, T/T
Supply Ability: 10000pcs/month
Get Best Price Contact Now

Detail Information

Power Supply: AC220V Material: Steel
Accuracy Of Flow Control: 0.5%~1.0% Accuracy Grade: 0.5
Max. Connection Number Of Loadcell: 8 Loadcells (350Ω) Communication Port: COM1:Optional RS232/RS485/RS422/ Profibu-DP/Ethernet; COM2:RS485
High Light:

weighing scale indicator

,

belt weigher indicator

Product Description

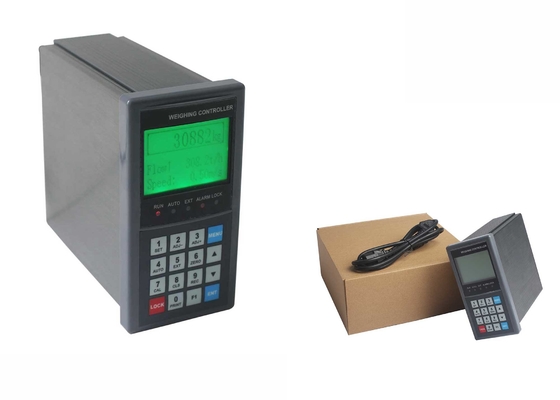

LCD Display Belt Scale Weighing Controller With RS232RS485

LCD Display Belt Scale Weighing Controller With RS232RS485

Technical Specification

Power SupplyAC220±15%
Display128X64 LCD display screen with 7background colors
Sampling Frequency400Hz
A/D Convert24-bit
Keypad16 keys for Menu&Shortcut mode operation with key tone
Excitation Voltage Output of LoadcellDC10V
Max. Connection number of Loadcell8 Loadcells (350Ω)
Speed Sensor Excitation Voltage/CurrentDC12V/100mA
Speed Signal Input Range0.5-3000Hz
AO2'PID Control'Analog Output[4-20mA]
Communication PortCOM1:Optianal RS232/RS485/RS422/Profibus-DP/Ethernet; COM2:RS232
Outline Dimension202 × 305 × 90 mm (W×H×D)
Net Weight Approx. 4.2kg
IP GradeIP65
Operating Temperature-25℃~+45℃
Accuracy of Flow Control0.5%~1.0%


Keypad Operation

Key NameDescription

【MENU】
(【ESC】)

Enter Main Menu.

Exit.

【ENT】Enter/Save.
【▲】

Cursor shifts up or left.

Display the previous interface or option.

【▼】

Cursor shifts down or right.

Display the next interface or option.

【0~9】Digit Input.
                                       Quick Operation
【LOCK】
  • Key-locking.
  • Key-unlocking.
【F1】Return to the initial display interface.
【SET】Flow Set Value Setting.
【ADJ-】Control Current -1mA.
【ADJ+】Control Current +1mA.
【AUTO】‘Manual/Auto’ Control Mode Selection.
【EXT】‘Internal/External’ Flow Set Mode Selection.
【ZERO】Zero Calibration.
【CAL】Dynamic Span Calibration.
【CLS】Clear Screen: Clear display value of Totalized Weight.
【REC】Query and print Weight Record.
【PRINT】Print.

Installation:

LCD Display Belt Scale Weighing Controller With RS232RS485 0

Ration Flow Auto-Feeding System:

LCD Display Belt Scale Weighing Controller With RS232RS485 1

FAQ:
1. Sample is Available?
Yes. This product support free sample. As long as you can bear the freight charge.
2. What detailed information do I need to provide if I want to place an order?
We need to know the following information: accuracy, Quantity, special requirements if you have, etc.
3. Do you have any discount?
Yes, if you buy large QTY, please send us a email, we will give you a big discount.
4. What terms of payment are available?
We accept T/T, L/C, Trade assurance, Secure payment, Western Union,etc.
5.When will you arrange the production?
We will arrange the production immediately after receiving your payment.
6. How do you ensure good product quality?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.
7. How long is the warranty period?
The warranty period for our products is 12 (twelve) months.
If the products from SUPMETER are proved to be unable to work normally due to unartificial reasons, and the problems can't be solved by customers under the technical support from SUPMETER, then customers can send the problematic items back to SUPMETER. SUPMETER is RESPONSIBLE to MEND (or REPLACE when necessary) them FREE OF CHARGE.
(Note: if after checking, the returned goods are proved to be in good condition, the trouble is resulted to be caused by improper operation by customers, SUPMETER is IRRESPONSIBLE to bear the shipping & other charges related to the returning.)
