Touch Screen Checkweigher Load Cell Controller
Product Details:
| Place of Origin: | China |
| Brand Name: | Supmeter |
| Certification: | CE |
| Model Number: | BST106-M10[CK] |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 1pcs/box |
| Delivery Time: | 3-10 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000pcs per month |
|
Detail Information |
|||
| Power Supply: | DC24V | Max. Connect: | 16Loadcells[350Ω] |
|---|---|---|---|
| Input: | 7DIs | Output: | 18DOs |
| COM@COM1: | RS232 | COM2: | RS485 |
| Highlight: | digital weighing controller,crane weight indicator |
||
Product Description
touch screen Checkweigher Controller For Weight Sorting Mode With 3-12 Sorts
Main Features:
- EMC design with high anti-jam for industrial environment.
- DC24V power input with reverse polarity protection.
- Cortex-A8 CPU with 600MHz Clock, 128M Flash.
- 7” [800×480] or 10.2” [1024×600] TFT touch panel.
- 24-bit ∑-△ADC with internal resolution 1/1,000,000.
- High sampling frequency 800Hz.
- Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
- Auto Zero Tracking.
- Static Calibration and Dynamic Compensation.
- Dynamic/Static Weight-checking Mode.
- Unchecked product identification by photo-electric switch.
- Feed-stopper Control.
- Conveyor PWM/AO Speed Regulation.
- Definable DI/DO/AO/COM[Communication Port].
- Recipe Number: 100.
Technical Specification:
| Power Supply | DC24V±20%,Max.10w. |
| Display | HMI |
| Sampling Frequency | 600Hz |
| A/D Convert | 24-bit |
| LAN | Optional Ethernet |
| USB1 | Connect mouse, software download, data backup |
| Max. Connection number of Loadcell |
16Loadcells (350Ω) |
| DI | 7 Normally Open Switch Inputs |
| DO | 18 Normally Open Transistor Switch Outputs |
| AO | 4Analog Signal Output: 4~20mA. |
| Operating Temperature | -25℃~+45℃ |
| Verification Accuracy | 0.02% |
| Dynamic Weight-checking Accuracy | 0.2%~0.5% |

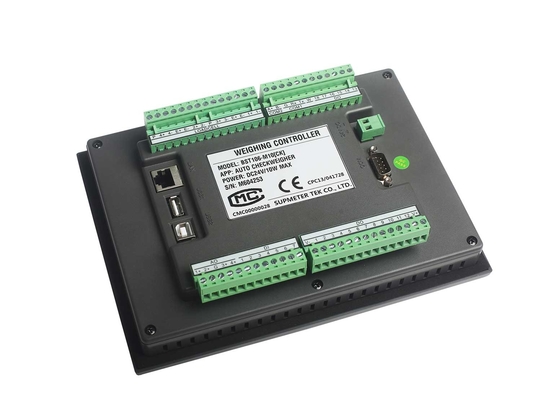

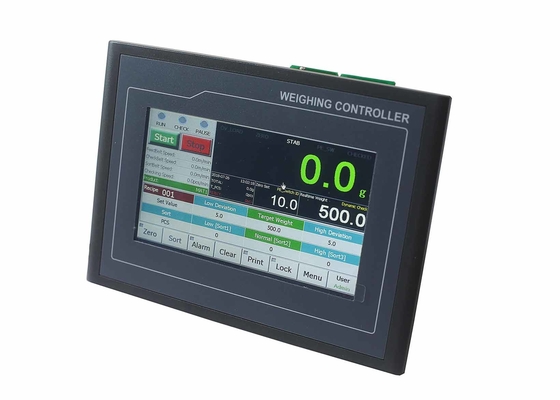

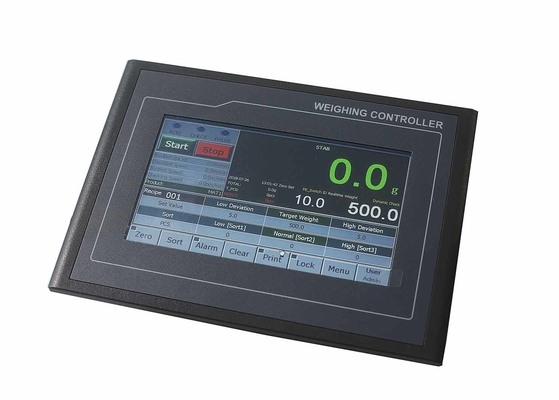

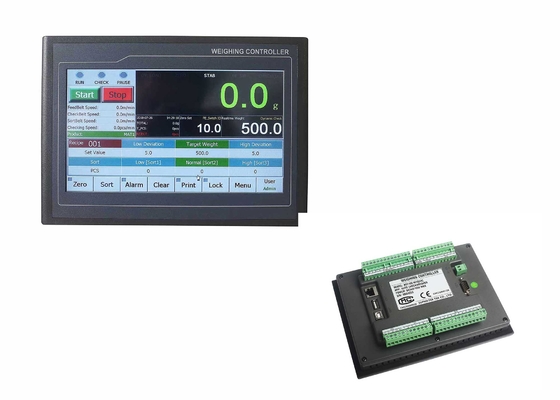

Main Operation Interface
Button Operation
| Name | Operation | State Indicator | Authorization |
| 【Start】 |
Start. ‘Stop’ state: Start the conveyors and enter the weight-checking running state. ‘Pause’ state: Recover Running. |
All Users | |
| 【Stop】 | Stop. | ||
| 【Zero】 |
Zero Fine Adjustment. [No Power-down Protection] |
Flashing green. | |
| 【Sort】 |
‘Sorting Area Quantity’ [3-12] Selection. Only used for Weight Sorting Mode. |
Administrator | |
| 【Alarm】 | Alarm Query / Clear Alarm. | Red: Alarm state. | All Users |
| 【Clear】 | Clear Screen: Clear the display values of Checking Weight, Batch Count and Totalized Weight. |
Engineer Administrator |
|
| 【Print】 |
Report Print:
|
All Users | |
| 【Lock】 |
Screen-locking: Locking/unlocking the operating buttons of main display interface. Auto Screen-locking: Refer to parameter [901]. |
Flashing Red: Locked. Grey: Unlocked. |
|
| 【Menu】 | Enter Main Menu. | ||
| 【User】 | User Login. Display: Operator / Engineer / Admin. |
Data Display & Quick Setting
| Name | Description | Authorization |
| Biggest Digits | Checking Weight of the present batch [Weight Unit]. | |
| Bigger Digits | Uncompensated Real-time Weight Value. | |
| [Date/Time] | Date/Time. | |
| [TOTAL] | Total Totalized Weight. | |
| [T_PCS] | Total Batch Count. | |
| [ REJECT ] | Batch Count of Rejected Products. | |
| [Zero Set] | ‘Non-load Zero Range’ Setting. |
Engineer Administrator |
| [Dynamic Check] |
Dynamic Weight-checking Mode. Refer to parameter [301] ‘Weight-checking Mode’. |
|
| [Static Check] |
Static Weight-checking Mode. Refer to parameter [301] ‘Weight-checking Mode’. |
|
| [PE_Switch ID] | Switch Triggering Mode. Refer to parameter [302] ‘Non-load Zero Range’ and ‘6.5.2 DI Assignment’. | |
| [Weight Trigger] | Weight Triggering Mode. Refer to parameter [302] ‘Non-load Zero Range’ and ‘6.5.2 DI Assignment’. | |
| [RUN] | Running state. | |
| [CHECK] | Weight-checking state. | |
| [PAUSE] | Conveyors pause after weight-checking. | |
| [OV_LOAD] | Overload Alarm. | |
| [ZERO] | Weight ≤ Non-load Zero Range. | |
| [STAB] | Weight is stable. | |
| [PE_SW] | DI switch ‘Photo-electric Identification’ turned on. | |
| [CHECKED] | Weigh-checking process of the present batch Ended. | |
| [Product] | Product Name. | |
| [FeedBelt Speed] | ‘Feeding Conveyor Speed’ Setting [m/min]. |
Engineer Administrator |
| [CheckBelt Speed] | ‘Checking Conveyor Speed’ Setting [m/min]. | |
| [SortBelt Speed] | ‘Sorting Conveyor Speed’ Setting [m/min]. | |
| [Checking Speed] | Checking Speed [pcs/min] display and Reset. | |
| Recipe Table | ‘Recipe Parameters’ Setting. | |
| [PCS] | Batch Count. | |
TFT-Touch Auto Checkweigher Controller For Weight Sorting Mode with 3-12 Sorts
Outline Size
Installation Mode

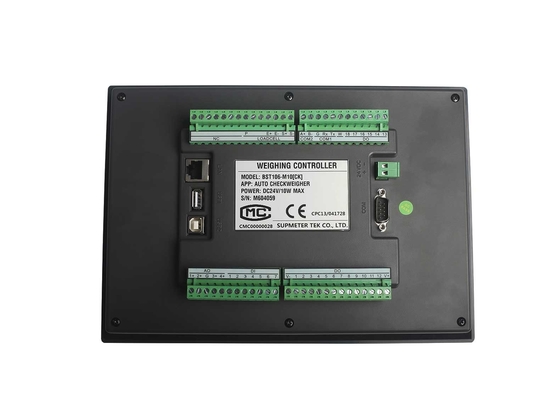

Terminal Diagram
System Diagram:
