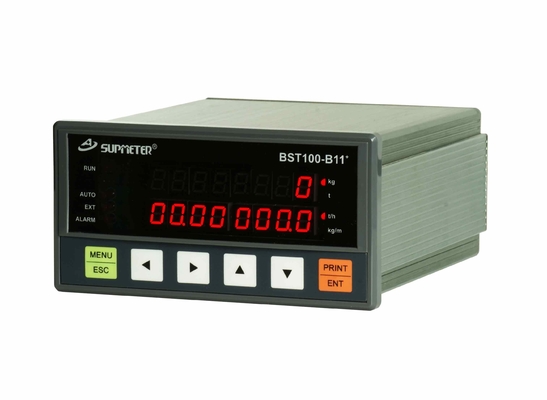

    High Arithmetic Speed Weigh Belt Feeder Controller , Digital Indicating Controller

    Product Details:

    Place of Origin: China
    Brand Name: Supmeter
    Certification: CE
    Model Number: BST100-B11+

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiation
    Packaging Details: 1pcs/box
    Delivery Time: 3-20 working days
    Payment Terms: T/T, Western Union
    Supply Ability: 500pcs per month
    Get Best Price Contact Now

    Detail Information

    Power Supply: AC220V DI: 3
    DO: 4 PO: 1
    High Light:

    weighing scale indicator

    ,

    digital indicator with remote display

    Product Description

    High Arithmetic Speed Weigh Belt Feeder Controller , Digital Indicating Controller

    Ration Belt Weighfeeder Scale Controller With Ration Flow Feeding & Weight Totalizing



          Main Features:

    • Suitable for Ration Belt Weighfeeder with Ration Flow Feeding & Ration Weight Batch Control.
    • EMC design with high anti-jamming capability, suitable for industrial environment.
    • 32-bit ARM CPU with 72MHz & higher arithmetic speed.
    • 8+4+4 Red LED digital tubes for English character and digit display.
    • Optional English keypad, Simplified Chinese keypad and Complex Chinese keypad.
    • Menu&Shortcut mode operation with key tone.
    • 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 400Hz.
    • Broad-range speed pulse input circuit.
    • Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.
    • Max. Connection Quantity: 8 Loadcells (350Ω).
    • Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing functions available.
    • Auto Zero Tracking, Speed Calibration and Belt Length Calibration functions available.
    • One optional ‘Flow Setpoint’ analog signal input [AI: 4~20mA].
    • Max.3 definable ‘Flow/Control Current /…’ analog signal outputs [AO: 4~20mA].
    • Quick and steady PID ration feeding control.
    • 3 Definable normally open switch inputs [DI] and 4 definable normally open relay switch outputs [DO].
    • The feeder and belt weigher can be started and stopped by DI&DO signal.
    • 1 ‘Totalized Weight High-speed Pulse’ output [PO].
    • 2 Optional communication ports for connecting IPC/PLC, LED Remote Display, Serial Printer and Wireless Module.
    • Weight Records per shift/day/month of a year can be queried and printed.
    • With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations.

    High Arithmetic Speed Weigh Belt Feeder Controller , Digital Indicating Controller 0

    High Arithmetic Speed Weigh Belt Feeder Controller , Digital Indicating Controller 1

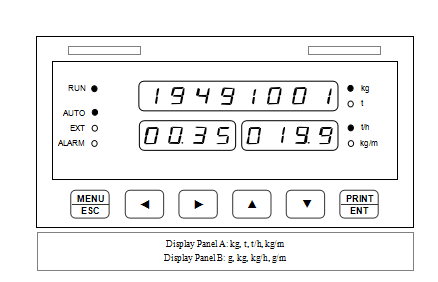

          Model Panel-mounting Operation Interface

    High Arithmetic Speed Weigh Belt Feeder Controller , Digital Indicating Controller 2



           Keypad Operation

    If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 Calibration’ & ‘F6 Factory Adj.’, the controller will return to ‘Main Display Interface’ automatically.



    Menu Operation
    Key Name Description

    【MENU】

    【ESC】

    Enter Main Menu.

    Exit.

    【ENT】

    Enter.

    Save.

    【◄】 Cursor shifts left.
    【►】 Cursor shifts right.
    【▲】

    Cursor shifts up.

    Display the previous interface or option.

    Digit input: +1.

    【▼】

    Cursor shifts down.

    Display the next interface or option.

    Digit input: -1.

    Quick Operation

    【MENU】*

    (【LOCK】)

    • Key-locking.
    • Key-unlocking.

    【◄】

    (【ADJ+】)

    Control Current +1mA.

    【►】

    (【ADJ-】)

    Control Current -1mA.

    【◄】*

    (【AUTO】)

    ‘Manual/Auto’ Control Mode Selection.

    【►】*

    (【EXT】)

    ‘Internal/External’ Flow Set Mode Selection.

    【PRINT】

    (【ENT】)

    Print.

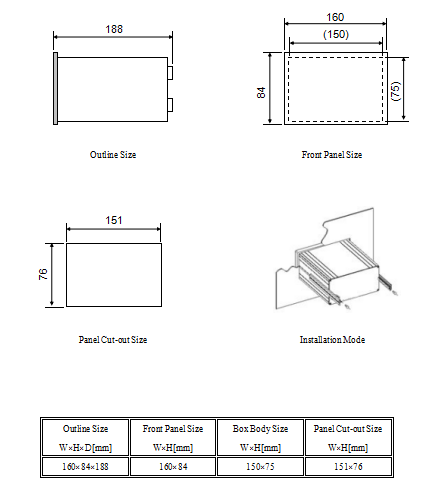

              Model Panel-mounting Installation

    High Arithmetic Speed Weigh Belt Feeder Controller , Digital Indicating Controller 3

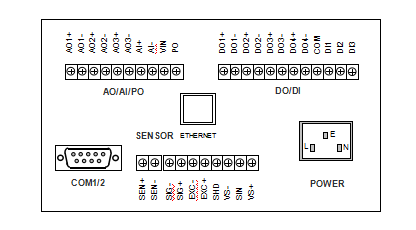

             Model Panel-mounting Terminal

    High Arithmetic Speed Weigh Belt Feeder Controller , Digital Indicating Controller 4
