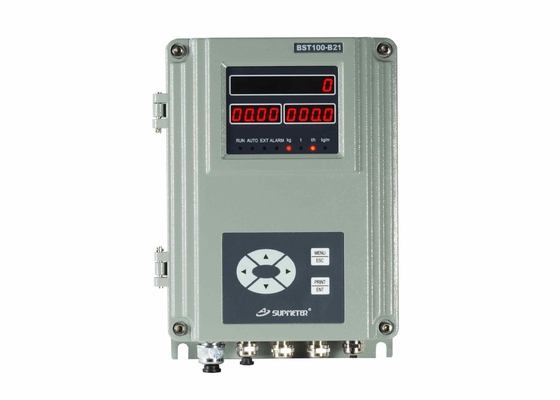

    Electronic Measure Batch Weighing Controller , Digital Display System And Indicators

    Belt Weighfeeder Controller For Belt Scale With Ration Flow Feeding Dust-proof



          Main Features:

    • Suitable for Ration Belt Weighfeeder with Ration Flow Feeding & Ration Weight Batch Control.
    • EMC design with high anti-jamming capability, suitable for industrial environment.
    • 32-bit ARM CPU with 72MHz & higher arithmetic speed.
    • 8+4+4 Red LED digital tubes for English character and digit display.
    • Optional English keypad, Simplified Chinese keypad and Complex Chinese keypad.
    • Menu&Shortcut mode operation with key tone.
    • 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 400Hz.
    • Broad-range speed pulse input circuit.
    • Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.
    • Max. Connection Quantity: 8 Loadcells (350Ω).
    • Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing functions available.
    • Auto Zero Tracking, Speed Calibration and Belt Length Calibration functions available.
    • One optional ‘Flow Setpoint’ analog signal input [AI: 4~20mA].
    • Max.3 definable ‘Flow/Control Current /…’ analog signal outputs [AO: 4~20mA].
    • Quick and steady PID ration feeding control.
    • 3 Definable normally open switch inputs [DI] and 4 definable normally open relay switch outputs [DO].
    • The feeder and belt weigher can be started and stopped by DI&DO signal.
    • 1 ‘Totalized Weight High-speed Pulse’ output [PO].
    • 2 Optional communication ports for connecting IPC/PLC, LED Remote Display, Serial Printer and Wireless Module.
    • Weight Records per shift/day/month of a year can be queried and printed.

    With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations.



    Electronic Measure Batch Weighing Controller , Digital Display System And Indicators 0



             Model Wall-mounting Operation Interface

    Electronic Measure Batch Weighing Controller , Digital Display System And Indicators 1



                 Keypad Operation

    If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 Calibration’ & ‘F6 Factory Adj.’, the controller will return to ‘Main Display Interface’ automatically.



    Menu Operation
    Key Name Description

    【MENU】

    【ESC】

    Enter Main Menu.

    Exit.

    【ENT】

    Enter.

    Save.

    【◄】 Cursor shifts left.
    【►】 Cursor shifts right.
    【▲】

    Cursor shifts up.

    Display the previous interface or option.

    Digit input: +1.

    【▼】

    Cursor shifts down.

    Display the next interface or option.

    Digit input: -1.

    Quick Operation

    【MENU】*

    (【LOCK】)

    • Key-locking.
    • Key-unlocking.

    【◄】

    (【ADJ+】)

    Control Current +1mA.

    【►】

    (【ADJ-】)

    Control Current -1mA.

    【◄】*

    (【AUTO】)

    ‘Manual/Auto’ Control Mode Selection.

    【►】*

    (【EXT】)

    ‘Internal/External’ Flow Set Mode Selection.

    【PRINT】

    (【ENT】)

    Print.



                           State Indication

    LED Lamp Description Note
    [RUN]

    ON: Weighing state.

    OFF: Stopping state.


    [AUTO]

    Feeding control mode:

    ON: Auto [PID].

    OFF: Manual.


    [EXT]

    Flow Set Mode:

    ON: External [AI: 4~20mA].

    OFF: Internal.


    [ALARM] Alarm.
    [kg] Weight Display Unit: kg.

    Display Panel A

    ([P107] Internal Scale Unit=kg)

    [t] Weight Display Unit: t.
    [t/h]

    Flow Display Unit

    ON: t/h.

    OFF: kg/min or kg/h.

    [kg/m] Load Display Unit: kg/m.
    [g] Weight Display Unit: g.

    Display Panel B

    ([P107] Internal Scale Unit=g)

    [kg] Weight Display Unit: kg.
    [kg/h]

    Flow Display Unit

    ON: kg/h.

    OFF: g/min or g/h.

    [g/m] Load Display Unit: g/m.
















































           Model Wall-mounting Installation

    Electronic Measure Batch Weighing Controller , Digital Display System And Indicators 2

            Ration Flow Auto-Feeding System

    Electronic Measure Batch Weighing Controller , Digital Display System And Indicators 3
