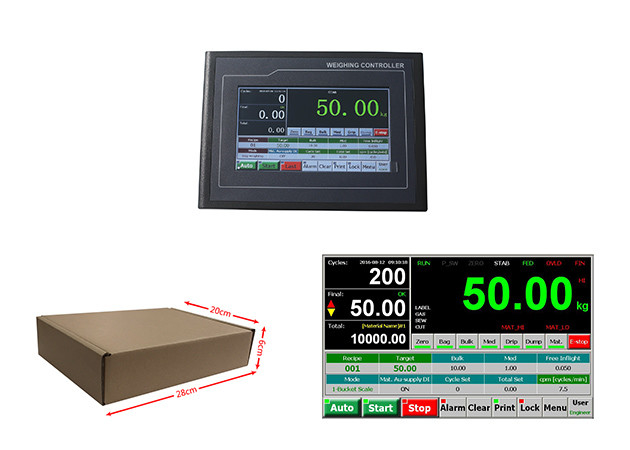

Ration Packing Scales Bagging Weighing Controller, With Touch Screen

Ration Packing Scales Bagging Weighing Controller, With Touch Screen

Product Details:

Place of Origin: China
Brand Name: SUPMETER
Certification: CE
Model Number: BST106-M10[AL]

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: 1pcs/box
Delivery Time: 1~10 working days
Payment Terms: T/T, Western Union, L/C, D/A, D/P
Supply Ability: 20000pcs per month
Get Best Price Contact Now

Detail Information

Customization: Available Application: Single Scale Mode
Verification Accuracy: 0.02% Static Weighing Accuracy: 0.2%~0.5%
Packing Accuracy: 0.2%~0.5% IP Grade: IP65
High Light:

Bagging Weighing Controller

,

Packing Scale Bagging Controller

,

Weighing Controller IP65

Product Description

Ration Packing Scales Bagging Weighing Controller, With Touch Screen

Loss-in-weight Ration Packing Scale Bagging Weighing Controller

Main Features

  • EMC design with high anti-jam for industrial environment.
  • DC24V power input with reverse polarity protection.
  • Cortex-A8 CPU with 600MHz Clock, 128M Flash.
  • 7” [800×480] or 10.2” [1024×600] TFT touch panel.
  • 24-bit ∑-△ADC with internal resolution 1/1,000,000.
  • High sampling frequency 800Hz.
  • Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
  • Auto Zero Tracking.
  • Fall Value Auto Correction.
  • Auto Pause for Deviation Alarm.
  • Auto Re-feed for Negative Deviation Alarm.
  • Target Batch Count & Target Batch Weight Control.
  • Definable DI/DO/AO/COM[Communication Port].
  • 3-speed[high/medium/low] feeding control by DOs or AOs.
  • Recipe Number: 100.

Main Application:

  • Single-weighing-hopper Ration Packing Scale.
  • Single-weighing-bag Ration Packing Scale.
  • Loss-in-weight Ration Packing Scale.

Ration Packing Scales Bagging Weighing Controller, With Touch Screen 0
Ration Packing Scales Bagging Weighing Controller, With Touch Screen 1
Ration Packing Scales Bagging Weighing Controller, With Touch Screen 2

Button Operation

NameOperationState IndicatorAuthorization
【Auto】Auto / Manual [Emergency Stop] switch.

Green: Auto state.
Grey: Manual state.

All Users
【Start】Start.

Green: Running state.
Grey: Stop state.

【Re-run】Clear Alarm & Recover Running.
【Stop】

Normal Stop [Last Batch].
Stop after the present batch finished.

Flashing Red.
【E-Stop】Emergency Stop.
【Alarm】

Alarm Query / Clear Alarm.
‘Auto/Pause’ state: Recover Running after alarms cleared.

Red: Alarm state.
【Print】

Report Print:

  • [ Auto Print]: Print Batch Records.
  • [Total]: Print Totalizing Report.
  • [Recipe]: Print Working Recipe.

【Lock】

Screen-locking: Locking/unlocking the operating buttons of main user interface.
Auto Screen-locking: Refer to parameter [901].

Flashing Red: Locked.
Grey: Unlocked.

【Menu】Enter Main Menu.
【User】User Login. Display: Operator / Engineer / Admin.
【Zero】Manual Zero [No Power-down Protection].Flashing green.
【Bag】Bag-clamp/release Request.

Green: Bag-clamping state.
Grey: Bag-releasing state.

【Bulk】Manual Start/Stop Bulk Feed.Green: Working state.
【Med】Manual Start/Stop Medium Feed.
【Drip】Manual Start/Stop Dribble Feed.
【Dump】Manual Start/Stop Dumping.
【Mat.】Manual Start/Stop Supplying Materials into Feeding Bin.Flashing green.
【Clear】Clear Screen: Clear the display values of Feeding Weight, Totalized Weight, Batch Count and Cycle Speed.

Engineer
Administrator


User Login Interface
1-Bucket Scale & 1-Bag Scale:
Ration Packing Scales Bagging Weighing Controller, With Touch Screen 3

Loss-in-weight Scale:
Ration Packing Scales Bagging Weighing Controller, With Touch Screen 4

System Diagram for APP1 1-Bucket Scale
Ration Packing Scales Bagging Weighing Controller, With Touch Screen 5

How long is the warranty period?
The warranty period for our products is 12 (twelve) months.
If the products from SUPMETER are proved to be unable to work normally due to unartificial reasons, and the problems can't be solved by customers under the technical support from SUPMETER, then customers can send the problematic items back to SUPMETER. SUPMETER is RESPONSIBLE to MEND (or REPLACE when necessary) them FREE OF CHARGE.
(Note: if after checking, the returned goods are proved to be in good condition, the trouble is resulted to be caused by improper operation by customers, SUPMETER is IRRESPONSIBLE to bear the shipping & other charges related to the returning.)
