Touch Screen Automatic High Speed Bagging Controller, Weight Packing Indicator
Product Details:
| Place of Origin: | China |
| Brand Name: | Supmeter |
| Certification: | CE |
| Model Number: | BST106-M10(AL) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | 226-286usd/pcs |
| Packaging Details: | 1pcs into 1 box |
| Delivery Time: | 1-3days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000pcs/week |
|
Detail Information |
|||
| Power Supply: | DC24V | Product Name: | TFT-Touch Packing Controller |
|---|---|---|---|
| Product Size: | 226.5*163*36mm | Display: | TFT Touch Screen |
| MOQ: | 1pcs | Model No.: | BST106-M10(AL) |
| Speed: | 16bags/Min | ||
| High Light: | Touch Screen Bagging Indicator,High Speed Bagging Indicator,Automatic Bagging Indicator |
||
Product Description

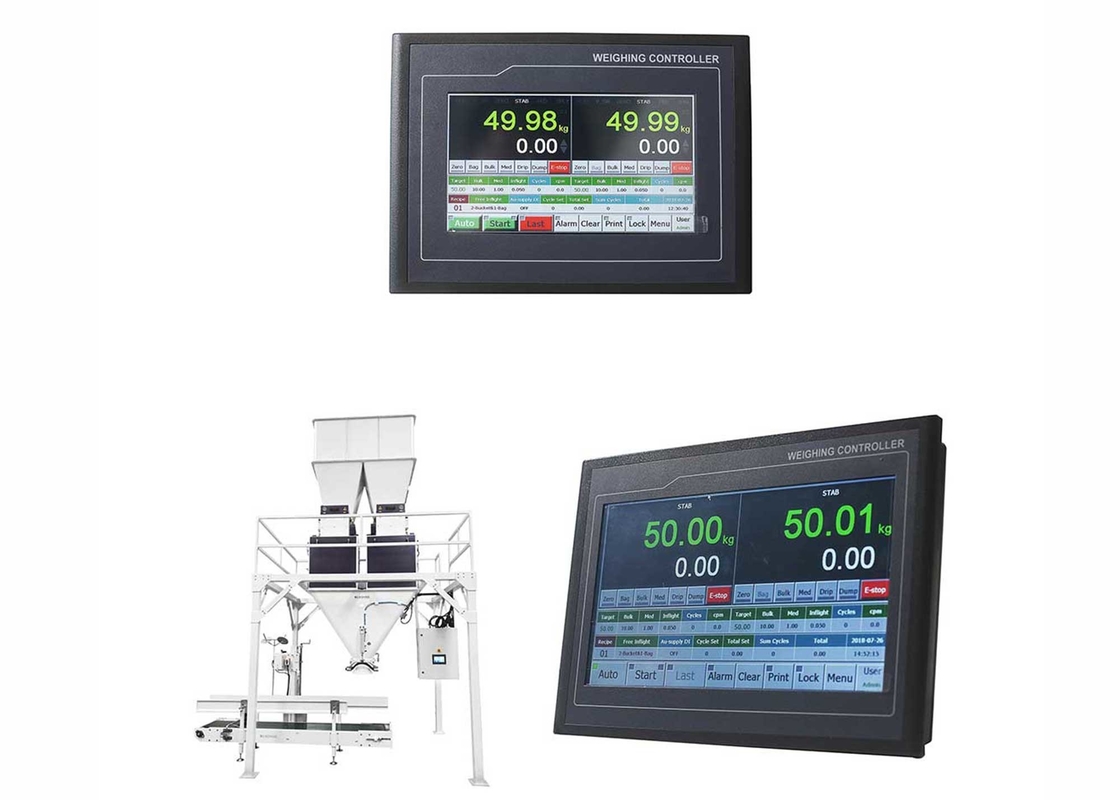

Touch Screen Automatic High Speed Bagging Controller, Weight Packing Indicator
Touch Screen Automatic High Speed Bagging Controller, Weight Packing Indicator
Operation Interface of User Login
| Name | Operation | Note |
| 【Login】 |
User Login. Exfactory Passwords:
|
Operation ‘Main Menu / F5 User / Password / PSW Set’ for Modifying Password. |
| 【User Name】 | After password inputted, the matching User Name will be displayed. |
|
| 【Operate】 | Enter ‘Main User Interface’. |
Operation ‘Main Menu / F5 User / Password / Login [Logoff]’ for Re-login and Logoff.
|
Main Features:
- Suitable for Ration Packing Scale with optional modes 1-Bucket Scale, 1-Bag Scale, 2-Bucket Scale[1-Bag] , 2-Bucket Scale[2-Bag] and 2-Bag Scale.
- EMC design with high anti-jamming capability, suitable for industrial environment.
- Cortex-A8 CPU with 600MHz Clock, 128M RAM and 128M Flash.
- 7”/10.2” Ultralight and ultrathin TFT touch screen with embedded weighing/control module.
- Loadcell Interface
- 2 Loadcell ports. Max. Connection Quantity: 2×8 Loadcells (350Ω).
- 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 800Hz.
- Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.
- I/O Interface
- 9 Definable normally open switch inputs [DI] and 12/18 definable normally open transistor switch outputs [DO].
- Optional ‘Bulk/Medium/Dribble Feed’ DOs for feeding control. Optional Continuous and Jogging Dribble Feed Methods.
- 2 Optional&definable analog signal AO[0~10V] for weight signal output or ‘Bulk/Medium/Dribble Feed’ control.
- Digital Communication Interface
- COM1[RS232]&COM2[RS485] for connecting Host IPC/PLC and LED Remote Display.
- COM[RS232] for connecting RS232 Serial Printer.
- USB1 for connecting USB mouse, downloading HMI software from U-disk and copying data to U-disk.
- LAN: Optional Ethernet port.
- Software Function
- Manual Screen-locking/Screen-unlocking, Auto Screen-locking, Digital Setting&Calibration and I/O Testing functions available.
- Zero Upon Power Up, Zero Auto-tracking, Manual/Auto Zero and Zero Calibration available.
- Load Calibration and Loss Calibration functions available.
- 100 Recipes for packing control.
- Optional ‘Auto Correct Inflight’ function.
- Optional ‘Pause for Tolerance Alarm’ and ‘Auto Dribble Re-feed’ functions.
- Optional ‘Batch Target Control’ function [With Batch Count Target or Batch Weight Target finished, the packing process will stop automatically].
- Optional ‘Flow Control’ function for Bucket Scale.
- The Batch Records can be printed automatically.
- Historical Batch Records, Totalizing Reports and Recipes can be queried and printed.
- With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations.
Button Operation
| Name | Operation | State Indicator | Authorization |
| 【Auto】 | Auto / Manual [Emergency Stop] switch. |
Green: Auto state. Grey: Manual state. |
All Users |
| 【Start】 | Start. |
Green: Running state. Grey: Stop state. |
|
| 【Re-run】 | Clear Alarm & Recover Running. | ||
| 【Stop】 |
Normal Stop [Last Batch]. Stop after the present batch finished. |
Flashing Red. | |
| 【E-Stop】 | Emergency Stop. | ||
| 【Alarm】 |
Alarm Query / Clear Alarm. ‘Auto/Pause’ state: Recover Running after alarms cleared. |
Red: Alarm state. | |
| 【Print】 |
Report Print:
|
||
| 【Lock】 |
Screen-locking: Locking/unlocking the operating buttons of main user interface. Auto Screen-locking: Refer to parameter [901]. |
Flashing Red: Locked. Grey: Unlocked. |
|
| 【Menu】 | Enter Main Menu. | ||
| 【User】 | User Login. Display: Operator / Engineer / Admin. | ||
| 【Zero】 | Manual Zero [No Power-down Protection]. | Flashing green. | |
| 【Bag】 | Bag-clamp/release Request. |
Green: Bag-clamping state. Grey: Bag-releasing state. |
|
| 【Bulk】 | Manual Start/Stop Bulk Feed. | Green: Working state. | |
| 【Med】 | Manual Start/Stop Medium Feed. | ||
| 【Drip】 | Manual Start/Stop Dribble Feed. | ||
| 【Dump】 | Manual Start/Stop Dumping. | ||
| 【Mat.】 | Manual Start/Stop Supplying Materials into Feeding Bin. | Flashing green. | |
| 【Clear】 | Clear Screen: Clear the display values of Feeding Weight, Totalized Weight, Batch Count and Cycle Speed. |
Engineer Administrator |
