640×480 TFT Screen DC24V Shovel Loader Indicator
Product Details:
| Place of Origin: | China |
| Brand Name: | SUPMETER |
| Certification: | CE |
| Model Number: | BST106-N59[B] |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Packaging Details: | 1set/carton |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 200sets per month |
|
Detail Information |
|||
| Material: | Stainless Steel | Operating Voltage: | DC24V±20% |
|---|---|---|---|
| Display: | 640×480 TFT Color Display Screen For English, Simplified/Complex Chinese Character Display | Operating Temperature: | -20℃~+40℃ |
| Max. Power Consumption: | 10W | Outline Size: | 168×213×50mm [W×H×D] |
| Protection Level: | IP65 | ||
| High Light: | DC24V Shovel Loader Indicator,10W Shovel Loader Indicator,640×480 TFT Screen Loader Scale |
||
Product Description
640×480 TFT Screen DC24V Shovel Loader Indicator
High Precision hot sale Electronic Weighing Scales Wheel Loaders Scales electronic weight indicator

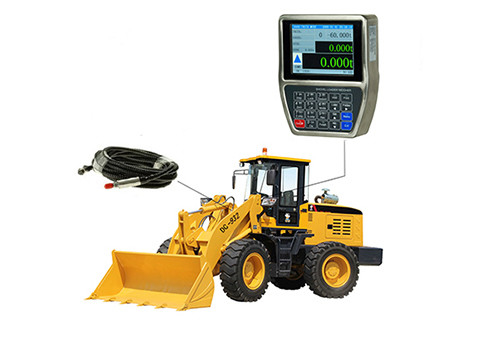

Wheel Loader Weigher is a dynamic weighing and auto-totalizing equipment installed on wheel loader.
When the lift-arm of wheel loader lifted to a certain height, the position sensor will trigger the weighing process, and the weighing indicator will collect the oil pressure signal from lower and upper oil chambers of arm-lifting oil cylinder. After signal processing and compensating, Single-bucket-loading -weight will be got and totalized to Totalized Loading Weight automatically. The operator can judge if the present Single-bucket-loading-weight is valid according to the alarm messages, and confirm the last bucket's loading weight according to the negative deviation value.

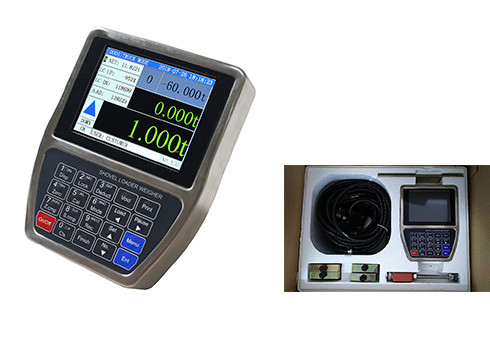

Each set contain:
1 Weighing indicator with thermal printer.

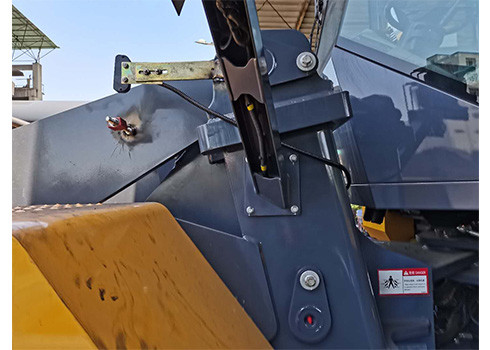

1 Position sensor.

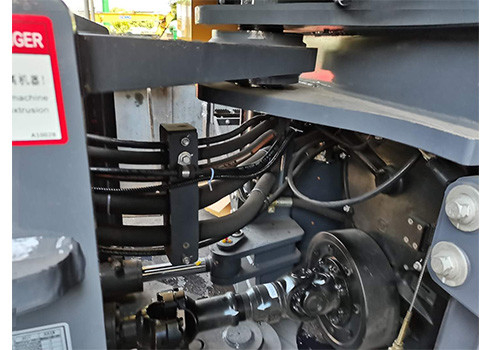

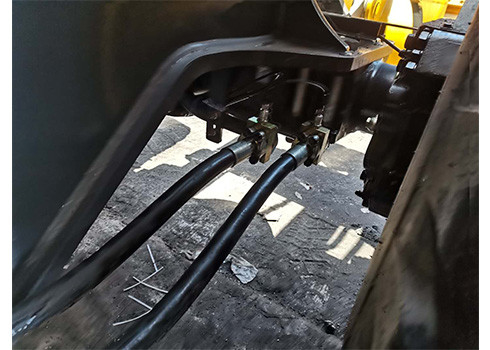

2 Oil pressure sensors.
2 Plate type three-way joints.
1 Mounting fitting
