DC24V LED Loadcell Transuducer Digital Weight Indicator Force Measuring Controller

DC24V LED Loadcell Transuducer Digital Weight Indicator Force Measuring Controller

Product Details:

Place of Origin: China
Brand Name: Supmeter
Certification: CE
Model Number: BST106-B60S(L)

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: 30-50usd/pcs
Packaging Details: 1pcs/box
Delivery Time: 1-3days
Payment Terms: T/T, L/C
Supply Ability: 1000pcs/day
Get Best Price Contact Now

Detail Information

Power Supply: DC24V COM1: RS232
COM2: RS485 Outline Size: 107*60*100mm
Loadcell: 8 Loadcell Connectable 350ohm Product Name: Mini Weighing Controller BST106-B60S(L)
High Light:

digital weighing controller

,

programmable weighing controller

Product Description

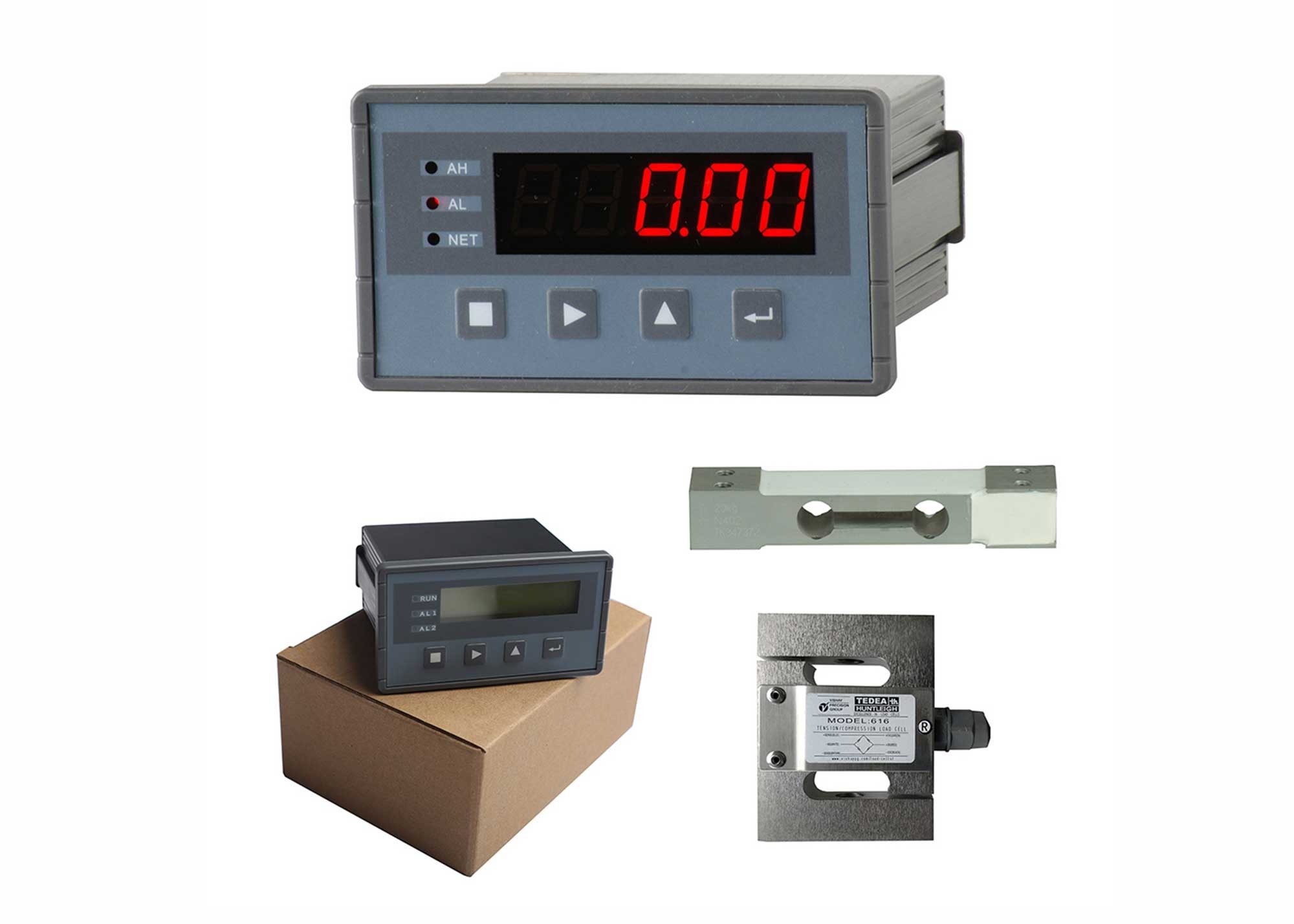

DC24V LED Loadcell Transuducer Digital Weight Indicator Force Measuring Controller

High Accuracy DC24V LED Loadcell Transuducer Weighing Force Measuring Controller, 5 Digital Weight Indicator



Main Applications

  1. Weight/Force Display.
  2. Peak Value Detection / Display Holding.
  3. Weight/Force Signal AO/Digit Transmission.
  4. Setpoint DO Output.
  5. Weight/Force Limit DO Alarm Mode.
  6. Weight/Force Increment DO Output Mode.
  7. Weight/Force Decrement DO Output Mode.
  8. Weight/Force Section DO Output Mode.
Power Supply DC24V±20%
Display 5 Red Led Digital Tubes for English&Digit Display
Sampling Frequency 1280Hz
A/D Convert 24-bit
Keypad 4 keys for Shortcut mode operation with key tone
Excitation Voltage Output of Loadcell DC5V
Max. Connection number of Loadcell 8 Loadcells (350Ω)
[mV]Signal Input Range 0-19.5mV
DO 2 Normally Open Transistor Switch Outputs
AO 1Analog Signal Output: 4~20mA.
Communication Port COM1:RS232;COM2:RS485

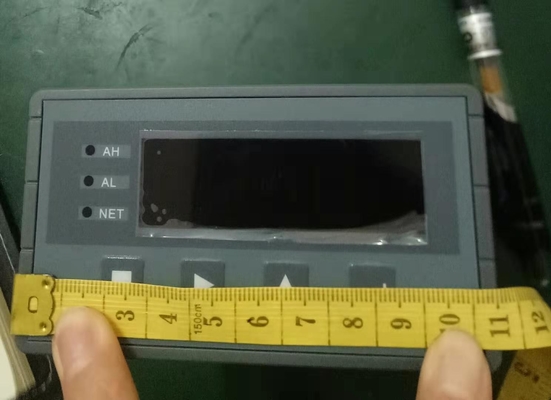

Outline Dimension 107 × 60 × 100 mm (W×H×D)
Net Weight Approx. 1.2kg
IP Grade IP65
Verfication Accuracy 0.03%
Static Weighing/Force Measuring Accuracy 0.2%~.5%

DC24V LED Loadcell Transuducer Digital Weight Indicator Force Measuring Controller 0

DC24V LED Loadcell Transuducer Digital Weight Indicator Force Measuring Controller 1



Main Features

1 EMC design with high anti-jam for industrial environment.
2 DC24V power input with reverse polarity protection.
3 32-bit ARM CPU with 48MHz clock & high arithmetic speed
4 5 Red LED digital tubes for English&digit display.
5 24-bit ∑-△ADC with internal resolution 1/1,000,000.
6 High sampling frequency 1280Hz.
7 Optional Special Anti-vibration Digital Filtering Algorithm for
precise weighing, stable display and rapid response.
8 Auto Zero Tracking.
9

Load Calibration, Data Calibration & Segmenting Correction.Definable AO/COM[Communication Port].





Model Panel-mounting Operation Interface

DC24V LED Loadcell Transuducer Digital Weight Indicator Force Measuring Controller 2



Installation

DC24V LED Loadcell Transuducer Digital Weight Indicator Force Measuring Controller 3



Delivery

DC24V LED Loadcell Transuducer Digital Weight Indicator Force Measuring Controller 4
