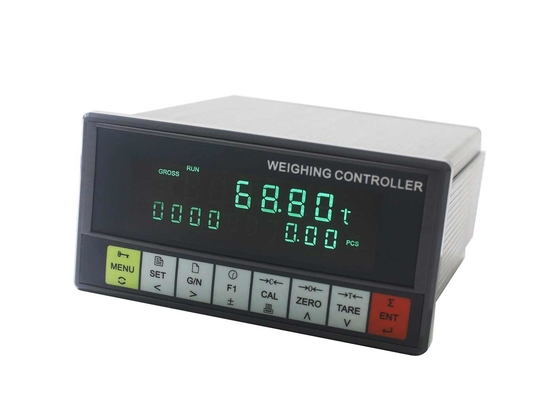

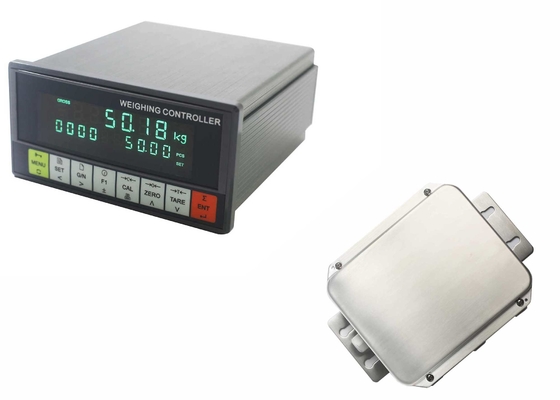

Ration Smart Load Batch Controller

Ration Smart Load Batch Controller

Product Details:

Place of Origin: China
Brand Name: Supmeter
Certification: CE
Model Number: BST106-H18[E]

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: carton
Delivery Time: 3workdays
Payment Terms: Western Union, T/T
Supply Ability: 10000pcs/month
Get Best Price Contact Now

Detail Information

Power Supply: AC85-264V Material: Steel
Verfication Accuracy: 0.02% Verification Accuracy: III
Max. Connection Number Of Loadcell: 8 Loadcells (350Ω) Communication Port: COM1:RS232; COM2:Optional RS232/RS485/RS422/Profibu-DP/Ethernet
High Light:

totalizer meter

,

digital indicator with remote display

Product Description

Ration Smart Load Batch Controller

VFD Display Ration Batching Controller With 8-Material Digital Scale Indication



Main Application:

H18[F]: 5-material Ration Batching Scale.

H18[E]: 8-Material Ration Batching Scale.





Main Features:

1:32-bit ARM CPU with 72MHz clock and high arithmetic speed.

2: Auto Zero Tracking

3: Fall Value Auto Correction

4: Target Batch Count Control

5: Auto Pause for Gross Weight Upper Limit and Deviation Alarm

6: Increment/Loss-in-weight Ration Feeding

7: Loss-in-weight Ration Dumping

8: Ant-Vibration Digital Filter

9:2- speed[high/low] Precise Feeding Control by DOs and AOs





Technical Specifications:

1.Executing Standard

  • CMC GB/T 7724-2008PRC National Standard.
  • OMIL R76: 2006International Recommendation.
  • Accuracy Grade: III.
  • Verification Accuracy: 0.02%.
  • Static Weighing Accuracy: 0.2%~0.5%.
  • Batching Accuracy: 0.2%~0.5%.

2.Display

  • 6+10 Green VFD digital tubes for English character and digit display.
  • Weight Display Range: -99,999~+999,999.
  • Scale Capacity: Setting Range 1~999,999.
  • Scale Division: Optional 1, 2, 5, 10, 20, 50, 100, 200, 500.
  • Display Resolution: 1/100,000.
  • Weight Unit: Optional kg, t, g, none.
  • Decimal Point: Optional 0, 0.0, 0.00, 0.000, 0.0000.
  • Display Refreshing Time: Setting Range 0.01~1.00s.

3.Kaypad

  • 8-key English keypad.
  • Menu&Shortcut mode operation with key tone.

4.Loadcell Interface

  • Excitation Voltage/Max. Current: DC10V/250mA [8-350Ω loadcells].
  • Signal Input Range: 0~25mV.
  • Output Sensitivity of Loadcell: 1.0~2.5mV/V.
  • 24-bit ∑-△ADC with internal resolution 1/1,000,000.
  • Sampling Frequency: 400Hz.
  • Special anti-vibration digital filtering algorithm.
  • Zero Drift: ±0.1μV/℃ RTI (Relative to Input).
  • Gain Drift: ±5ppm/℃.
  • Non-linearity: 0.005%FS.



5.Switch/Analog Signal Interface

  • 7 Normally Open Switch Inputs [DI].
  • 12 Normally Open Transistor Switch Outputs [DO]: DC24V, 500mA.
  • 1 Optional&Definable Analog Signal Output [AO]: 4~20mA, Non-linearity: 0.05%FS.



6.Digital Communication Interface

  • COM1: RS232.
  • COM2 Optional: RS232/RS485/RS422/Profibus-DP/Ethernet modules.
  • Connectable: Host IPC/PLC, LED Remote Display, Serial Printer and Wireless Module.



7.Report Print

  • The present Batch Record can be printed automatically and manually.
  • 500 Historical Batch Records, Totalizing Reports and Recipes can be queried and printed.



Operating Specification

      Optional Operating Voltage

  • Operating Voltage 1: DC24V±20%.
  • Operating Voltage 2: AC85~264V, 50/60Hz.
  • Operating Voltage 3: AC220V±15%, 50/60Hz.
  • Free to configure one of them.

Max. Power Consumption: 10W.

   Outline Size

  • Model Panel-mounting: 164×82×188mm [W×H×D].
  • Model Explosion-proof: 340×390×205mm [W×H×D]

  Panel Cut-out Size

  • Model Panel-mounting: 153×77mm [W×H].

Operating Temperature: -25℃ to +45℃.

Storage Temperature: -30℃ to +60℃.

Relative Humidity: Max. 85%RH.

Application Environment of Model Explosion-proof

  • Explosion gas environment: Zone 1&2.
  • Classes of explosion gas mixture: IIA, IIB.
  • Temperature grades of explosion gas mixture: T1~T6.
  • Ex-mark: Ex d IIB T6 Gb.

Protection Level

  • Front Panel of Model Panel-mounting: IP65.
  • Model Explosion-proof: IP65.



Weight

  • Model Panel-mounting: Approx. 1.6kg.
  • Model Explosion-proof: Approx. 19.2kg.



VFD Display Ration Batching Controller with 8-Material Digital Scale Indication

Ration Smart Load Batch Controller 0

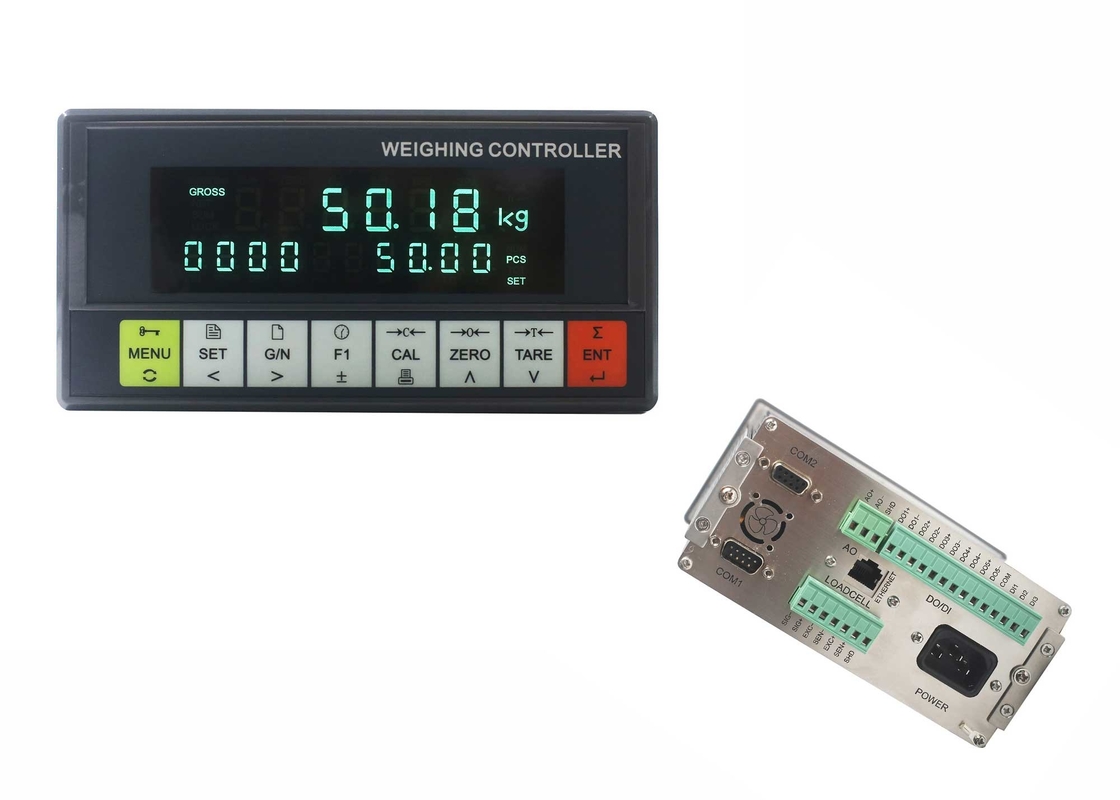

Model Panel-mounting Operation Interface:

Ration Smart Load Batch Controller 1

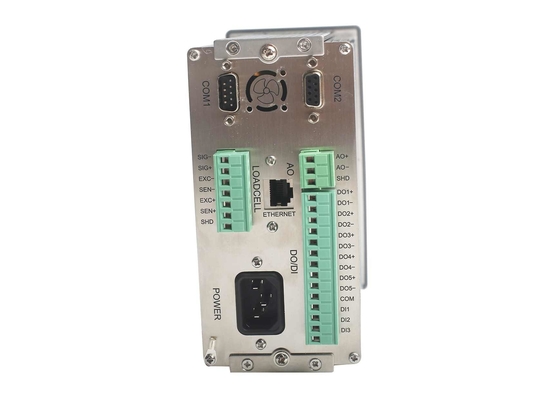

Installation:

Ration Smart Load Batch Controller 2



System Diagram for M1~M5 Ration Batching System:

Ration Smart Load Batch Controller 3





Package:

Ration Smart Load Batch Controller 4
